Exploded View With Torque Specifications

Electric Steering Column

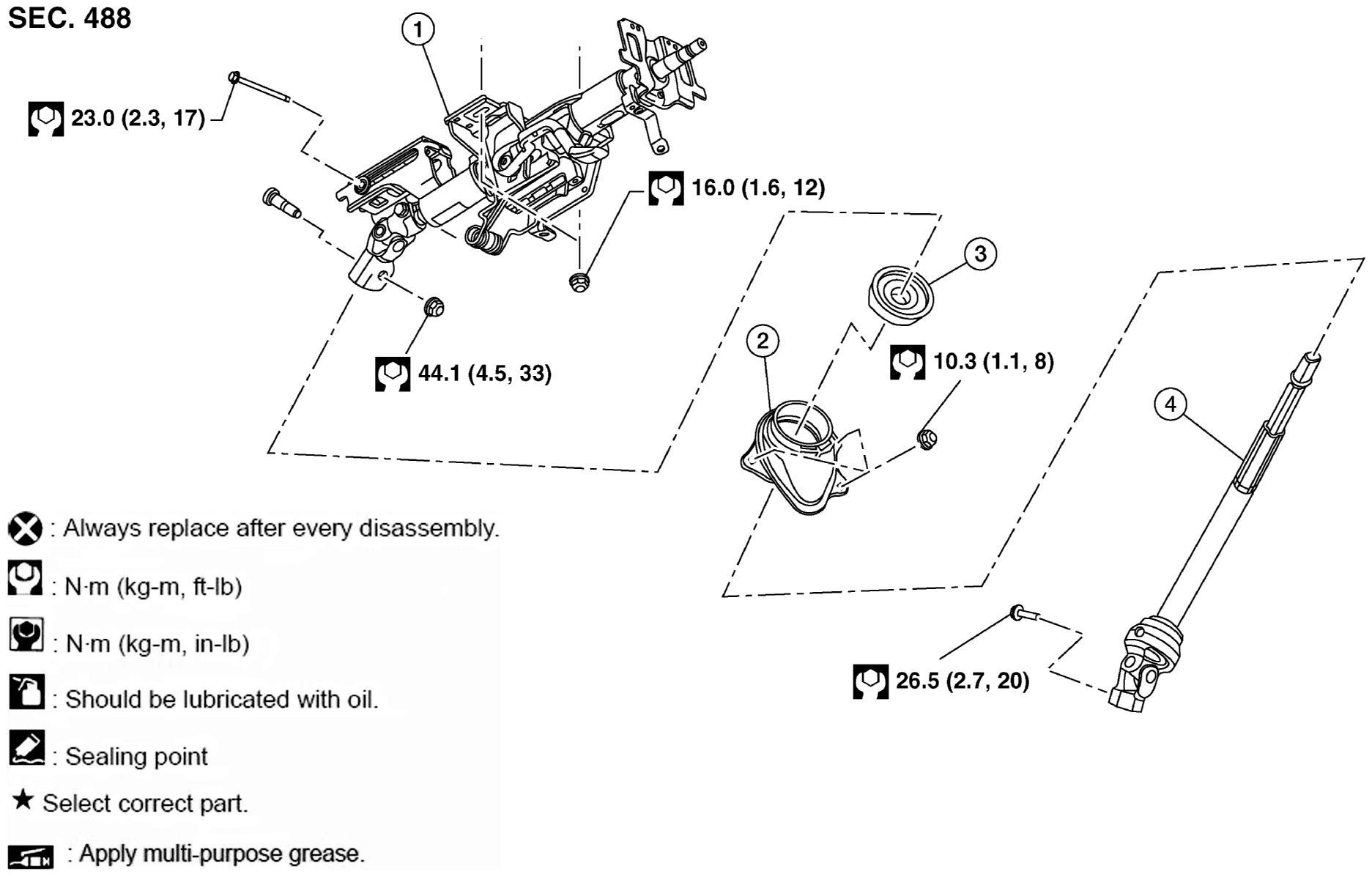

Fig 1: Exploded View Of Electric Steering Column With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering Column	2.	Hole Cover	3.	Lower Boot
4.	Steering Intermediate Shaft

Mechanical Steering Column

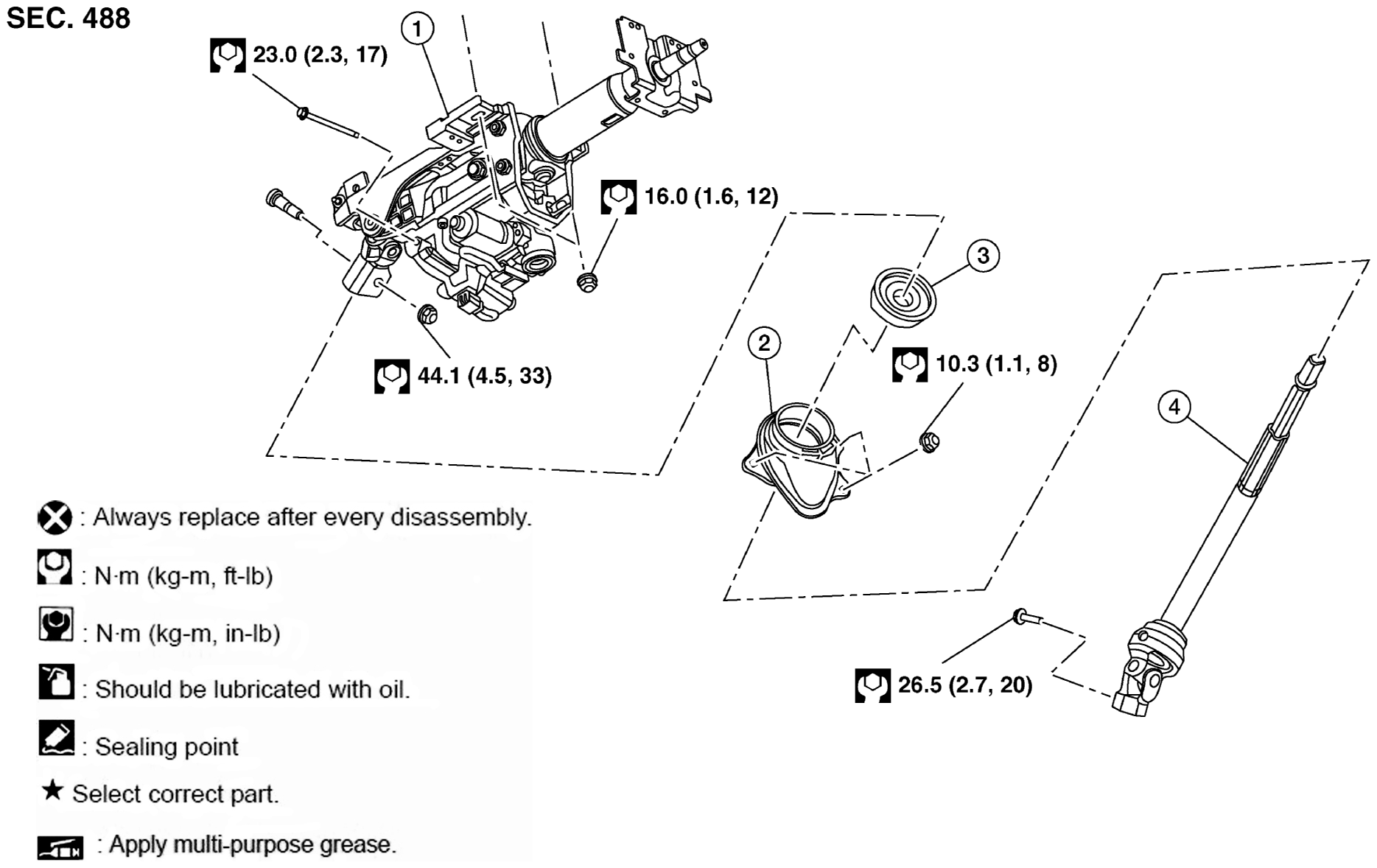

Fig 2: Exploded View Of Mechanical Steering Column With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering Column	2.	Hole Cover	3.	Lower Boot
4.	Steering Intermediate Shaft
