Door Locks
›
Security Control System
›
System Description
›
System
›
Intelligent Key System/Engine Start Function
›
Circuit Diagram
Circuit Diagram

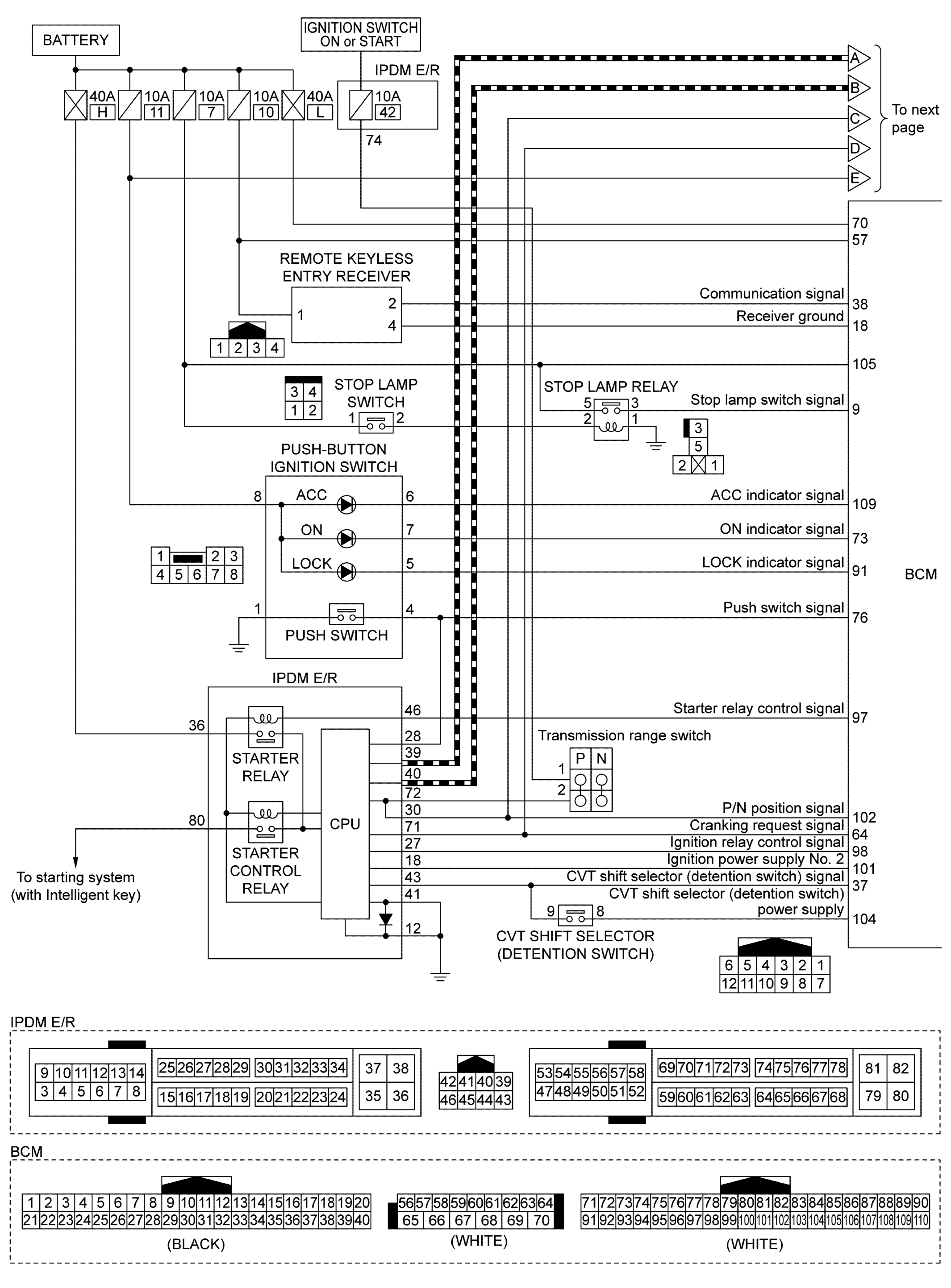

Fig 1: Intelligent Key System/Engine Start Function Circuit Diagram (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Intelligent Key System/Engine Start Function Circuit Diagram (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
