Exploded View With Torque Specifications

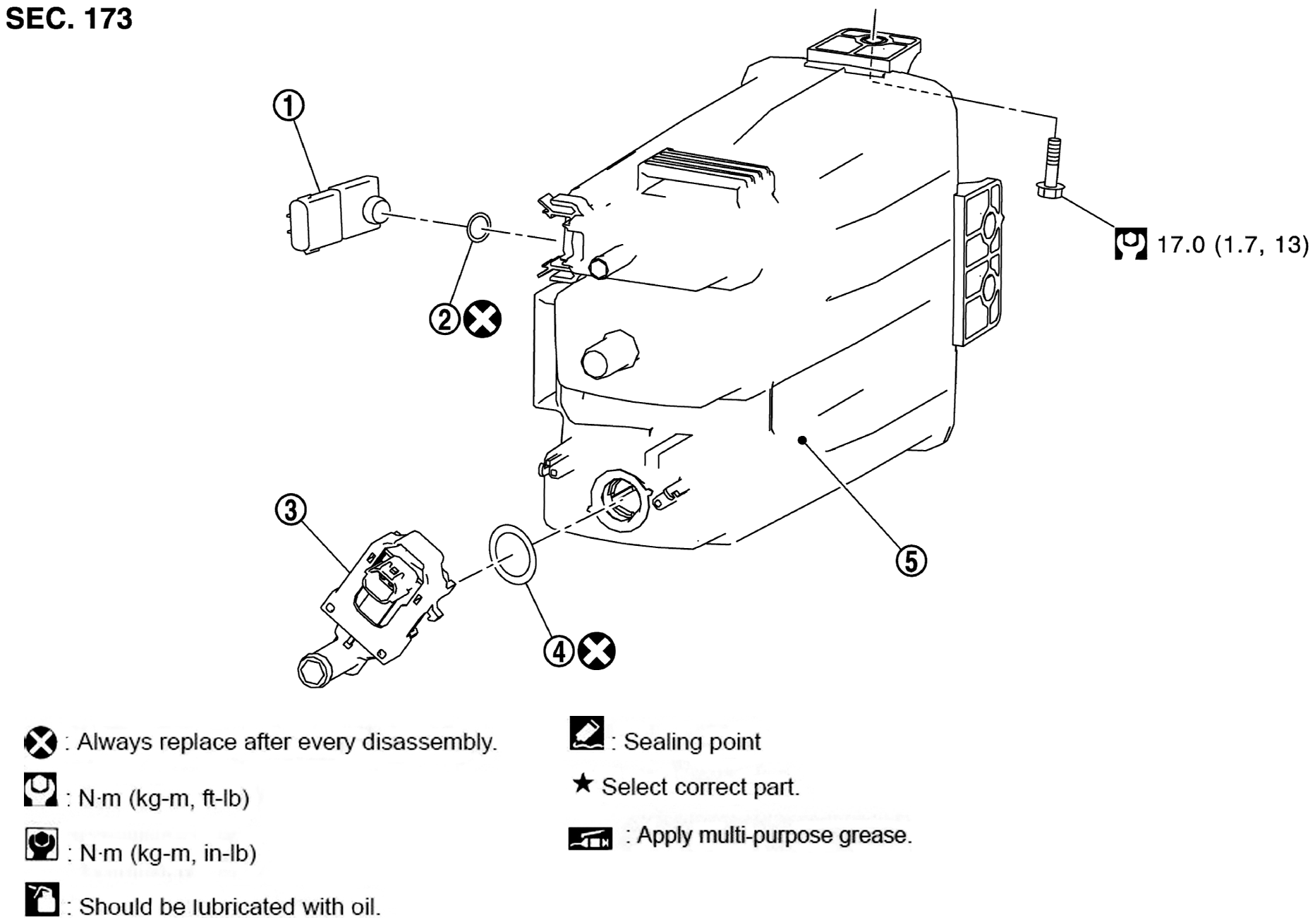

Fig 1: Exploded View Of EVAP Canister With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP Control Pressure Sensor	2.	O-ring	3.	EVAP Canister Vent Control Valve
4.	O-Ring	5.	EVAP Canister
: N•m (kg-m, ft-lb)
: Always replace after every disassembly.
