Exploded View With Torque Specifications

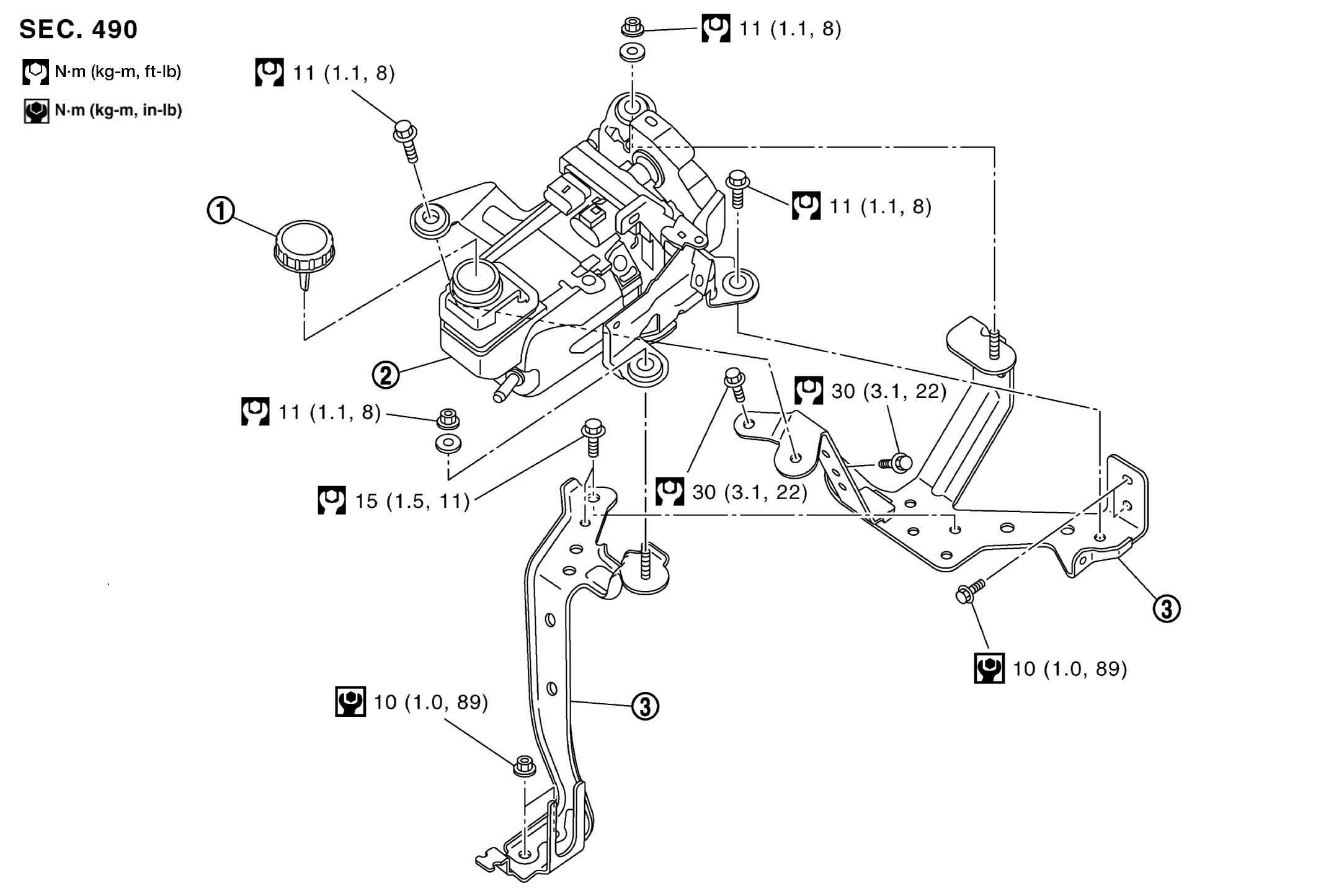

Fig 1: Exploded View Of Power Steering Oil Pump With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Reservoir Cap	2.	Power Steering Oil Pump Assembly	3.	Bracket
: N.m (kg-m, in-lb)
: N.m (kg-m, ft-lb)
: Always replace after every disassembly.
