Engine Control System (Introduction)
›
System Description
›
System
›
Engine Control System
›
Circuit Diagram
Circuit Diagram

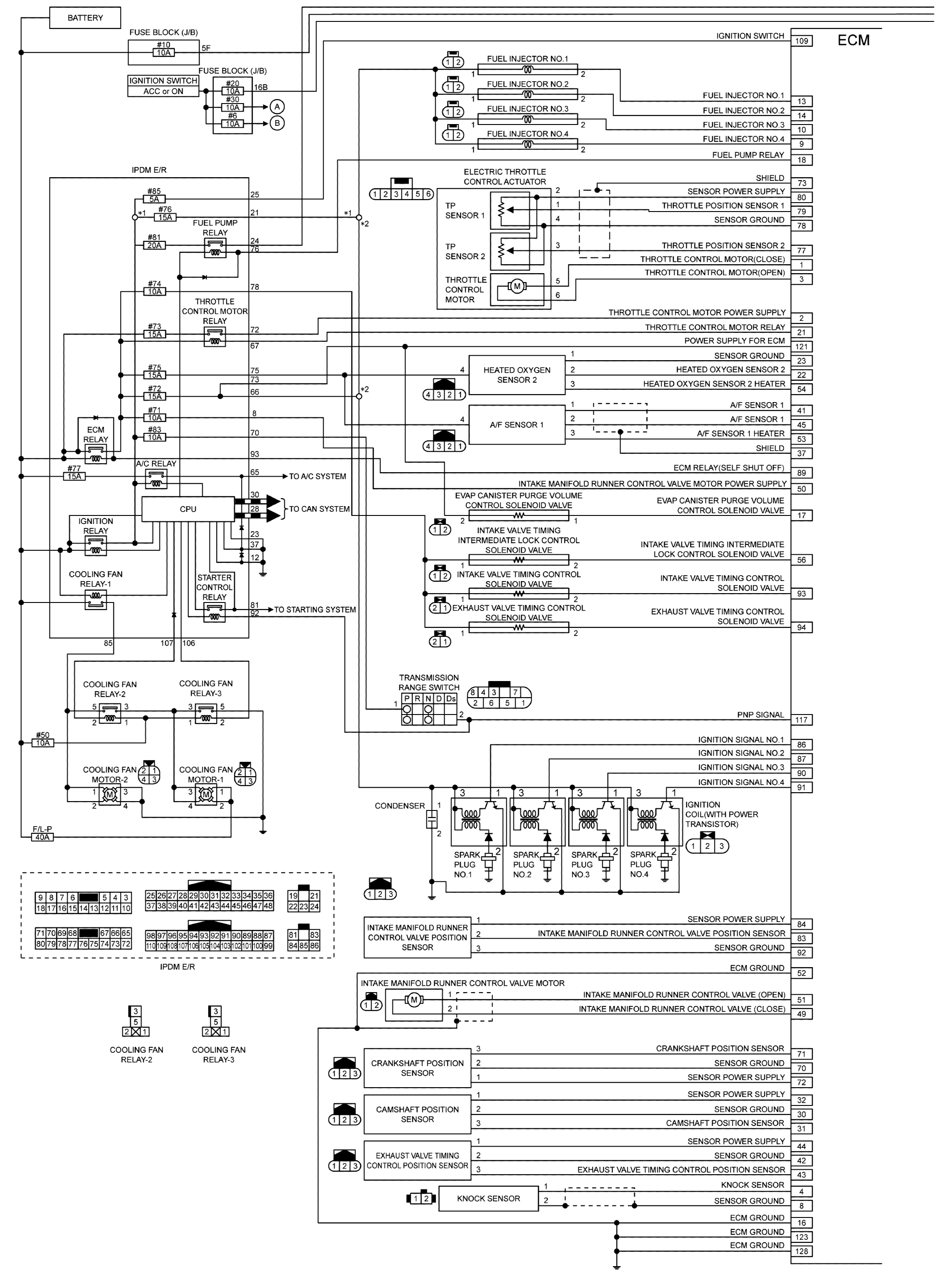

Fig 1: Engine Control System Wiring Diagram and Connector End View (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

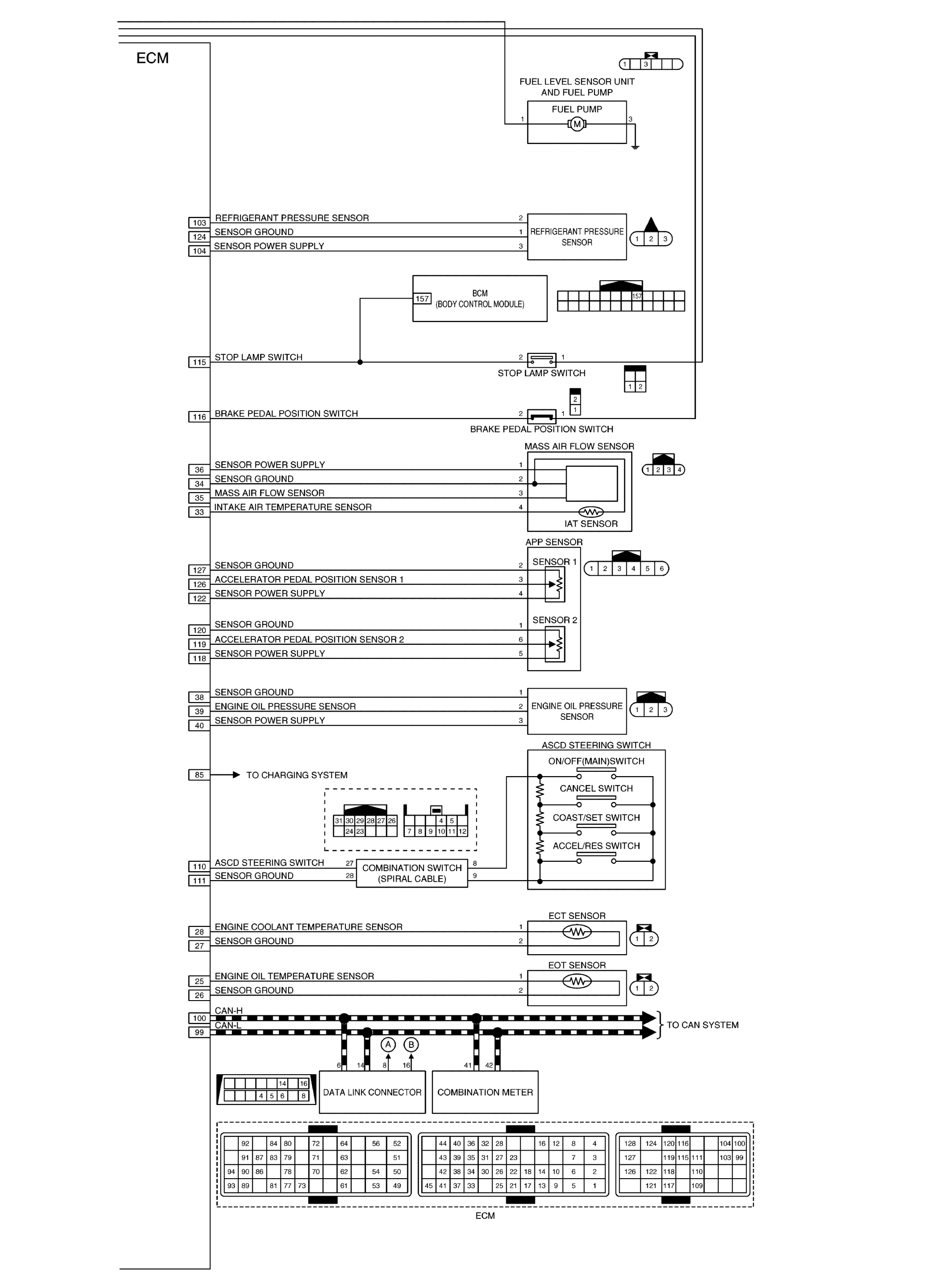

Fig 2: Engine Control System Wiring Diagram and Connector End View (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
