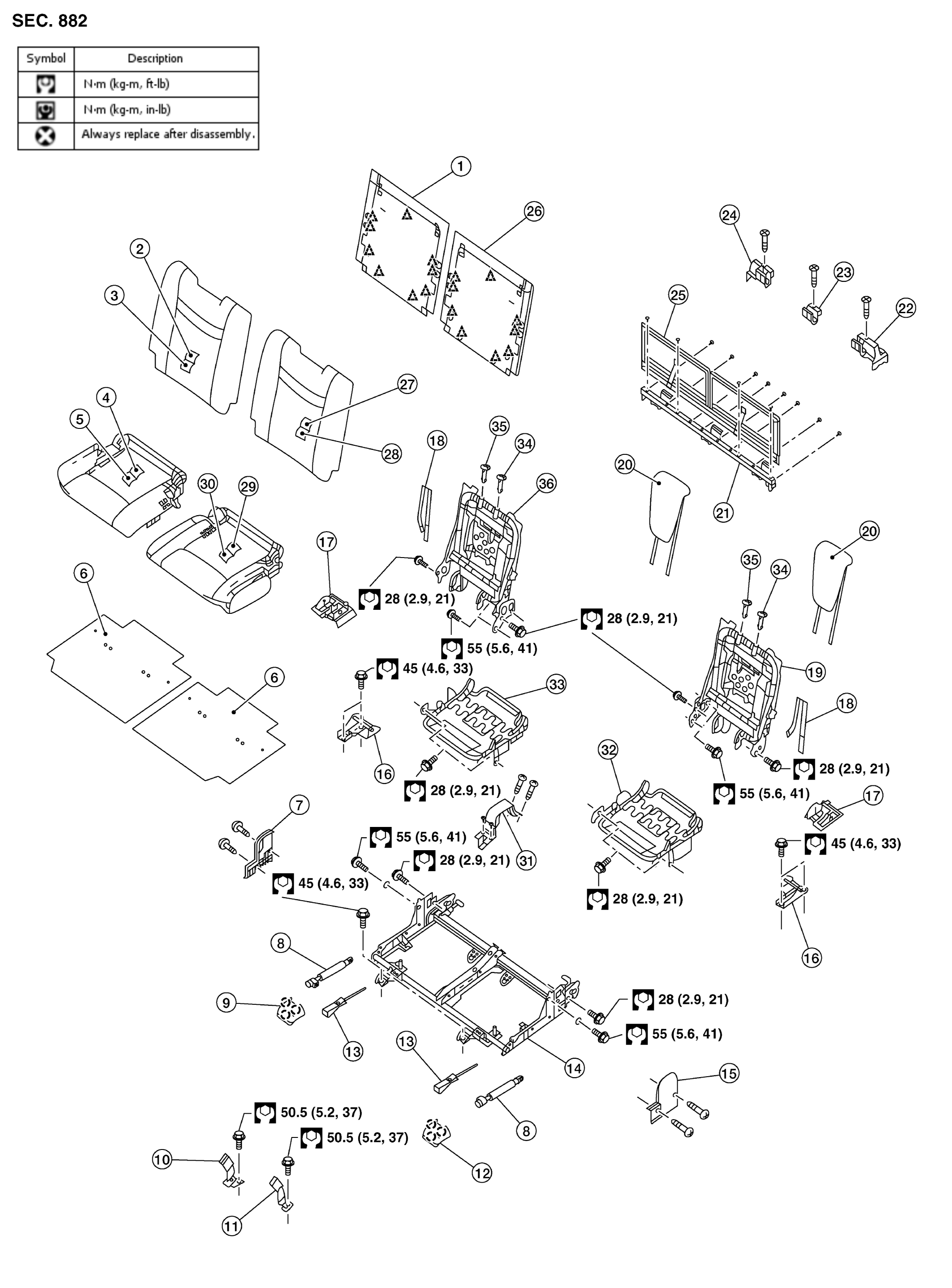

| 1. |
Seatback board (RH) |
2. |
Seatback trim (RH) |
3. |
Seatback pad (RH) |
| 4. |
Seat cushion trim (RH) |
5. |
Seat cushion pad (RH) |
6. |
Seat cushion silencer (LH/RH) |
| 7. |
Seat hinge finisher (RH) |
8. |
Gas stay |
9. |
Bolt cover (RH) |
| 10. |
Seat belt buckle (RH) |
11. |
Seat belt buckle (LH) |
12. |
Bolt cover (LH) |
| 13. |
Stopper pin |
14. |
Seat frame support |
15. |
Seat hinge finisher (LH) |
| 16. |
Seat striker (LH/RH) |
17. |
Seat striker finisher (LH/RH) |
18. |
Seatback pull strap (LH/RH) |
| 19. |
Seatback frame (LH) |
20. |
Headrest (LH/RH) |
21. |
Third row seat cross member |
| 22. |
Third row seat cross member finisher (LH) |
23. |
Third row seat cross member finisher (center) |
24. |
Third row seat cross member finisher (RH) |
| 25. |
Third row luggage floor |
26. |
Seatback board (LH) |
27. |
Seatback trim (LH) |
| 28. |
Seatback pad (LH) |
29. |
Seat cushion trim (LH) |
30. |
Seat cushion pad (LH) |
| 31. |
Seat frame finisher (center) |
32. |
Seat cushion frame (LH) |
33. |
Seat cushion frame (RH)) |
| 34. |
Headrest holder (locked) |
35. |
Headrest holder (free) |
36. |
Seatback frame (RH) |
 |
Clip |
 |
Pawl |
|
|
