Exploded View With Torque Specifications

DRIVER POWER SEAT

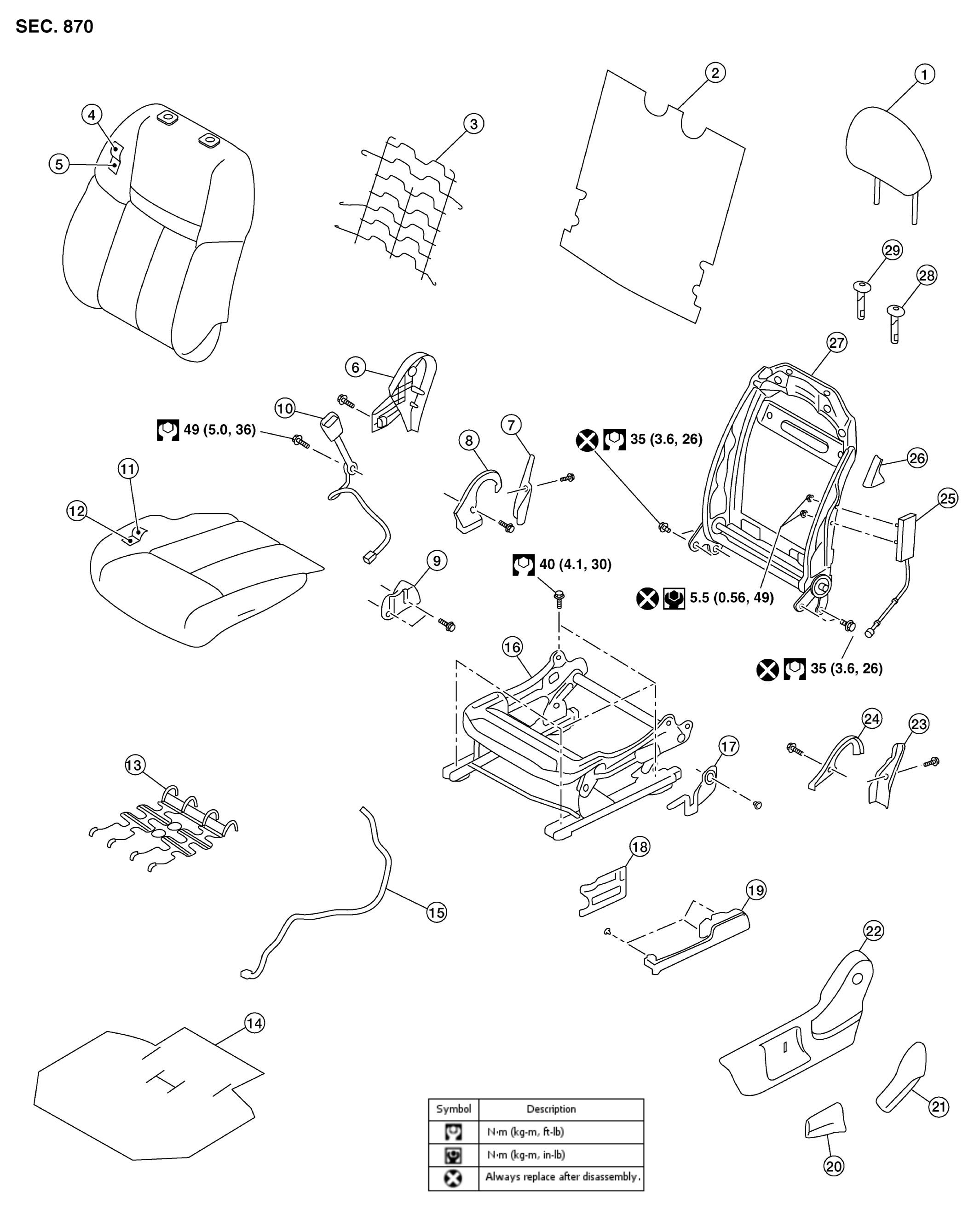

Fig 1: Exploded View Of Front Seat With Torque Specifications (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headrest	2.	Seatback support	3.	Seatback board
4.	Seatback heater (if equipped)	5.	Seatback trim	6.	Seatback pad
7.	Seat cushion outer finisher (RH)	8.	Seat cushion rear finisher (RH)	9.	Seat cushion inner finisher (RH)
10.	Seat slide finisher (RH)	11.	Seat belt buckle	12.	Seat cushion trim
13.	Seat cushion pad	14.	Seat cushion heater (if equipped)	15.	Seat cushion support
16.	Seat cushion silencer	17.	Seat harness	18.	Seat harness bracket
19.	Seat cushion frame	20.	Seat slide finisher bracket (LH)	21.	Seat slide finisher (LH)
22.	Power seat switch	23.	Seat slide knob	24.	Seat recline knob
25.	Seat cushion outer finisher (LH)	26.	Lumbar support switch	27.	Seat cushion rear finisher (LH)
28.	Seat cushion inner finisher (LH)	29.	Side air bag module (not serviceable)	30.	Seatback bracket
31.	Seatback frame	32.	Headrest holder (locked)	33.	Headrest holder (free)

DRIVER MANUAL SEAT

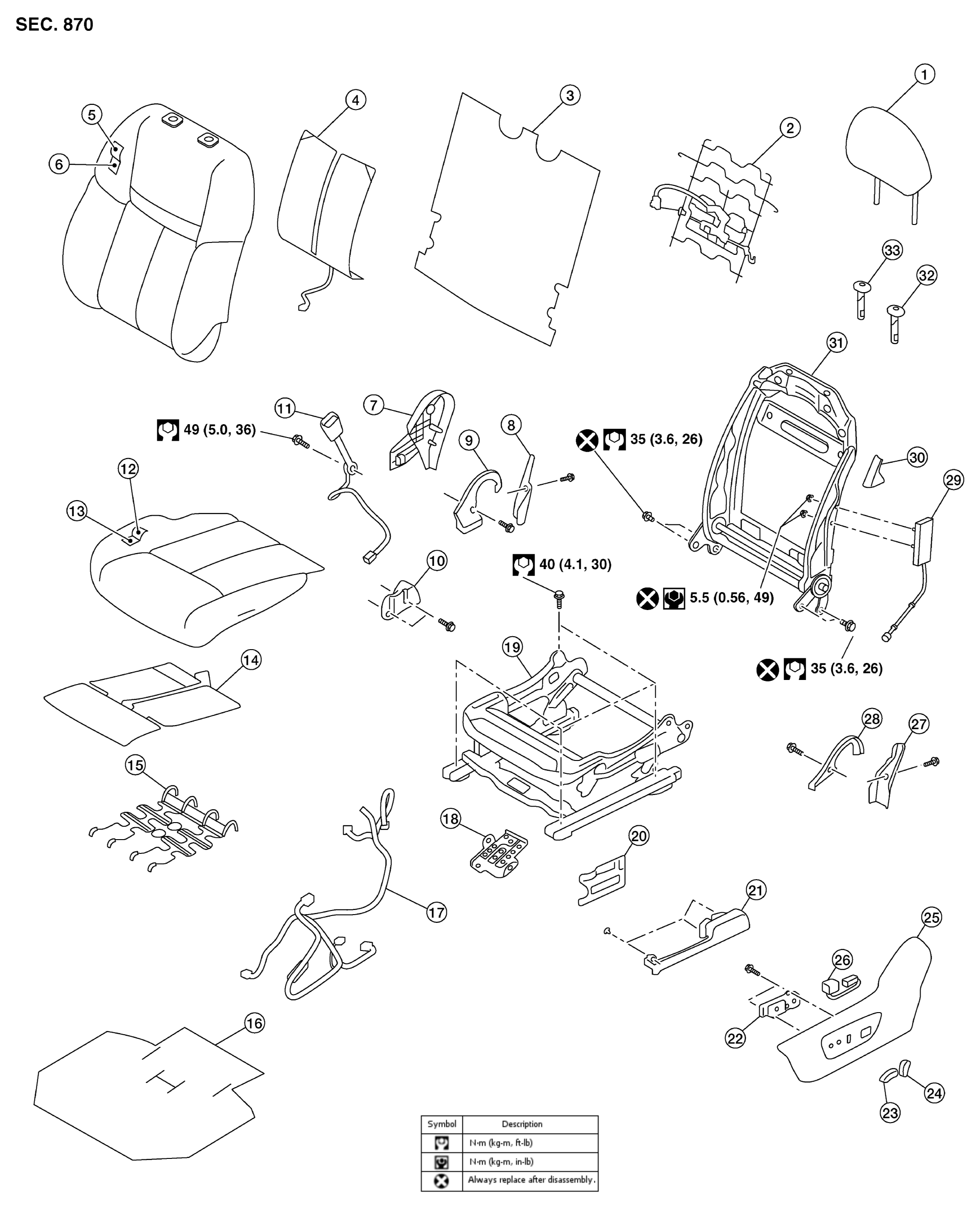

Fig 2: Exploded View Of Front Seat With Torque Specifications (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headrest	2.	Seatback board	3.	Seatback support
4.	Seatback trim	5.	Seatback pad	6.	Seat cushion outer finisher
7.	Seat cushion rear finisher (RH)	8.	Seat cushion inner finisher (RH)	9.	Seat slide finisher (RH)
10.	Seat belt buckle	11.	Seat cushion trim	12.	Seat cushion pad
13.	Seat cushion support	14.	Seat cushion silencer	15.	Seat harness
16.	Seat cushion frame	17.	Recline switch	18.	Seat slide finisher bracket (LH)
19.	Seat slide finisher (LH)	20.	Lift lever	21.	Recline lever
22.	Seat cushion outer finisher (LH)	23.	Seat cushion rear finisher (LH)	24.	Seat cushion inner finisher (LH)
25.	Side air bag module (not serviceable)	26.	Seatback bracket	27.	Seatback frame
28.	Headrest holder (locked)	29.	Headrest holder (free)

PASSENGER POWER SEAT

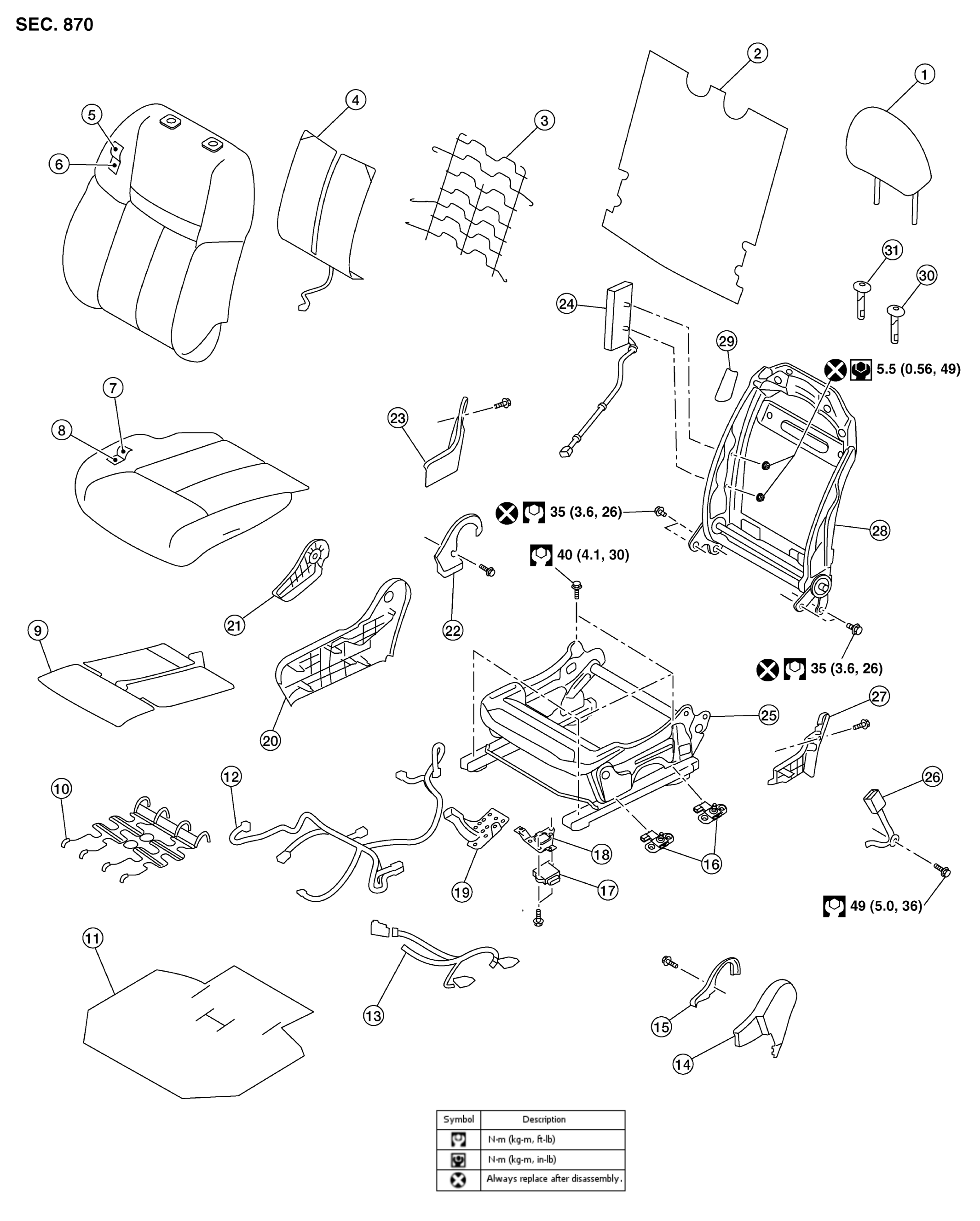

Fig 3: Exploded View Of Front Seat With Torque Specifications (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headrest	2.	Seatback board	3.	Seatback support
4.	Seatback heater	5.	Seat cushion trim	6.	Seat cushion pad
7.	Seat cushion trim	8.	Seat cushion pad	9.	Seat cushion heater
10.	Seat cushion support	11.	Seat cushion silencer	12.	Seat harness
13.	Occupant classification system harness	14.	Seat cushion outer finisher (LH)	15.	Seat cushion inner finisher (LH)
16.	Occupant classification system sensor	17.	Occupant classification system control unit	18.	Occupant classification system bracket
19.	Wiring harness bracket	20.	Power seat switch	21.	Seat cushion outer finisher (RH)
22.	Seat slide knob	23.	Seat recline knob	24.	Seat cushion inner finisher (RH)
25.	Seat cushion rear finisher (RH)	26.	Side air bag module (not serviceable)	27.	Seat cushion frame
28.	Seat belt buckle	29.	Seat cushion rear finisher (LH)	30.	Seatback frame
31.	Seatback bracket	32.	Headrest holder (locked)	33.	Headrest holder (free

PASSENGER MANUAL SEAT

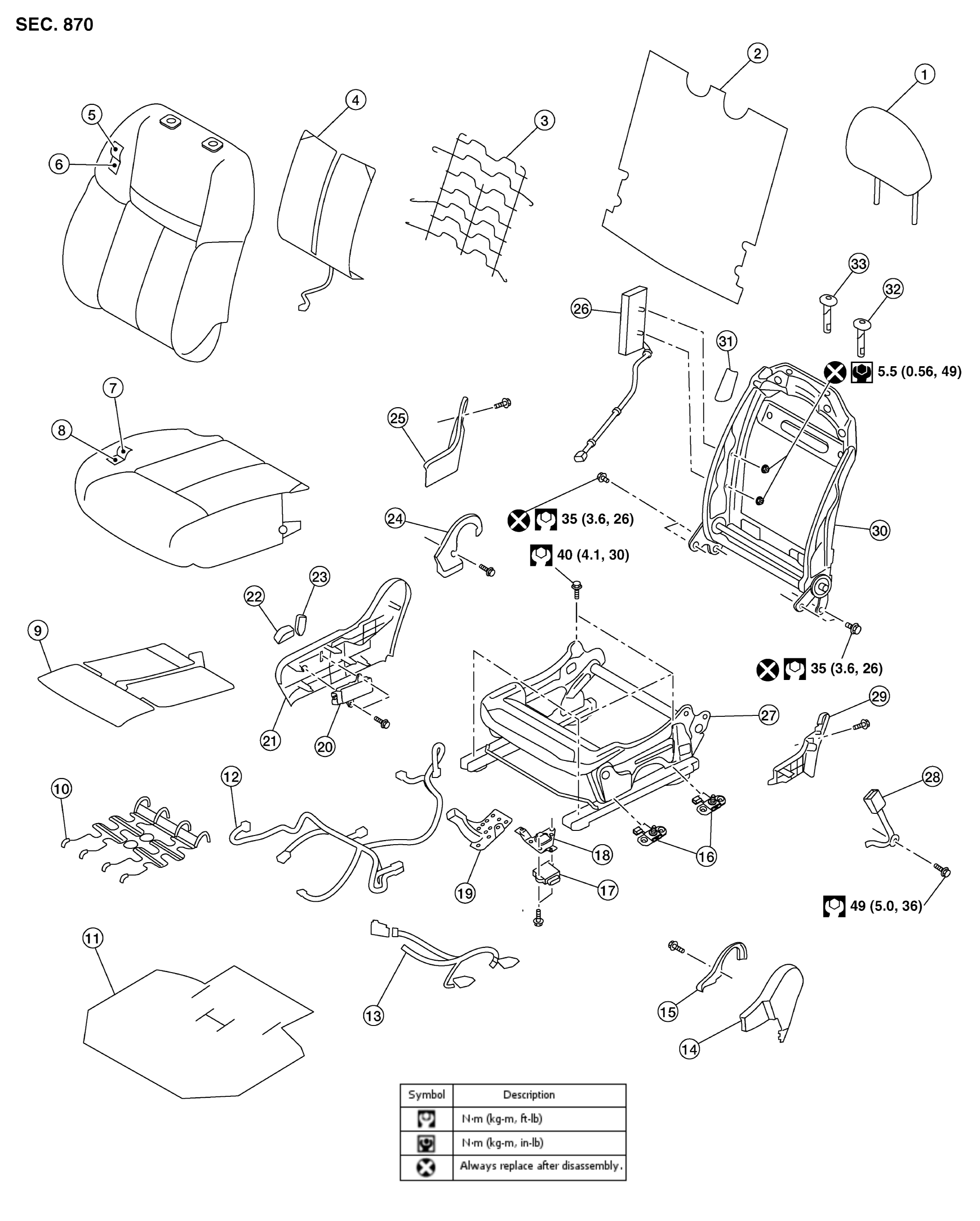

Fig 4: Exploded View Of Front Seat With Torque Specifications (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headrest	2.	Seatback board	3.	Seatback support
4.	Seatback heater (if equipped)	5.	Seatback trim	6.	Seatback pad
7.	Seat cushion trim	8.	Seat cushion pad	9.	Seat cushion heater (if equipped)
10.	Seat cushion support	11.	Seat cushion silencer	12.	Seat harness
13.	Occupant classification system harness	14.	Seat cushion outer finisher (LH)	15.	Seat cushion inner finisher (LH)
16.	Occupant classification system sensor	17.	Occupant classification system control unit	18.	Occupant classification system control unit bracket
19.	Wiring harness bracket	20.	Seat cushion outer finisher	21.	Recline lever
22.	Seat cushion inner finisher (RH)	23.	Seat cushion rear finisher (RH)	24.	Side air bag module (not serviceable)
25.	Seat cushion frame	26.	Seat belt buckle	27.	Seat cushion rear finisher (LH)
28.	Seatback frame	29.	Seatback bracket	30.	Headrest holder (free)
31.	Headrest holder (locking)
