Exploded View With Torque Specifications

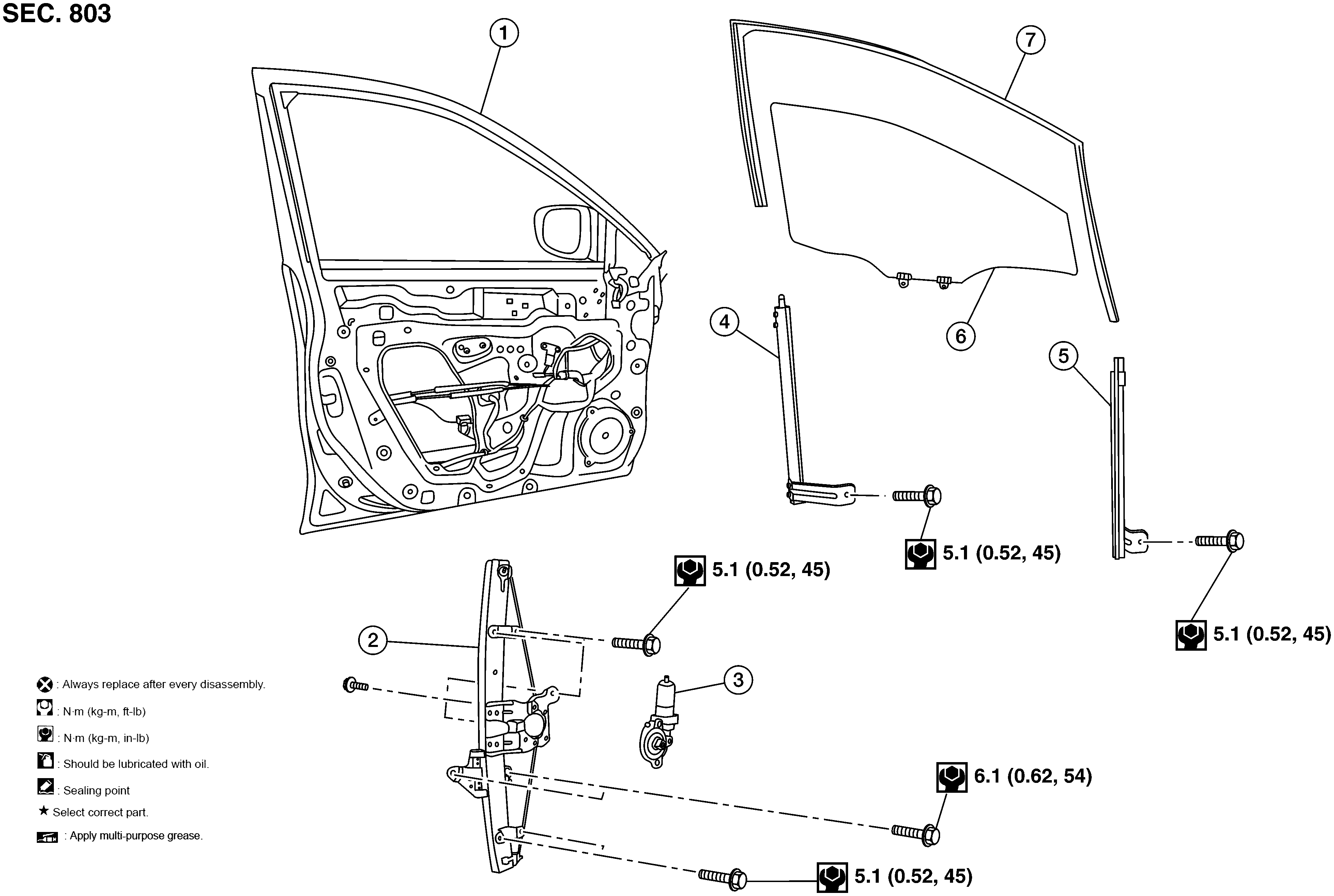

Fig 1: Exploded View Of Front Regulator With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front door panel	2.	Front door regulator	3.	Front door power window motor
4.	Front door glass run rear	5.	Front door glass run front	6.	Front door glass
7.	Front door glass rubber run
