Exploded View With Torque Specifications

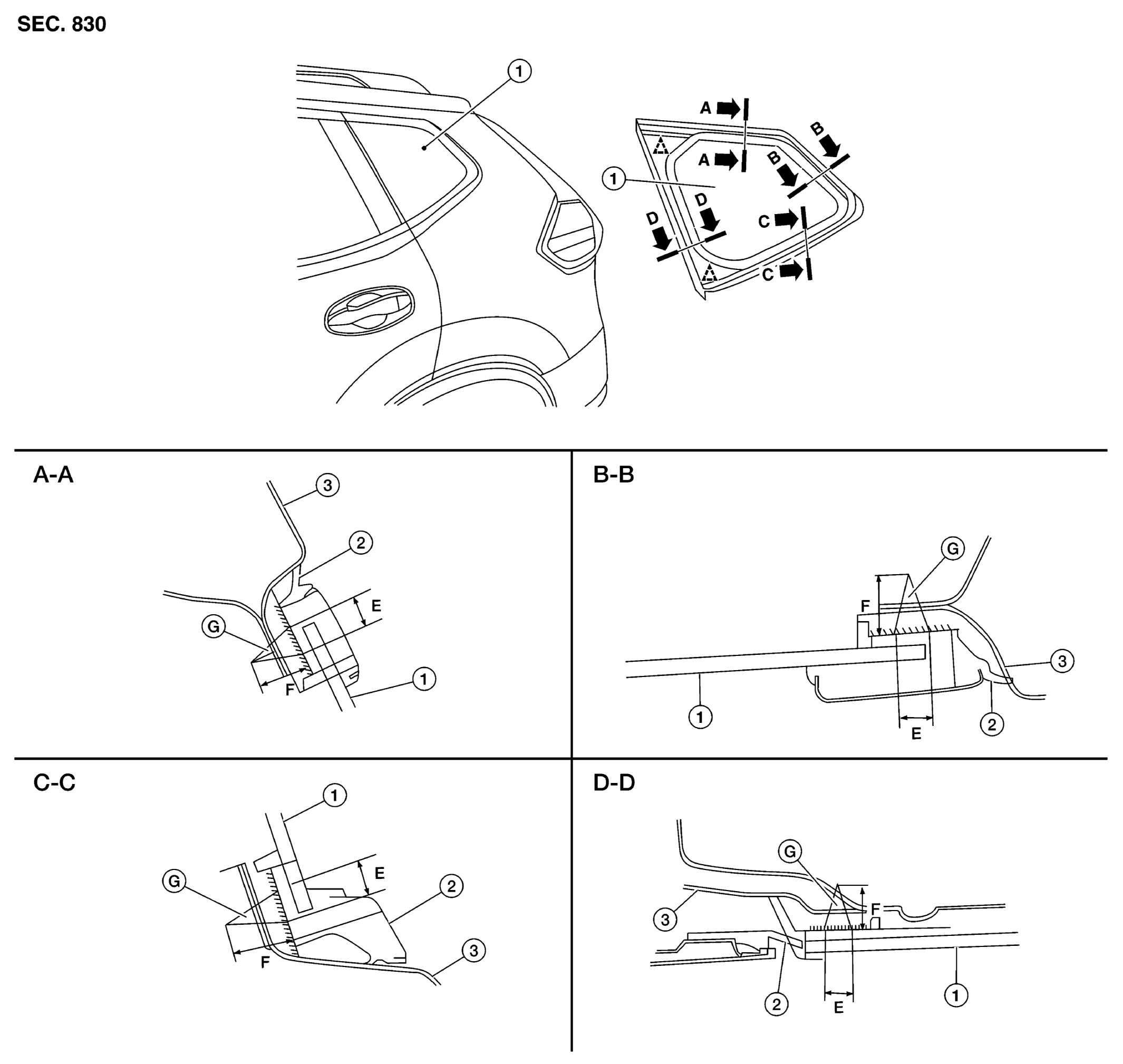

Fig 1: Exploded View Of Quarter Window Glass

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Quarter window glass	2.	Quarter window glass molding	3.	Body side outer
E.	7.0 mm (0.28 in)	F.	12.0 (0.47 in)	G.	Adhesive
	Clip
