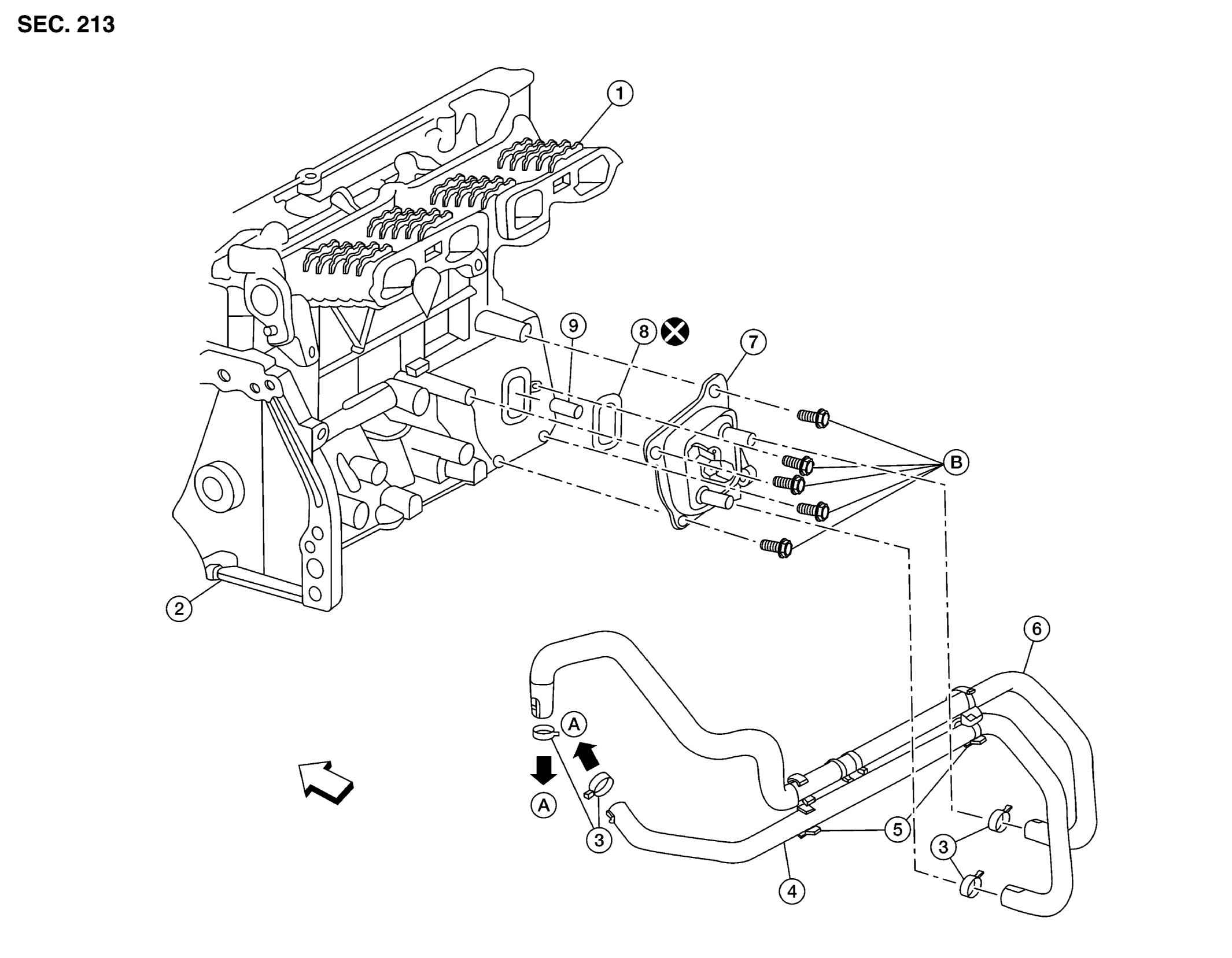

Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Intake manifold |
2. |
Cylinder block |
3. |
Clamp |
| 4. |
Water hose |
5. |
Water hose clip |
6. |
Water hose |
| 7. |
Oil cooler |
8. |
Gasket |
9. |
Oil cooler relief valve |
 |
Front |
A. |
Refer to INSTALLATION |
|
|
