Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

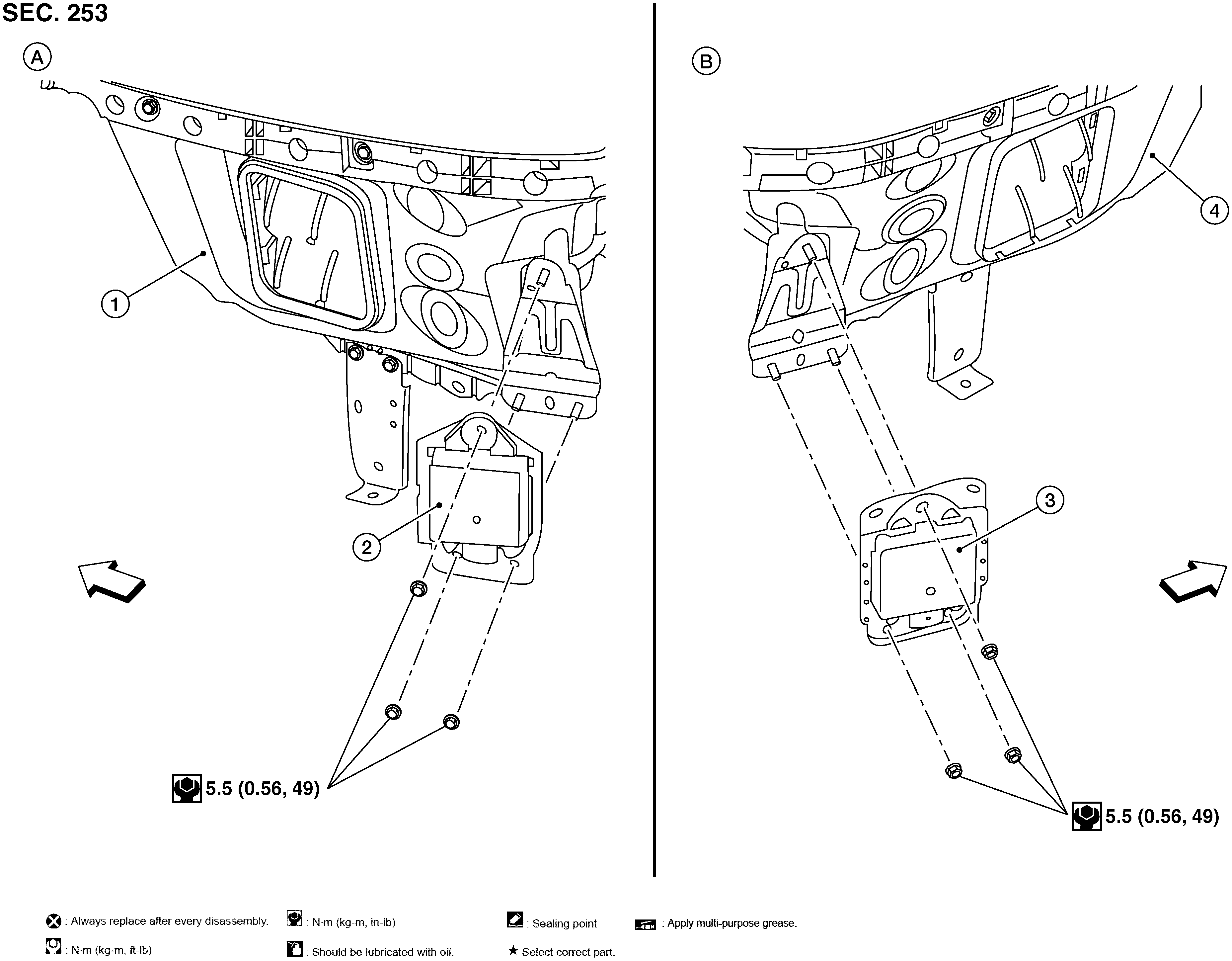

Fig 1: Exploded View Of Sde Radar With Torque Specifications
GNSALOIA0312ZZ-312Courtesy of NISSAN NORTH AMERICA, INC.
1. Rear fender (LH) 2. Side radar (LH) 3. Side radar (RH)
4. Rear fender (RH) A. LH side B. RH side
ARROW Front
