Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

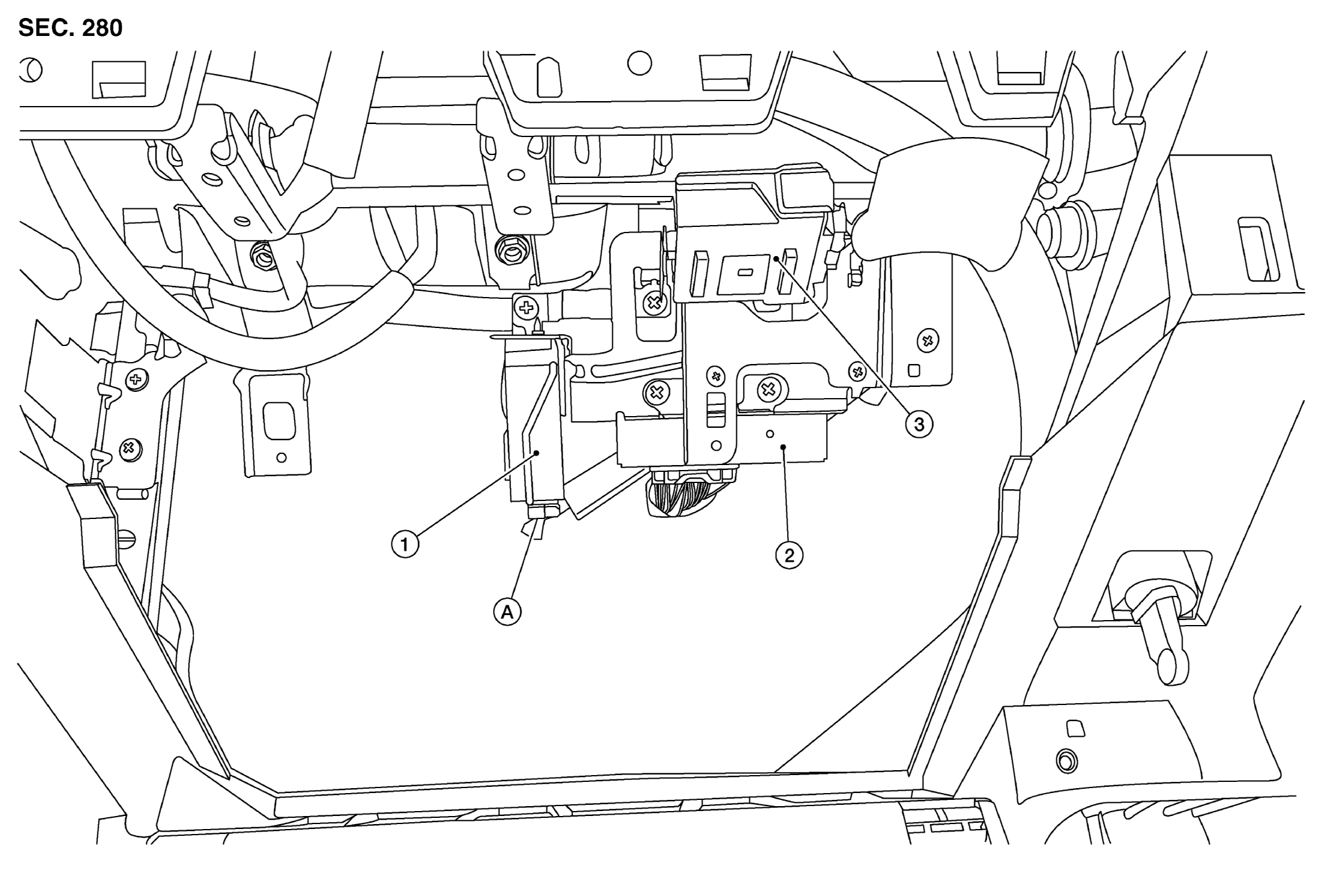

Fig 1: Warning Systems Buzzer

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Warning systems buzzer	2.	Around view module (if equipped)	3.	Chassis control module
A.	Harness connector
