Exploded View With Torque Specifications

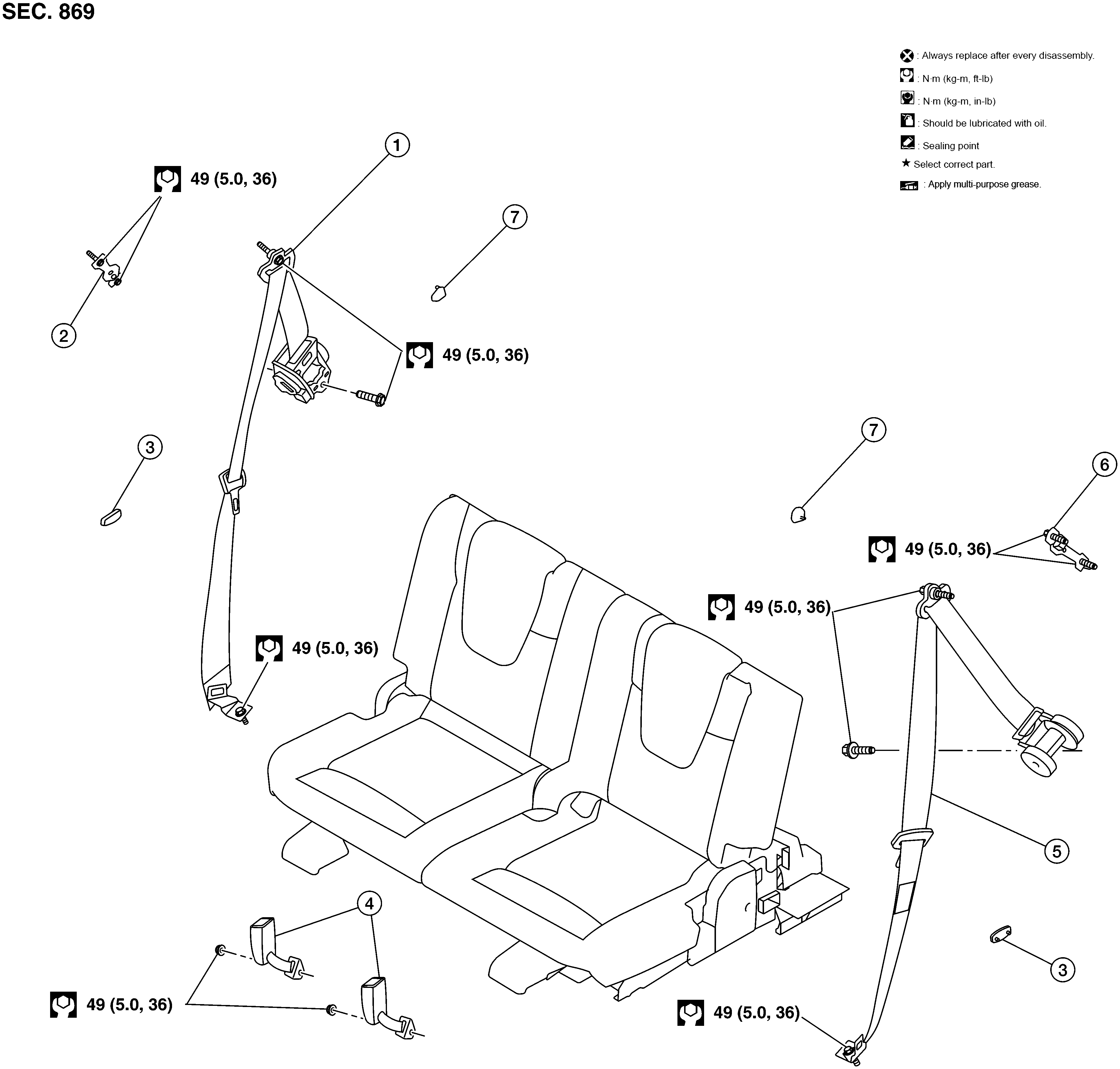

Fig 1: Exploded View Of Third Row Seat Belt With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat belt retractor (RH)	2.	Seat belt D-ring bracket (RH)	3.	Seat belt hook (LH/RH)
4.	Seat belt buckle (LH/RH)	5.	Seat belt retractor (LH)	6.	Seat belt D-ring bracket (LH)
7.	Seat belt D-ring bolt cover (LH/RH)
