Exploded View With Torque Specifications

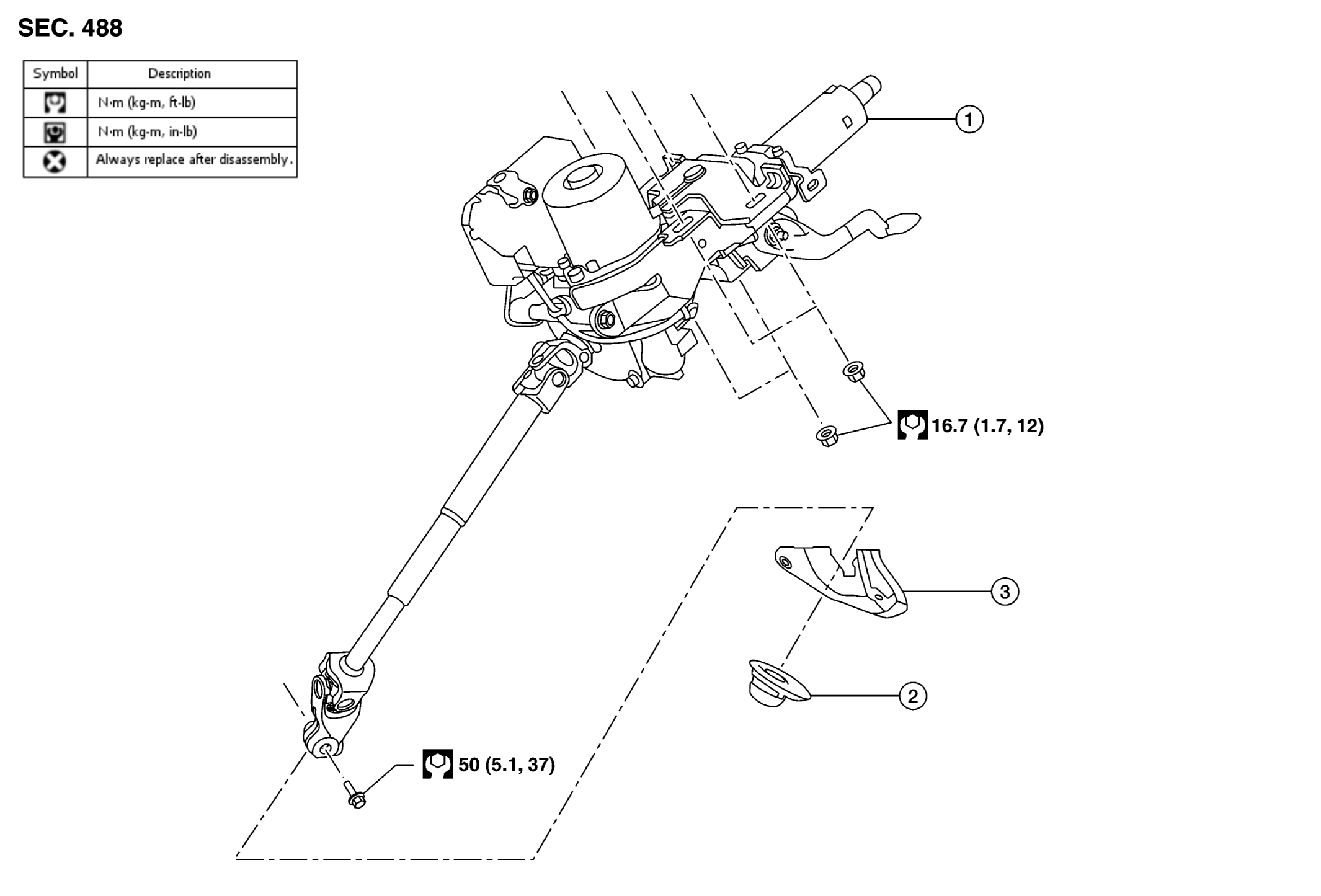

Fig 1: Exploded View Of Steering Column With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column

2.

Lower cover seal

3.

Column hole cover
