Exploded View With Torque Specifications

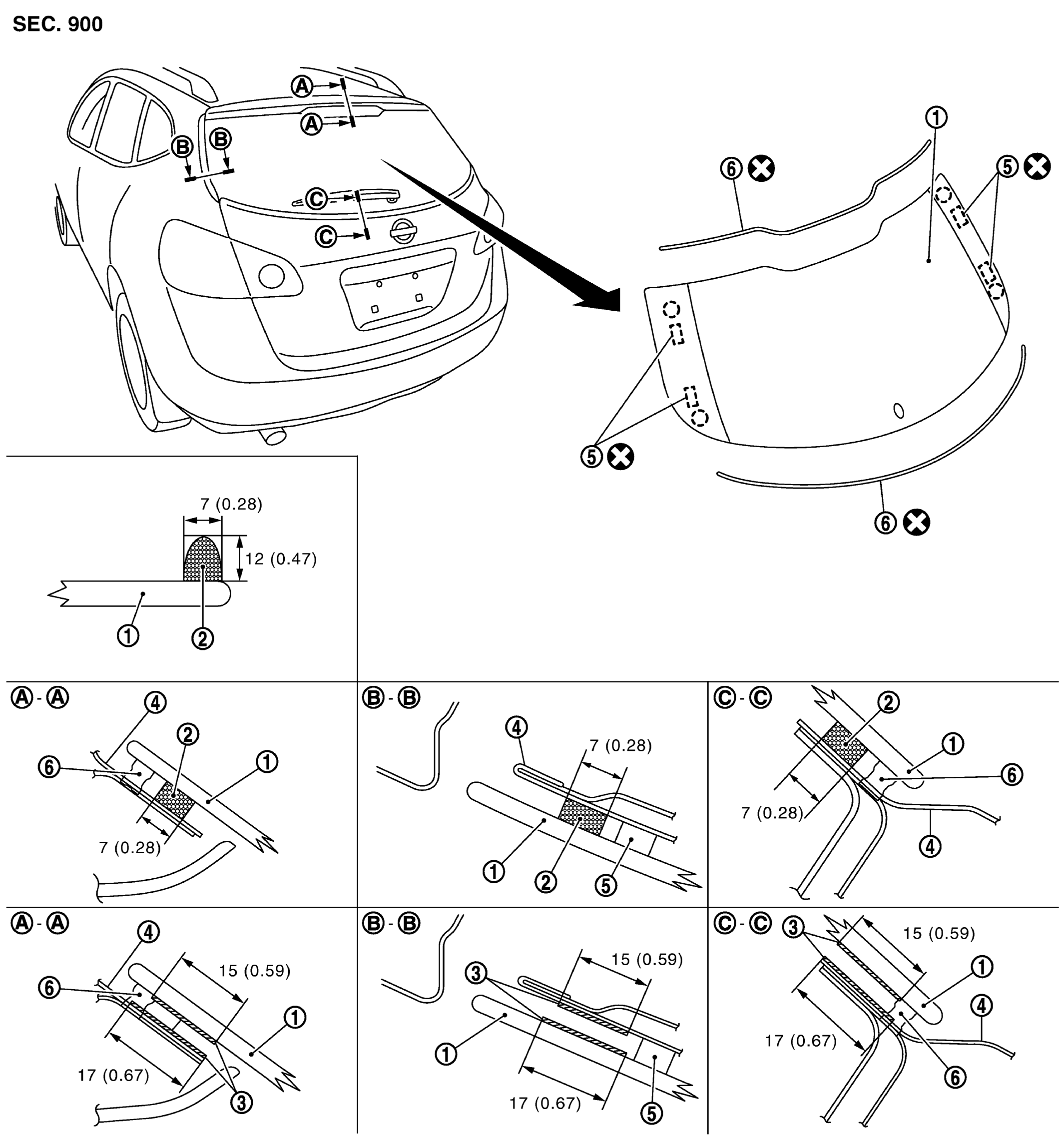

Fig 1: Exploded View Of Back Door Window Glass

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Back door window glass	2.	Adhesive	3.	Primer
4.	Back door outer panel	5.	Spacer	6.	Dam rubber
	: Clip
	: Always replace after every disassembly.
Unit	: mm (in)
