Exploded View With Torque Specifications

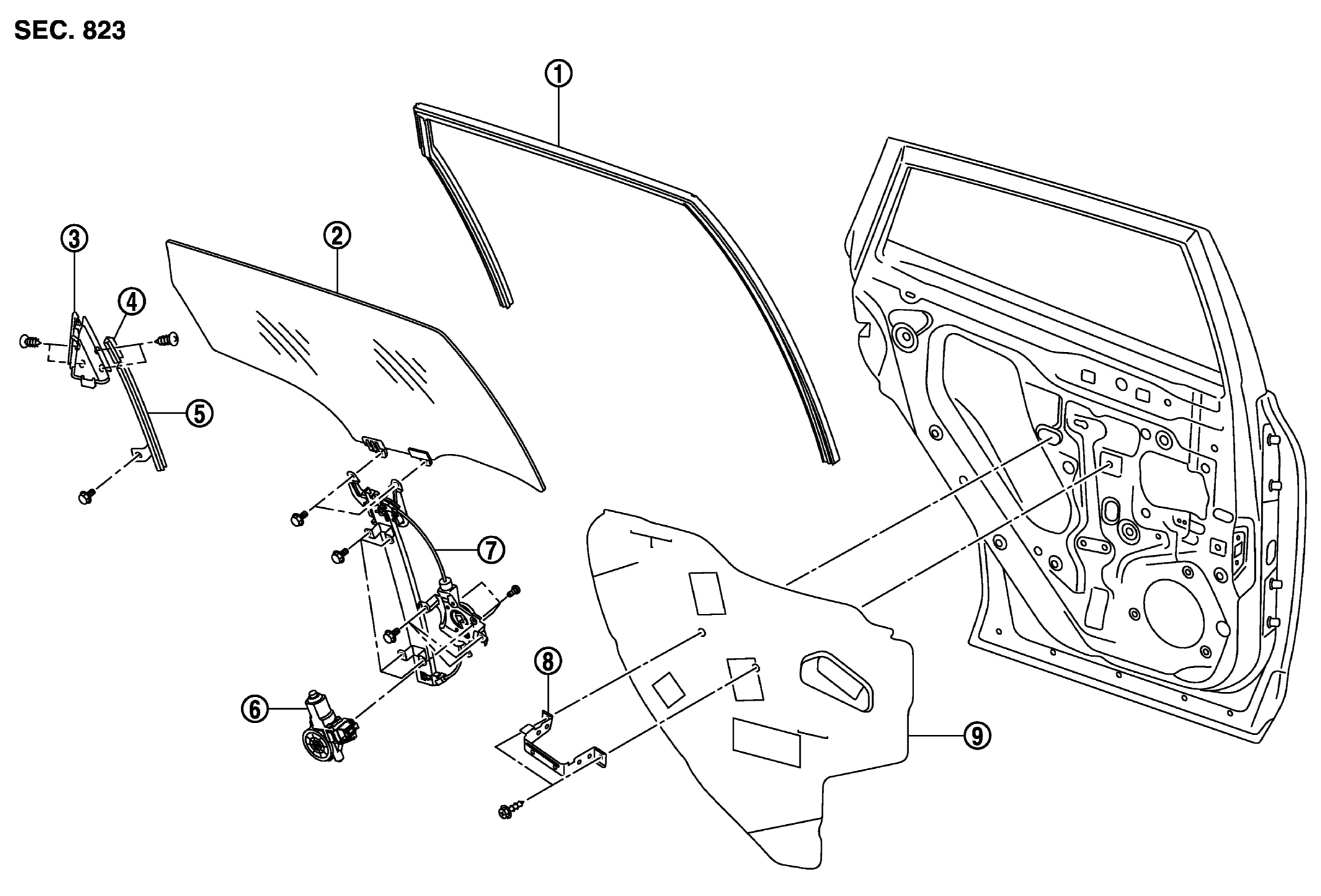

Fig 1: Exploded View Of Rear Regulator

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Door glass run	2.	Door glass	3.	Corner piece
4.	Rear door sash (upper)	5.	Rear door sash (lower)	6.	Power window motor
7.	Regulator assembly	8.	Pull handle bracket	9.	Sealing screen
NOTE: The door panel on the right is for your reference.
