Exploded View With Torque Specifications

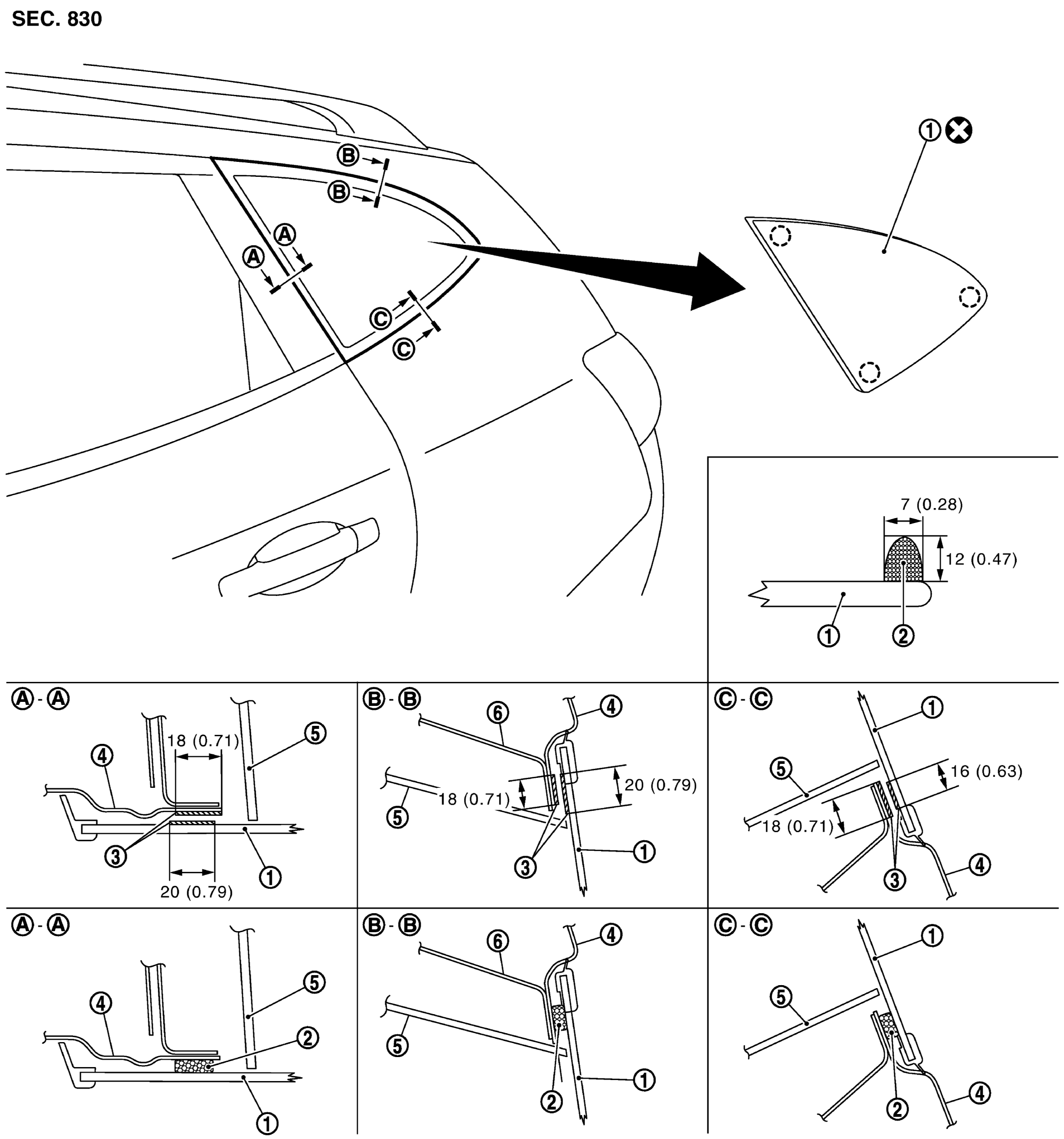

Fig 1: Exploded View Of Side Window Glass

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Side window glass	2.	Adhesive	3.	Primer
4.	Body side outer panel	5.	Luggage side upper finisher	6.	Rear pillar inner
	: Clip
	: Always replace after every disassembly.
Unit	: mm (in)
