Exploded View With Torque Specifications

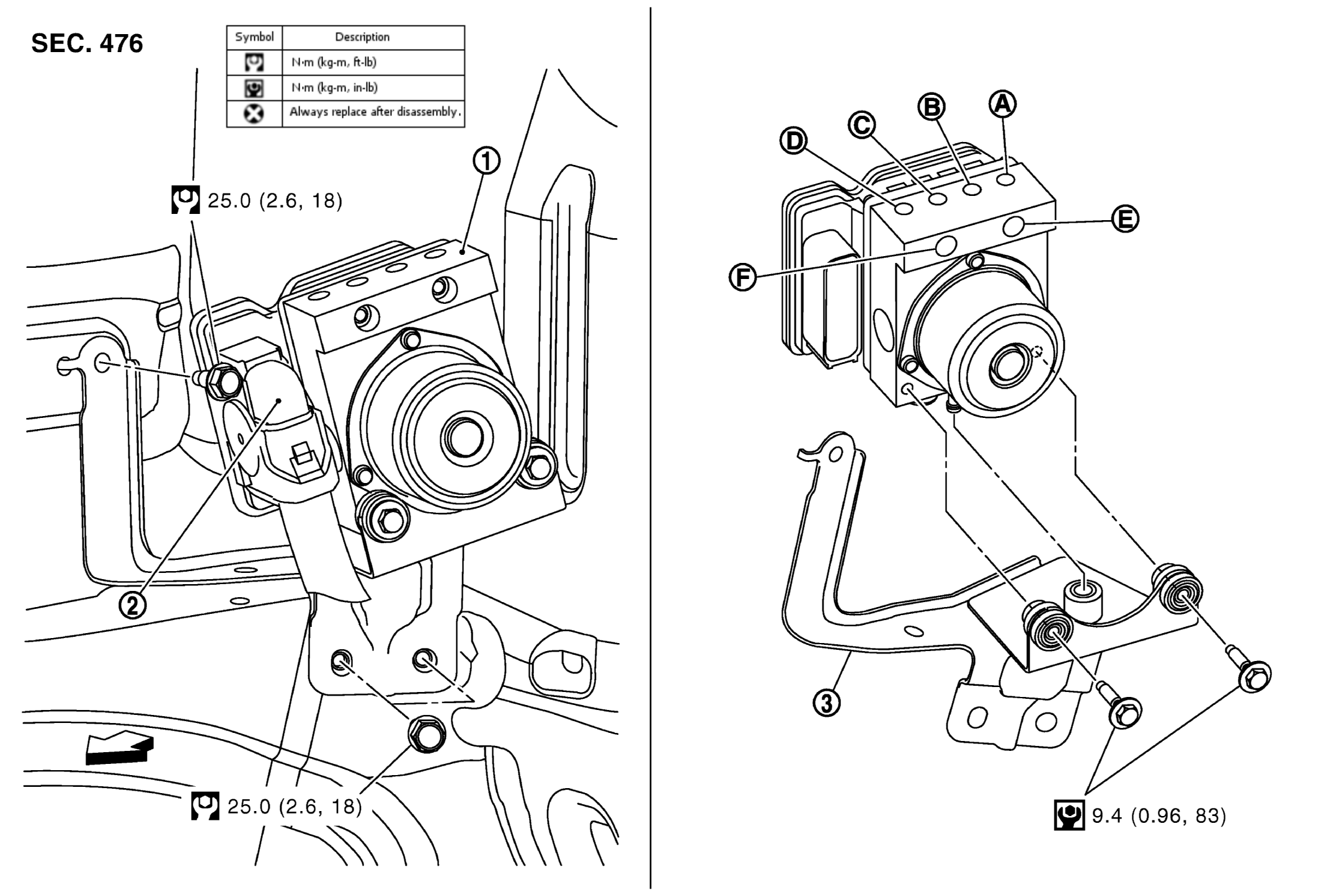

Fig 1: ABS Actuator And Electric Unit (Control Unit) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ABS actuator and electric unit (control unit)	2.	Connector	3.	Bracket
A.	To front LH brake caliper	B.	To rear RH brake caliper	C.	To Rear LH brake caliper
D.	To front RH brake caliper	E.	From master cylinder primary side	F.	From master cylinder secondary side
: Vehicle front
: N•m (kg - m, ft - lb)
: N•m (kg - m, in - lb)
