Exploded View With Torque Specifications

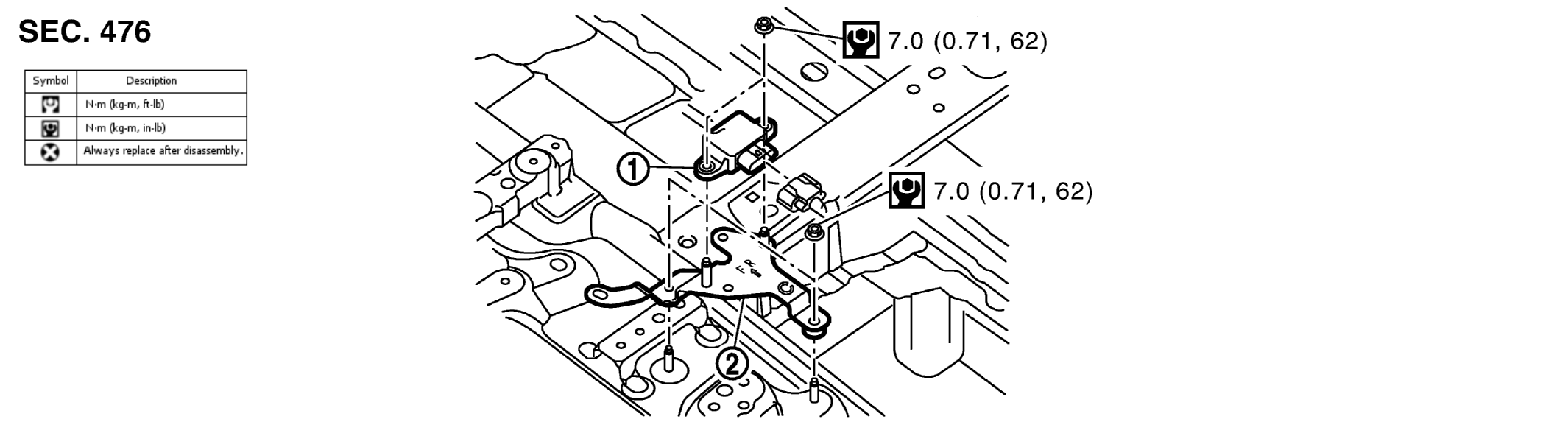

Fig 1: Yaw Rate/Side/Decel G Sensor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	yaw rate/side/decel G sensor	2.	Bracket
: Vehicle front
: N•m (kg - m, in - lb)
