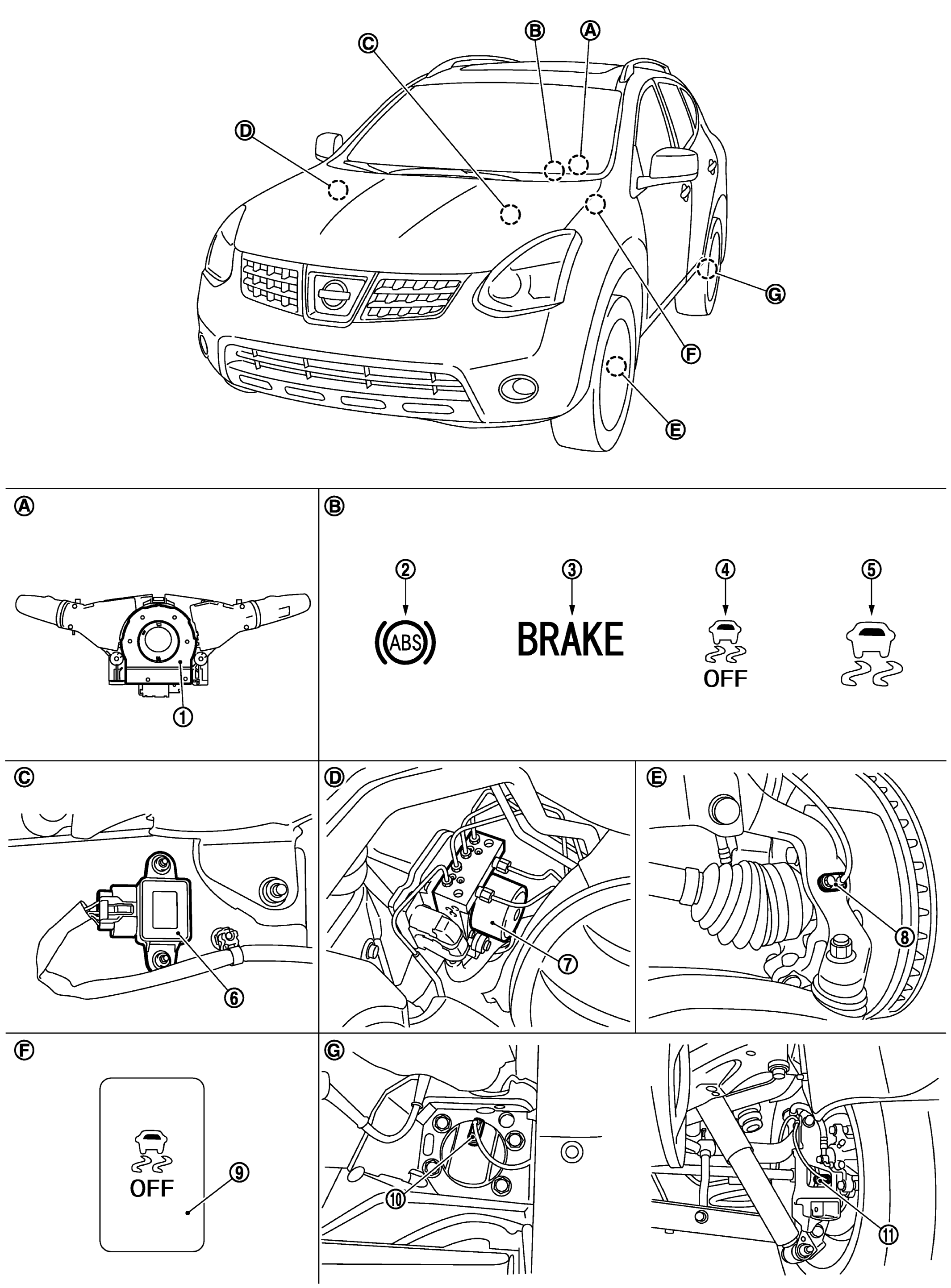

Component Parts Location
| 1. | Steering angle sensor | 2. | ABS warning lamp | 3. | Brake warning lamp |
| 4. | VDC OFF indicator lamp | 5. | VDC warning lamp | 6. | Yaw rate/side/decel G sensor |
| 7. | ABS actuator and electric unit (control unit) | 8. | Front wheel sensor | 9. | VDC OFF switch |
| 10. | Rear wheel sensor (2WD models) | 11. | Rear wheel sensor (AWD models) | ||
| A. | Back of spiral cable assembly | B. | Combination meter | C. | Center console |
| D. | Engine room (right side) | E. | Steering knuckle | F. | Instrument driver lower panel |
| G. | Rear axle |
