Exploded View With Torque Specifications

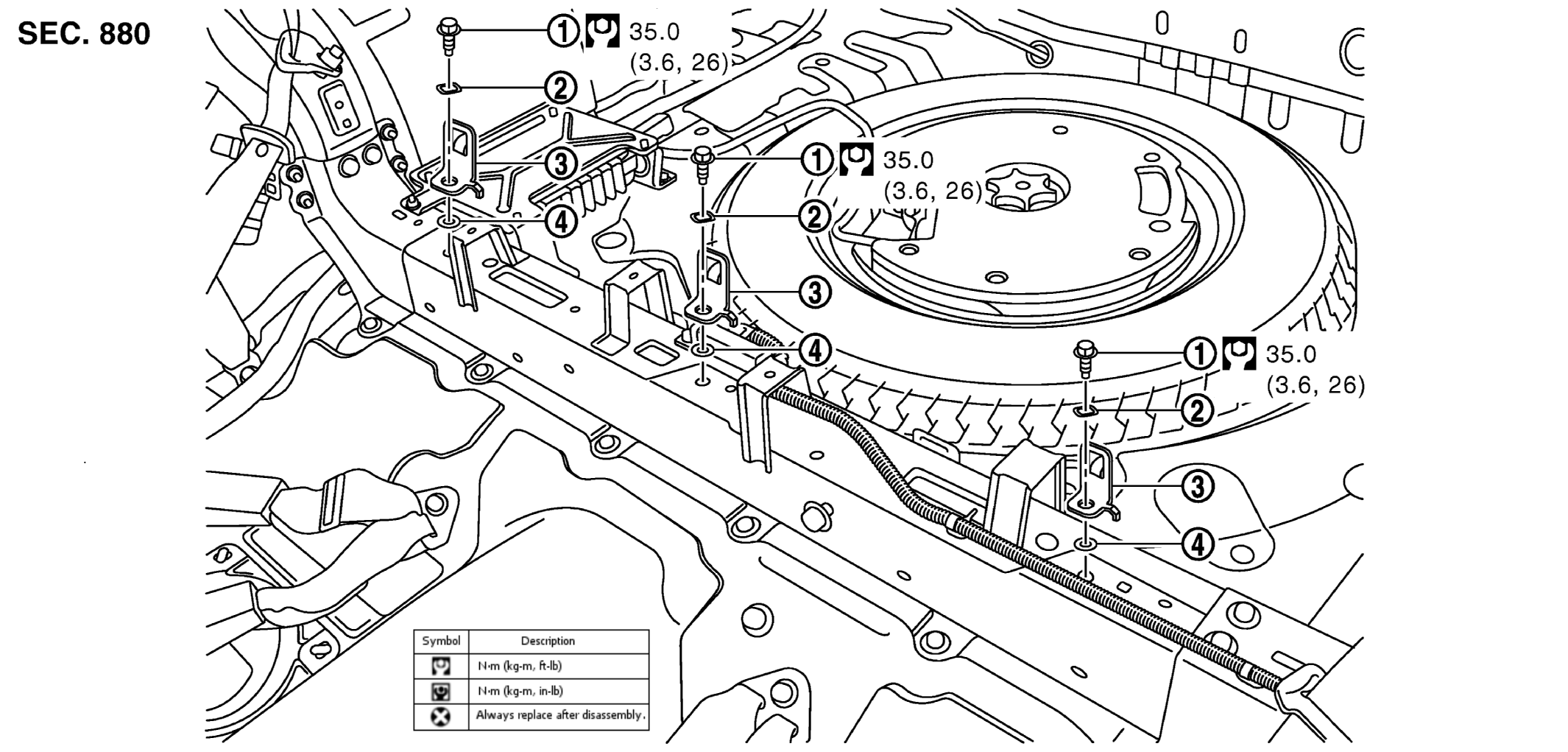

Fig 1: Top Tether Strap Child Restraint With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Anchor bolt	2.	Wave washer	3.	Anchor plate
4.	Fiber washer
	: N•m (kg - m, ft - lb)
