AWD Control Unit
›
Exploded View With Torque Specifications
Exploded View With Torque Specifications

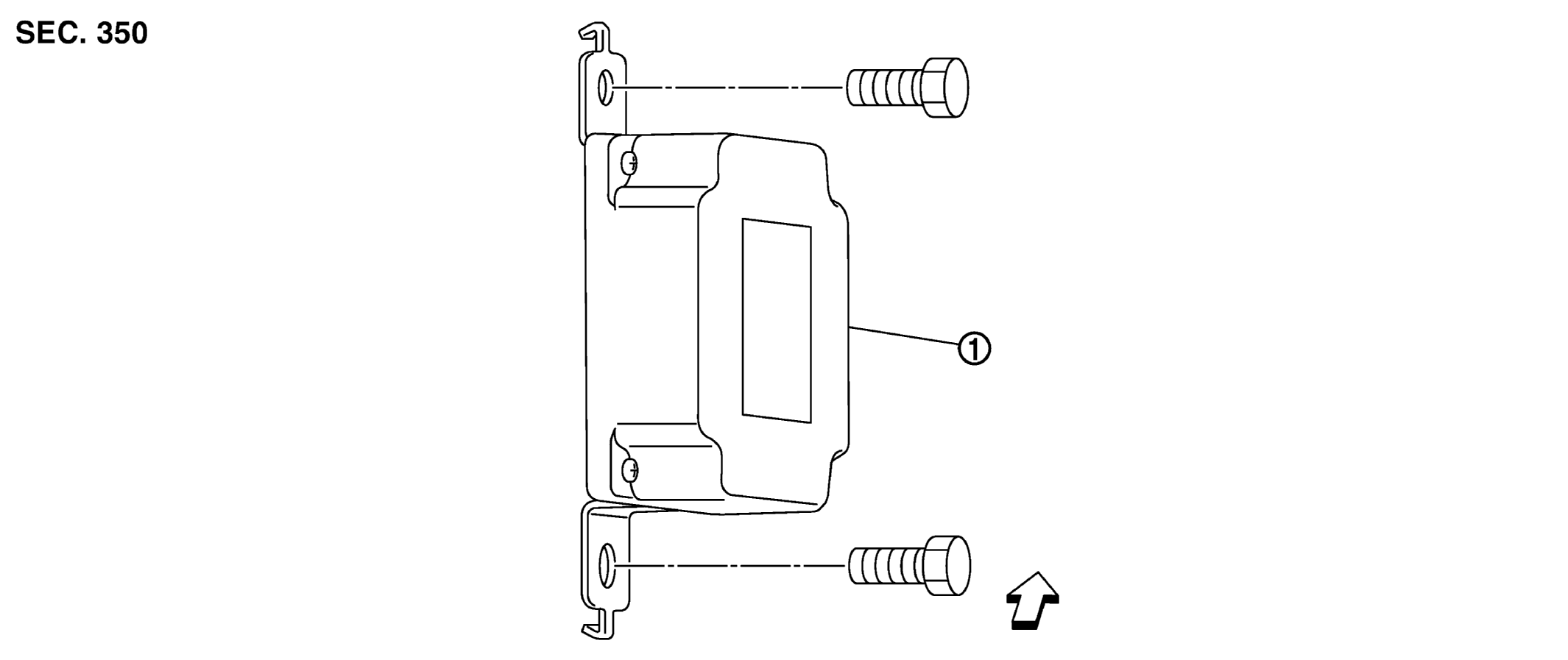

Fig 1: AWD Control Unit
Courtesy of NISSAN NORTH AMERICA, INC.
1.
AWD control unit
: Vehicle front
Courtesy of NISSAN NORTH AMERICA, INC.
: Vehicle front
