Component Parts Location

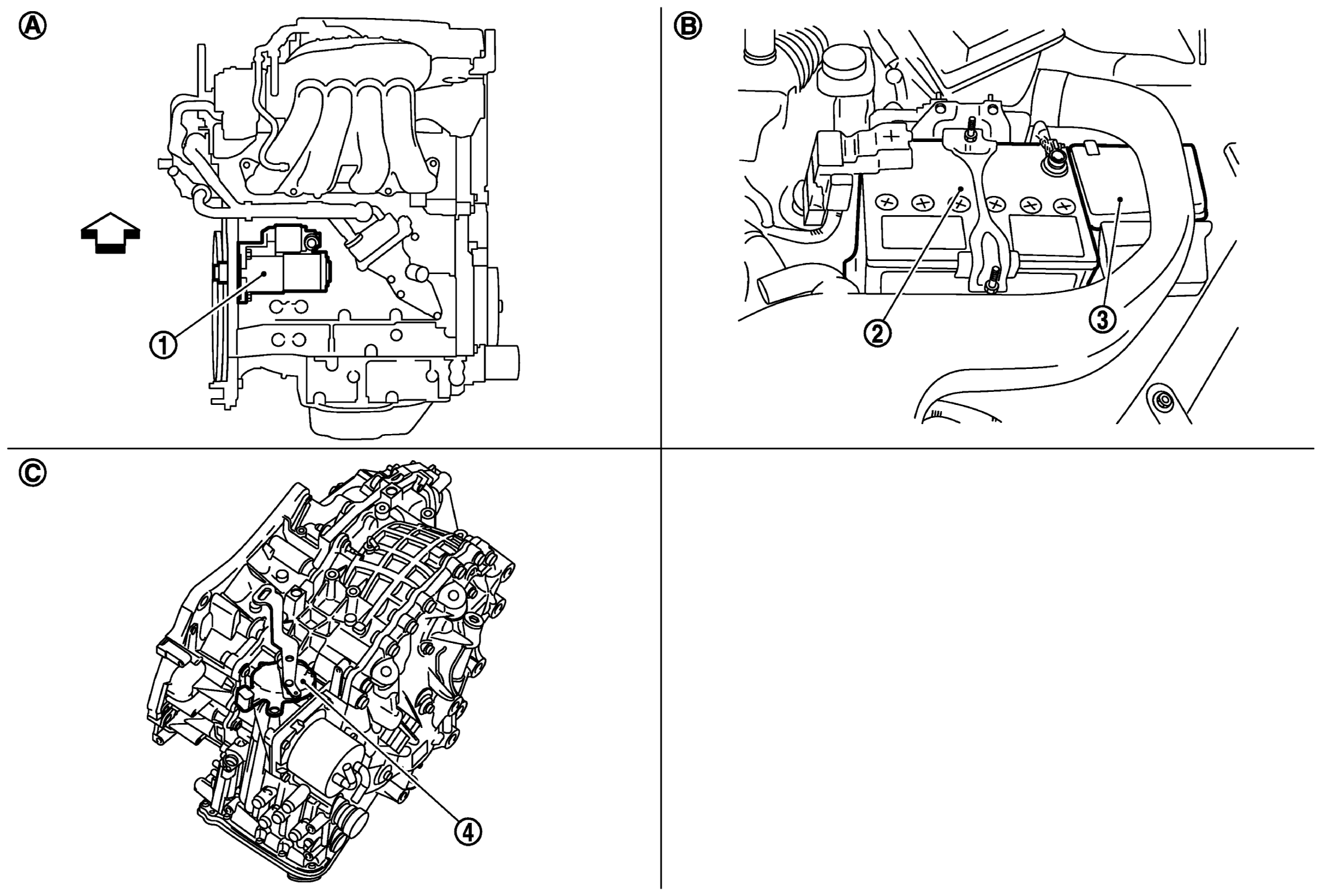

Fig 1: Starting System Components Location
GNSJPBIA1281ZZ-281Courtesy of NISSAN NORTH AMERICA, INC.
1. Starter motor 2. Battery 3. IPDM E/R
4. Transmission range switch
A. Engine B. Engine room LH C. CVT assembly
ARROW : Vehicle front
