Engine Control System (Introduction)
›
System Description
›
System
›
Electric Ignition System
›
System Description
›
System Diagram
System Diagram

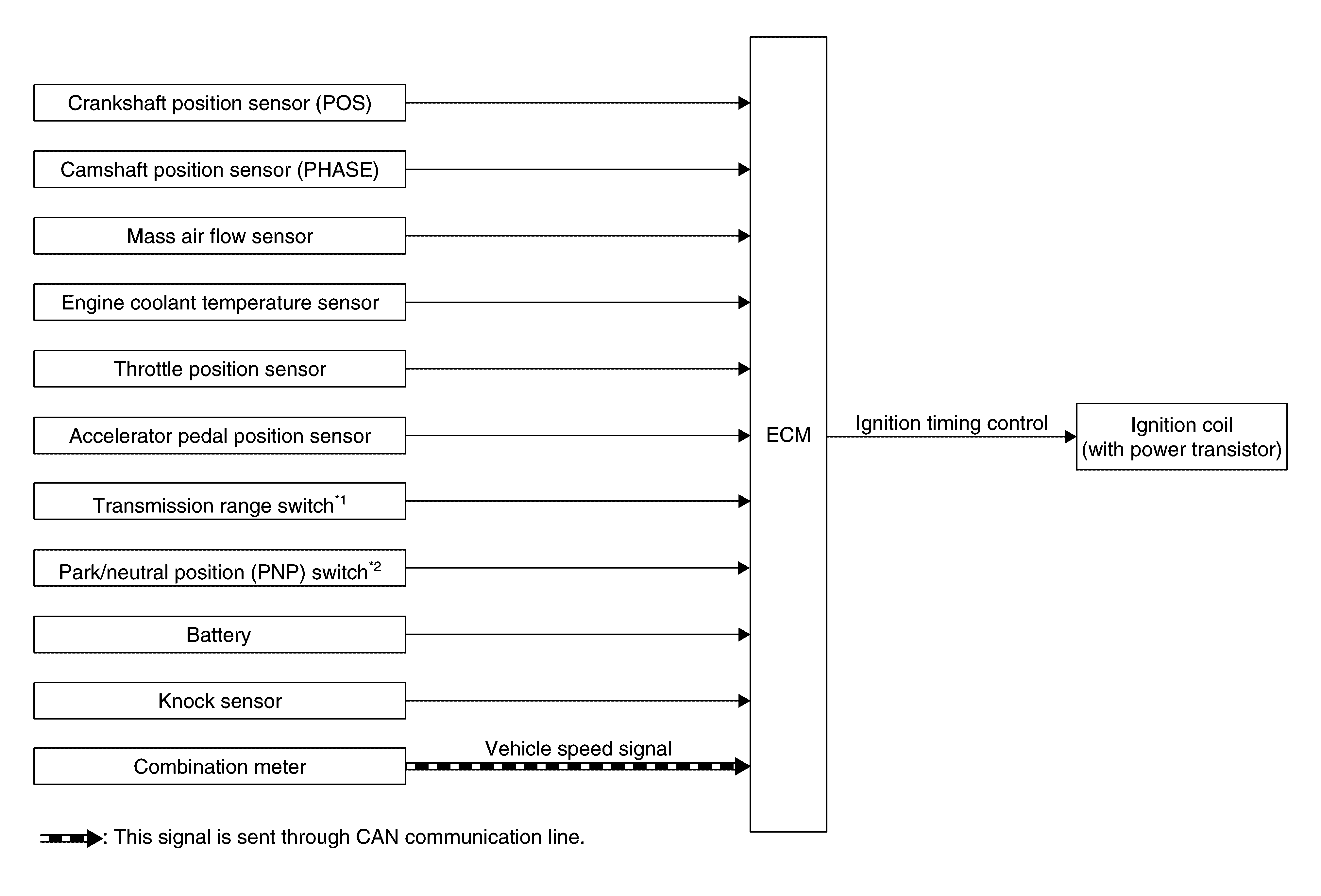

Fig 1: Electric Ignition System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
*1: CVT models
*2: M/T models
Courtesy of NISSAN NORTH AMERICA, INC.
