Exploded View With Torque Specifications

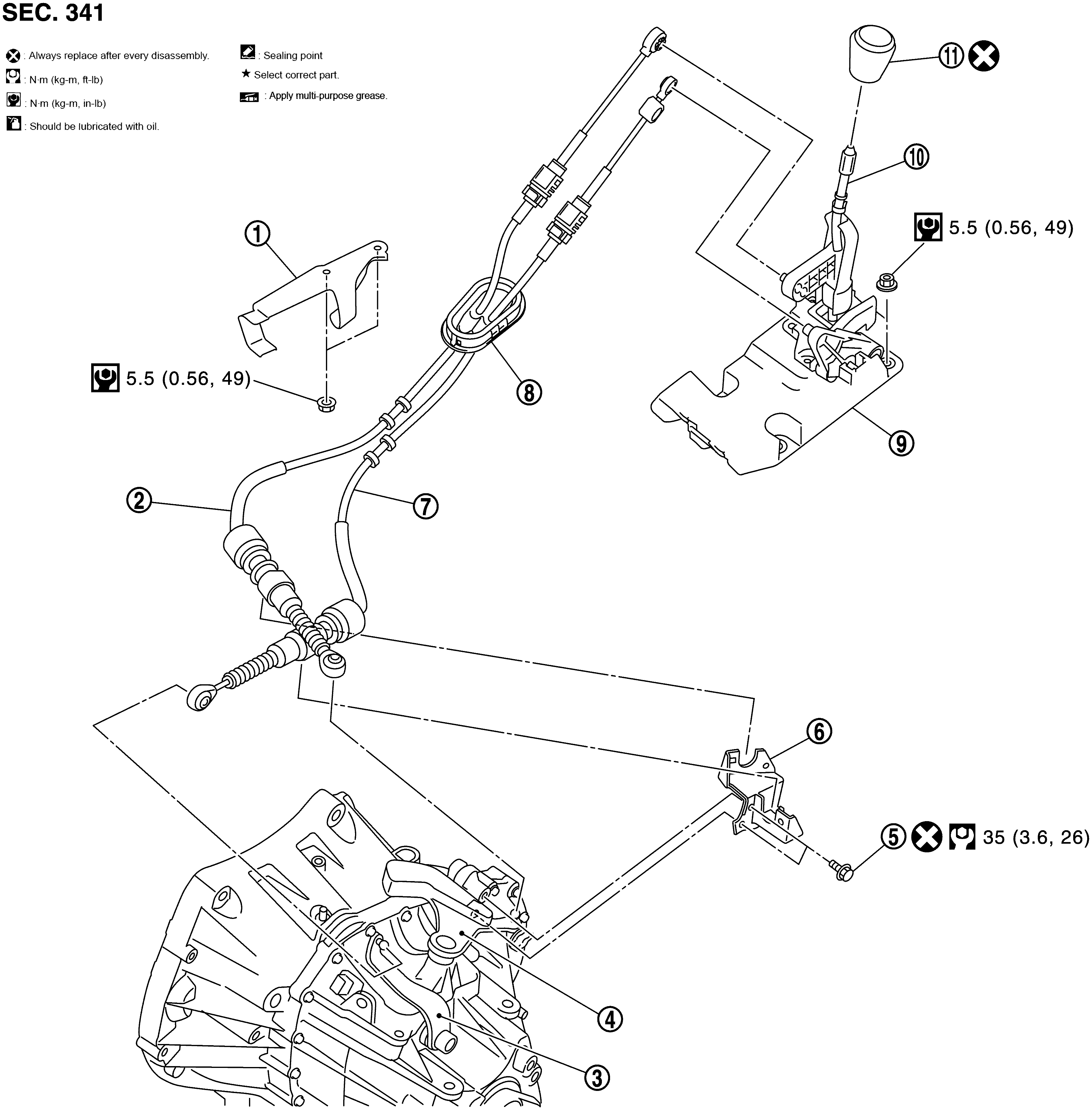

Fig 1: Exploded View Of Control Linkage With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Bracket	2.	Shifter cable	3.	Selector lever
4.	Shift lever	5.	Tapping bolt	6.	M/T cable mounting bracket
7.	Selector cable	8.	Grommet	9.	Shift selector assembly
10.	Shift selector	11.	Shift selector knob
