Exploded View With Torque Specifications

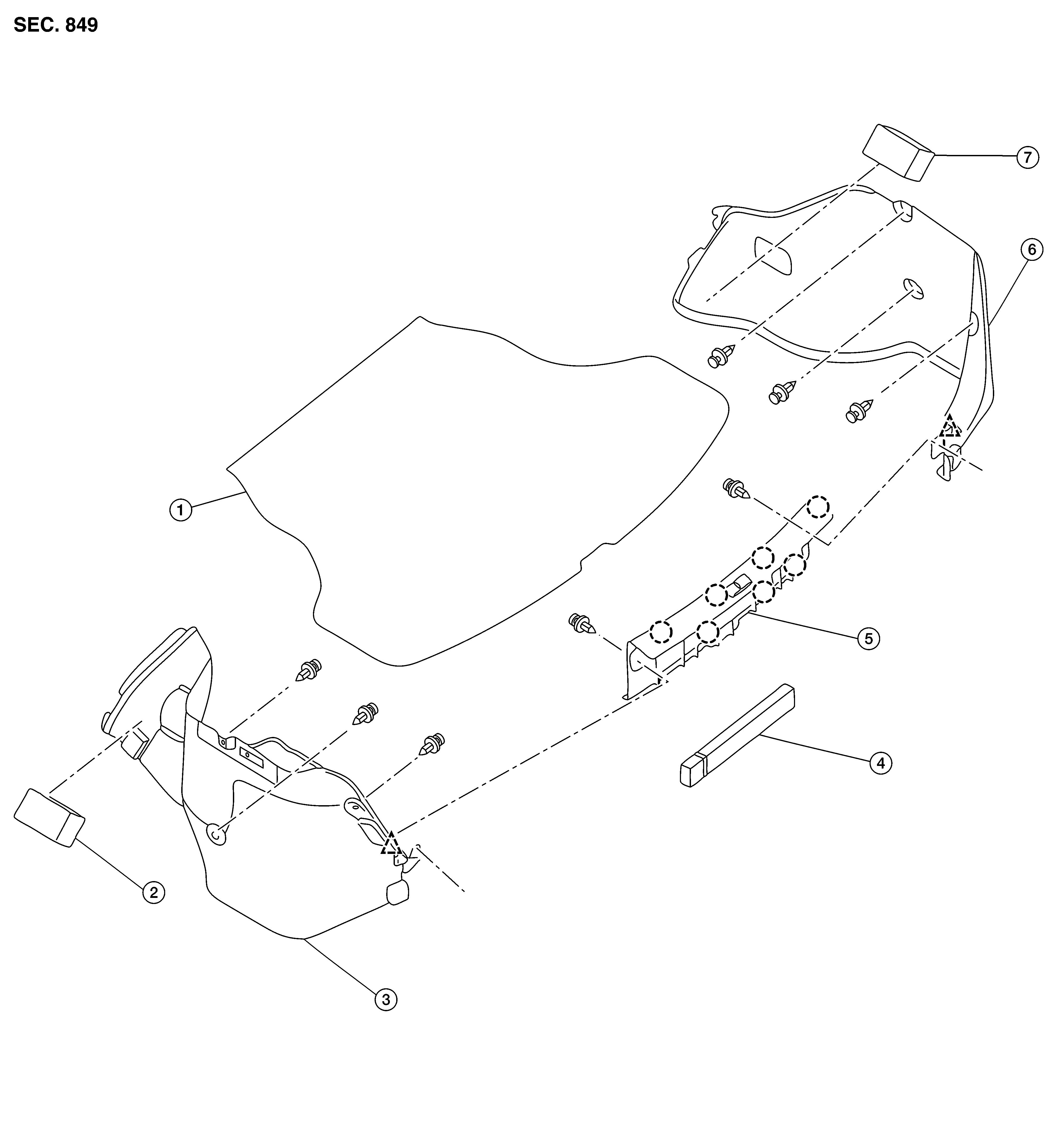

Fig 1: Exploded View Of Trunk Room Trim

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Trunk floor trim	2.	Trunk front floor spacer (LH)	3.	Trunk side finisher (LH)
4.	Reflector box assembly*	5.	Trunk rear plate	6.	Trunk side finisher (RH)
7.	Trunk front floor spacer (RH)		Clip		Pawl
