Exploded View With Torque Specifications

M/T models

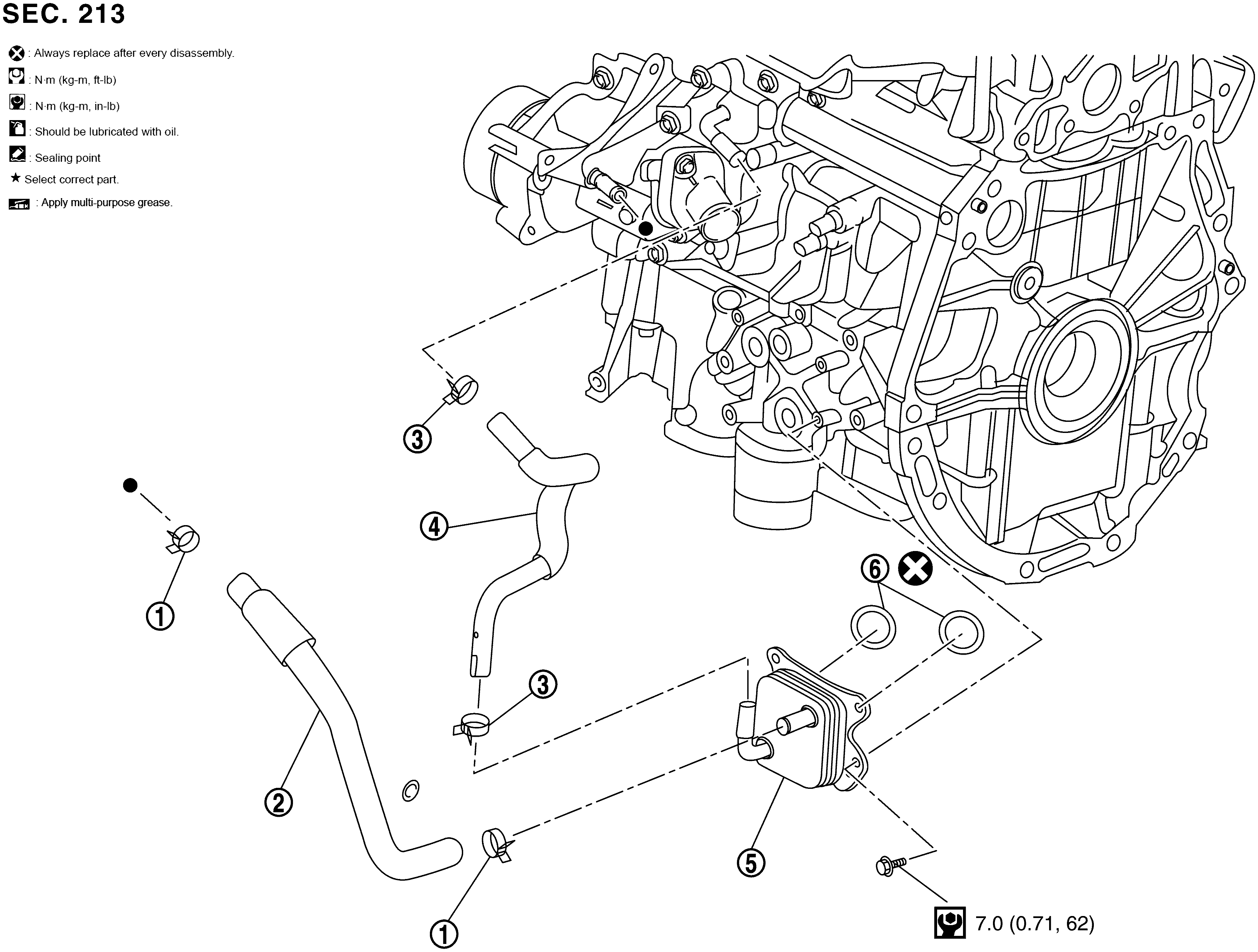

Fig 1: Exploded View Of Oil Cooler With Torque Specifications (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Clamp	2.	Water hose	3.	Clamp
4.	Water hose	5.	Oil cooler	6.	O-rings

CVT models

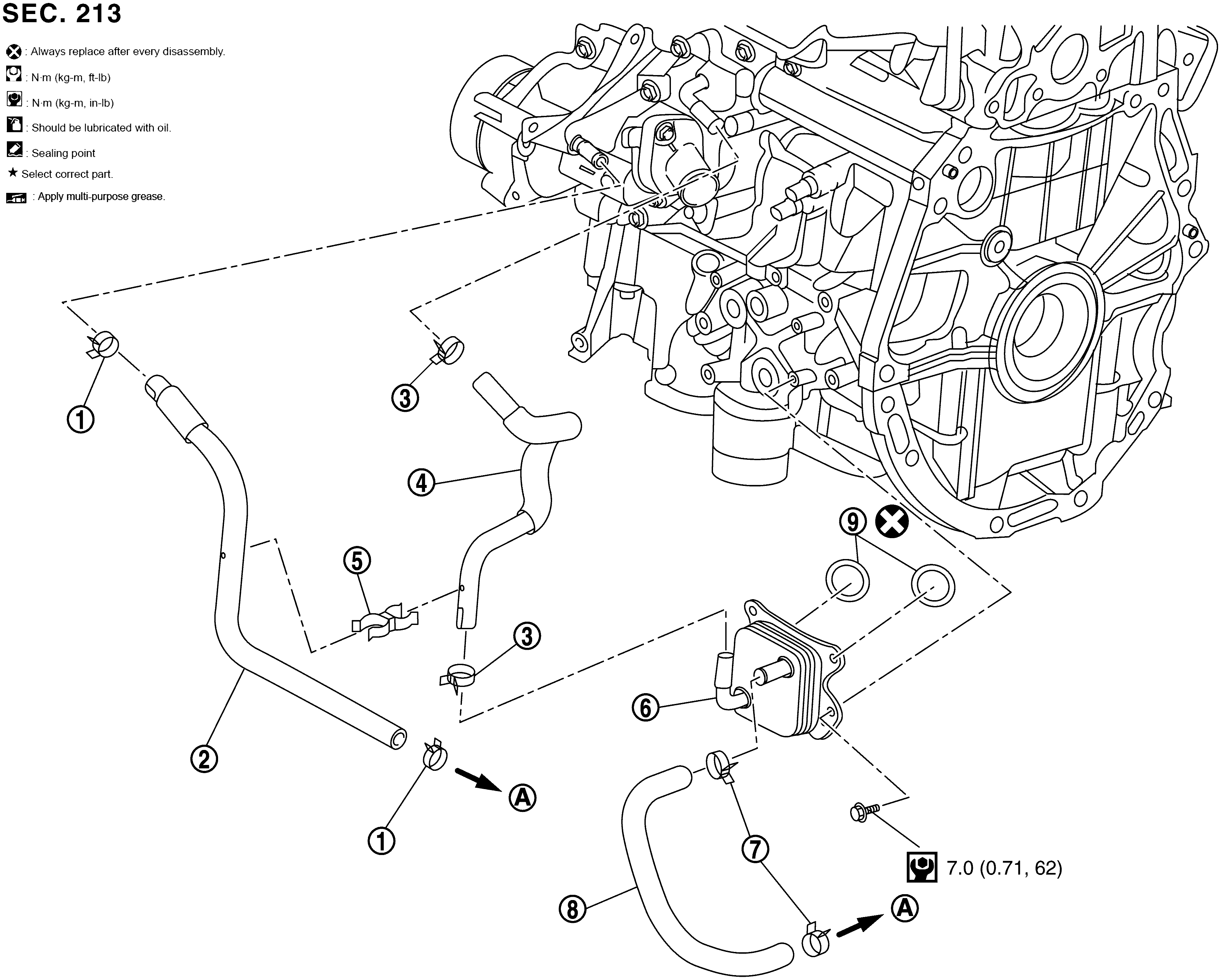

Fig 2: Exploded View Of Oil Cooler With Torque Specifications (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Clamp	2.	Water hose	3.	Clamp
4.	Water hose	5.	Water hose clip	6.	Oil cooler
7.	Clamp	8.	Water hose	9.	O-rings
A.	To CVT oil warmer
