Switches And Indicators

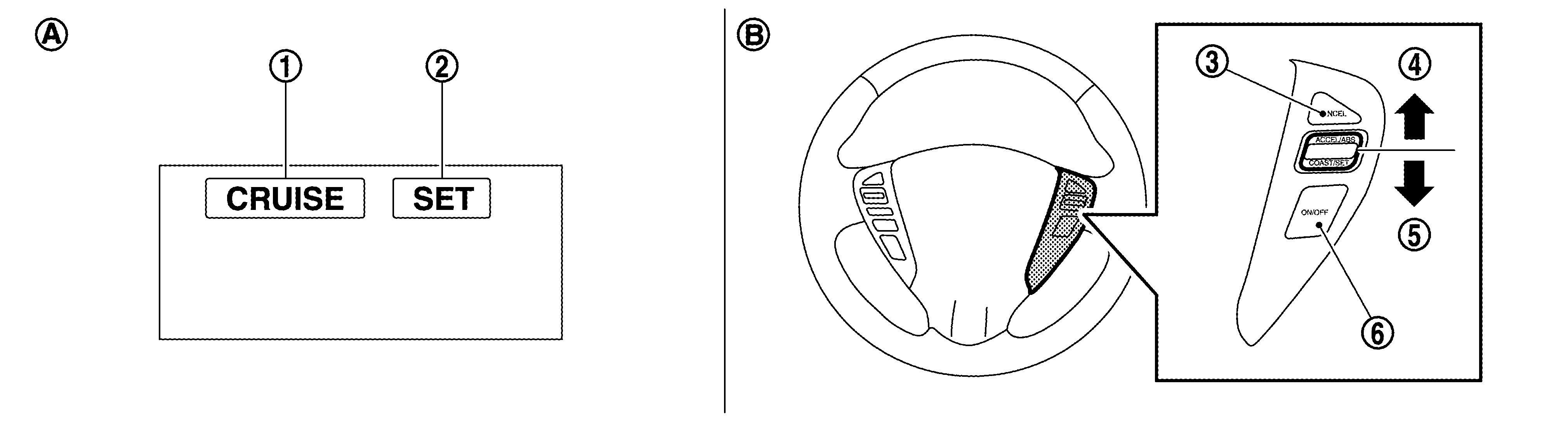

Fig 1: Automatic Speed Control Device (ASCD) Switch Name And Function
GNSJSBIA1227ZZ-227Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 CRUISE indicator WHITE-2 SET indicator* WHITE-3 CANCEL switch
WHITE-4 ACCEL/RES switch WHITE-5 COAST/SET switch WHITE-6 ASCD MAIN switch
WZ-A On the combination meter WZ-B On the steering wheel

*: Not applicable
