Engine Unit: Setting

1. On (M/T models), remove flywheel.
   • Secure flywheel using suitable tool and remove bolts.

     Tool number

     : KV11105210 (J-44716)

     CAUTION:

     • Do not disassemble flywheel.
     • Do not place flywheel with signal plate facing down.
     • When handling signal plate, take care not to damage or scratch it.
     • Handle signal plate in a manner that prevents it from becoming magnetized.
2. On (CVT models), remove driveplate.
   • Secure driveplate using suitable tool and remove bolts.

     Tool number

     : KV11105210 (J-44716)

     CAUTION:

     • Do not disassemble flywheel.
     • Do not place flywheel or drive plate with signal plate facing down.
     • When handling signal plate, take care not to damage or scratch it.
     • Handle signal plate in a manner that prevents it from becoming magnetized.
3. Lift the engine with a hoist to install it onto a widely used engine stand.
   CAUTION:

   • Use the engine stand that has a load capacity approximately 150 kg (331 lb) or more large enough for supporting the engine weight.
   • If the load capacity of stand is not adequate, remove the following parts beforehand to reduce the potential risk of overturning stand.
     • Intake manifold. Refer to EXPLODED VIEW .
     • Exhaust manifold. Refer to REMOVAL AND INSTALLATION .
     • Rocker cover. Refer to EXPLODED VIEW .
   NOTE:

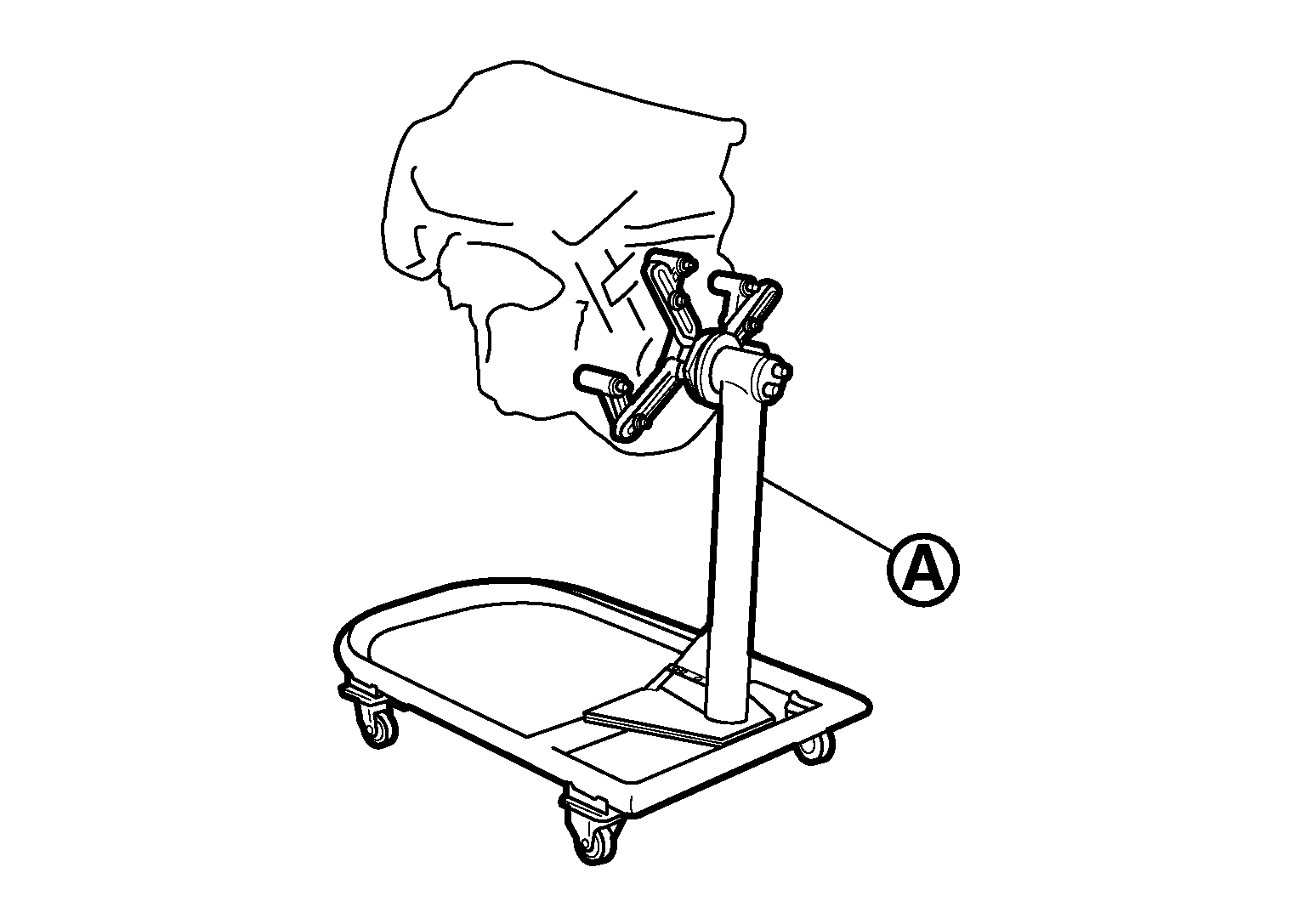

   The figure shows an example of widely used engine stand (A) that can support the mating surface of transaxle with flywheel removed.

   Fig 1: Identifying Engine Stand

   Courtesy of NISSAN NORTH AMERICA, INC.
   CAUTION:

   Before removing the hanging chains, check the engine stand is stable and there is no risk of overturning.

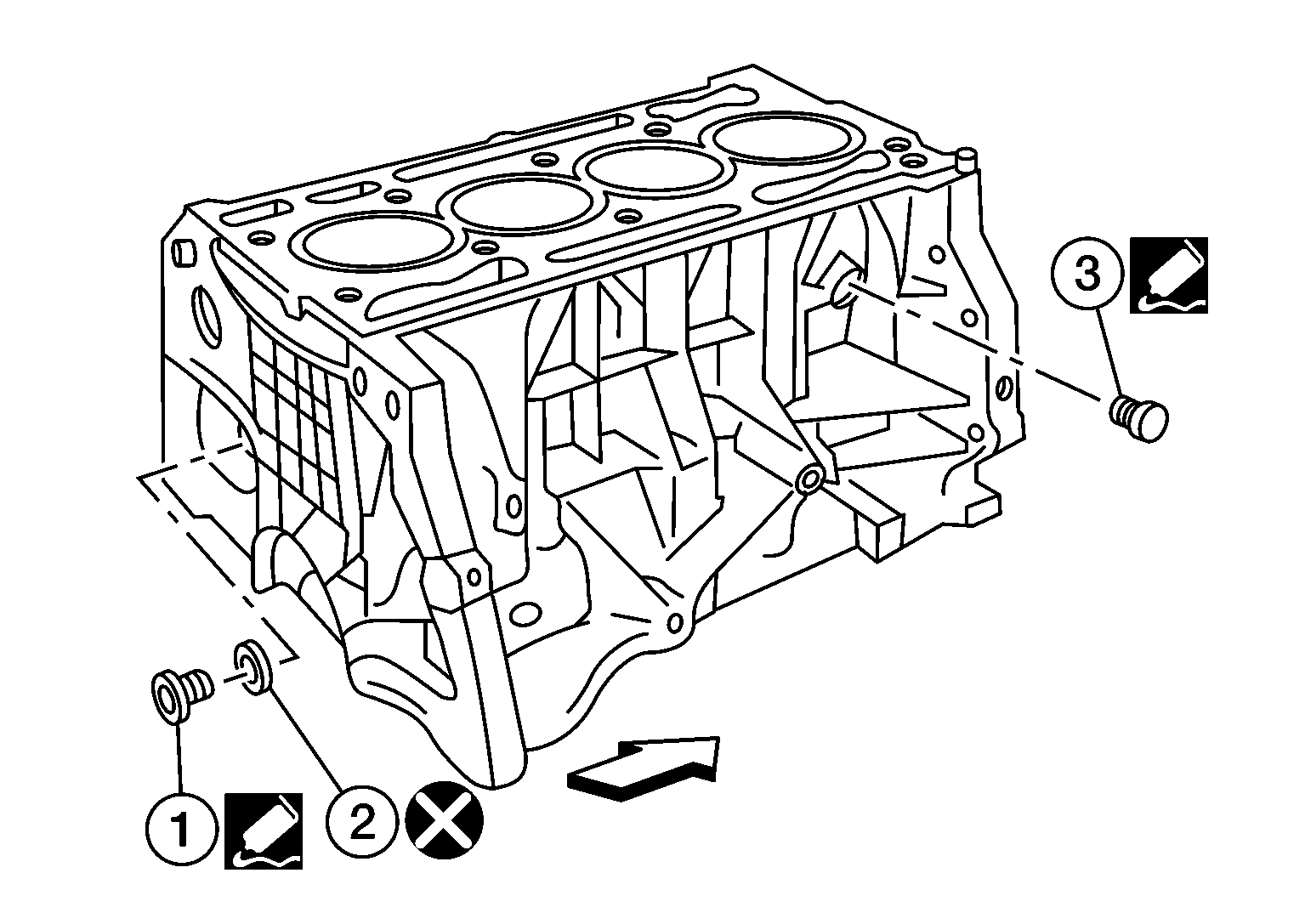

Fig 2: Locating Water Drain Plug (1)

Courtesy of NISSAN NORTH AMERICA, INC.

: Engine front

Use Genuine Silicone RTV Sealant or equivalent.  Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
