Exploded View With Torque Specifications

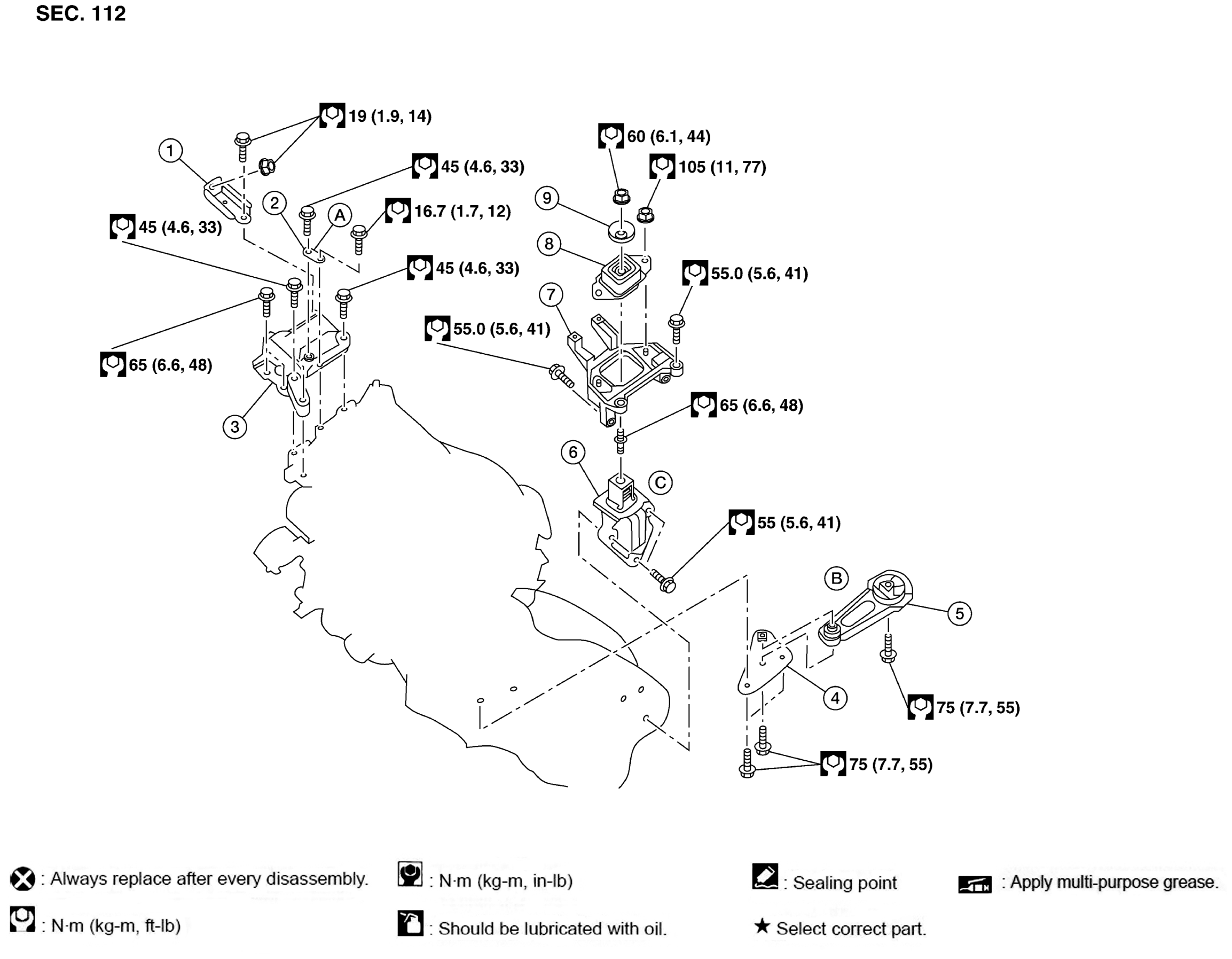

Fig 1: Exploded View Of Engine Assembly With Torque Specifications (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Engine mounting (RH) stay	2.	Engine mount (RH) stay	3.	Engine mounting insulator (RH)
4.	Rear engine mounting bracket	5.	Rear torque rod	6.	Engine mounting bracket (LH)
7.	Engine mounting bracket (LH)	8.	Engine mounting insulator (LH)	9.	Mass damper
A.	Front mark	B.	Transaxle (lower)	C.	CVT models

CAUTION:

Check that the stud bolt (* 2) is tight at the specified torque before tightening the nut (* 1) shown. [Stud bolt (* 2) may be loosened after loosening the nut (* 1)]

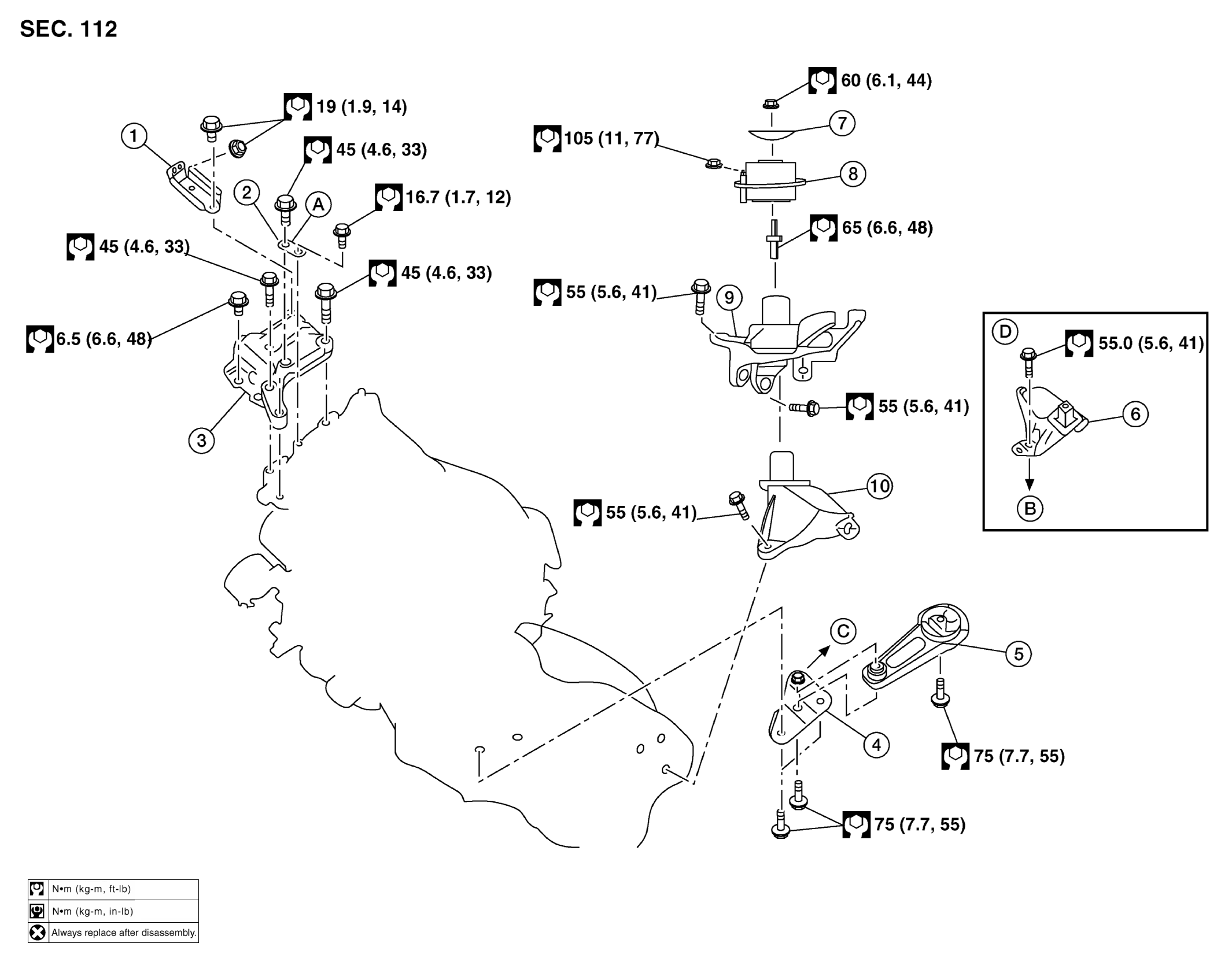

Fig 2: Exploded View Of Engine Assembly With Torque Specifications (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Engine mounting (RH) stay	2.	Engine mount (RH) stay	3.	Engine mounting insulator (RH)
4.	Rear engine mounting bracket	5.	Rear torque rod	6.	Engine mounting bracket (LH)
7.	Mass damper	8.	Engine mounting insulator (LH)	9.	Engine mounting bracket (LH)
10.	Engine mount bracket (LH)	A.	Front mark	B.	Transaxle (upper)
C.	Transaxle (lower)	D.	M/T models

CAUTION:

Check that the stud bolt (* 2) is tight at the specified torque before tightening the nut (* 1) shown. [Stud bolt (* 2) may be loosened after loosening the nut (* 1)]
