Exploded View With Torque Specifications

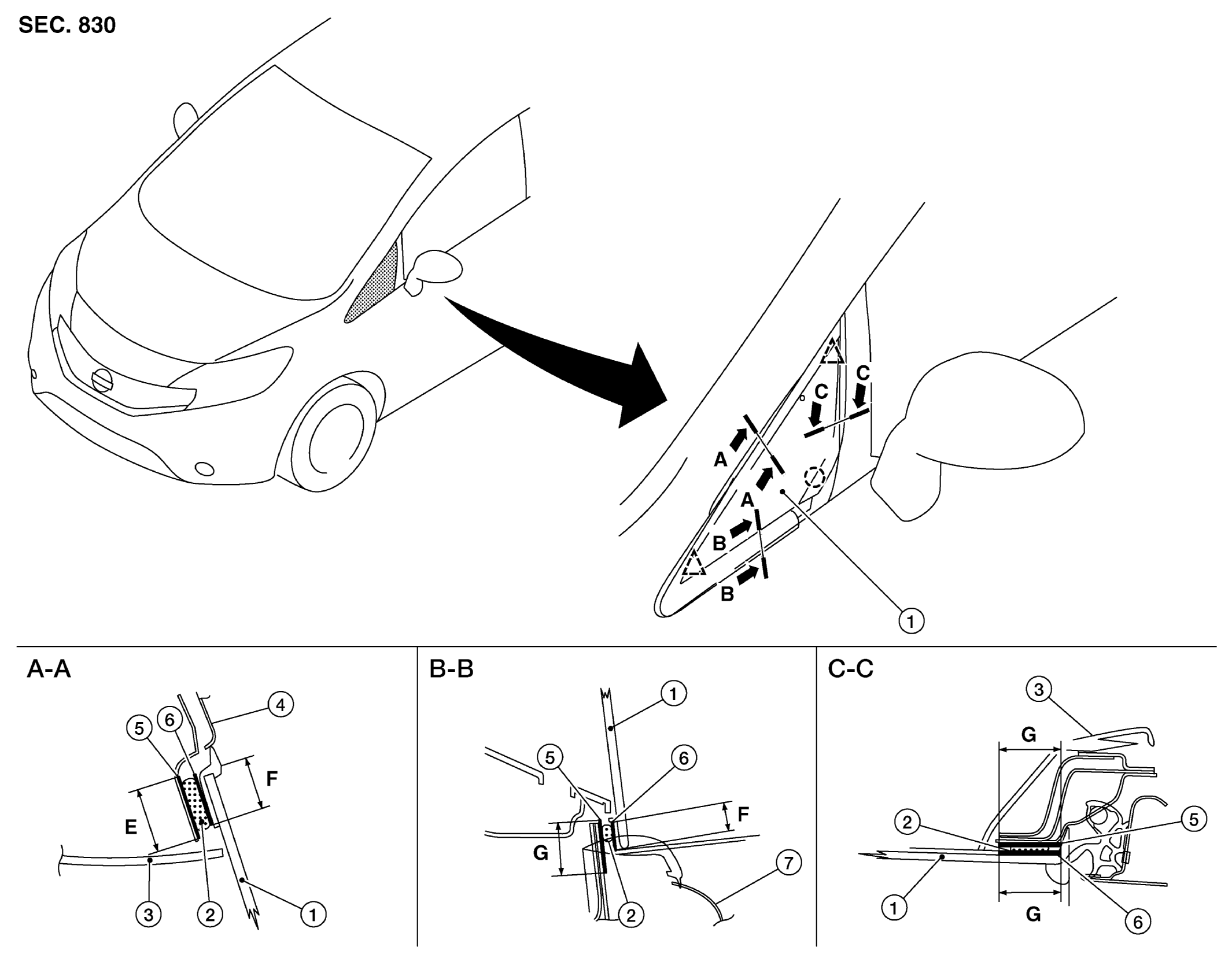

Fig 1: Exploded View Of Opera Window

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Opera window glass	2.	Adhesive	3.	Front pillar finisher
4.	Body side outer	5.	Body primer	6.	Primer
7.	Front fender	E.	12.0 mm (0.47 in)	F.	11.0 mm (0.43 in)
G.	20.0 mm (0.79 in)		Clip		Pawl
