Removal And Installation: Removal

  1. Remove power window and door lock/unlock switch (RH) finisher door handle pull escutcheon.
  2. Remove screw (B) from power window and door lock/unlock switch (RH) finisher.

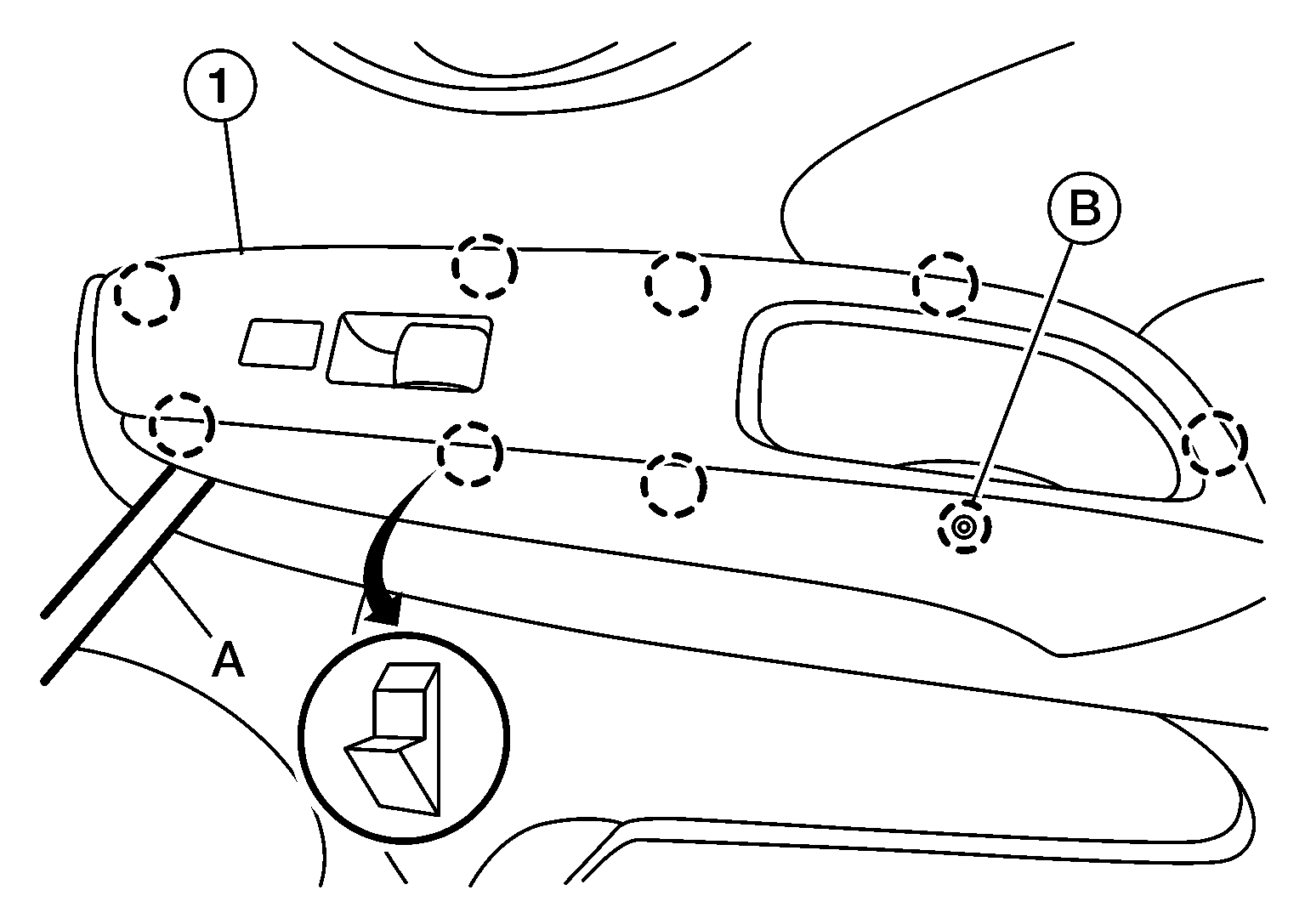

    Fig 1: Screw (B) And Power Window And Door Lock/Unlock Switch (RH) Finisher
    GNSAWKIA2505ZZ-505Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove power window and door lock/unlock switch (RH) finisher (1) using a suitable tool (A).

    MARU-H : Pawl

  4. Disconnect the harness connector from the power window and door lock/unlock switch (RH).
  5. Release pawls and remove power window and door lock/unlock switch (1) from power window and door lock/unlock switch (RH) finisher (2) using a suitable tool.
    Fig 2: Pawls, Power Window, Door Lock/Unlock Switch (1), Power Window And Door Lock/Unlock Switch (Rh) Finisher (2)
    GNSAWKIA2507ZZ-507Courtesy of NISSAN NORTH AMERICA, INC.

    MARU-H : Pawl

    CAUTION:

    Do not bend back the pawls on the switch finisher too far or damage may occur.
