Exploded View With Torque Specifications

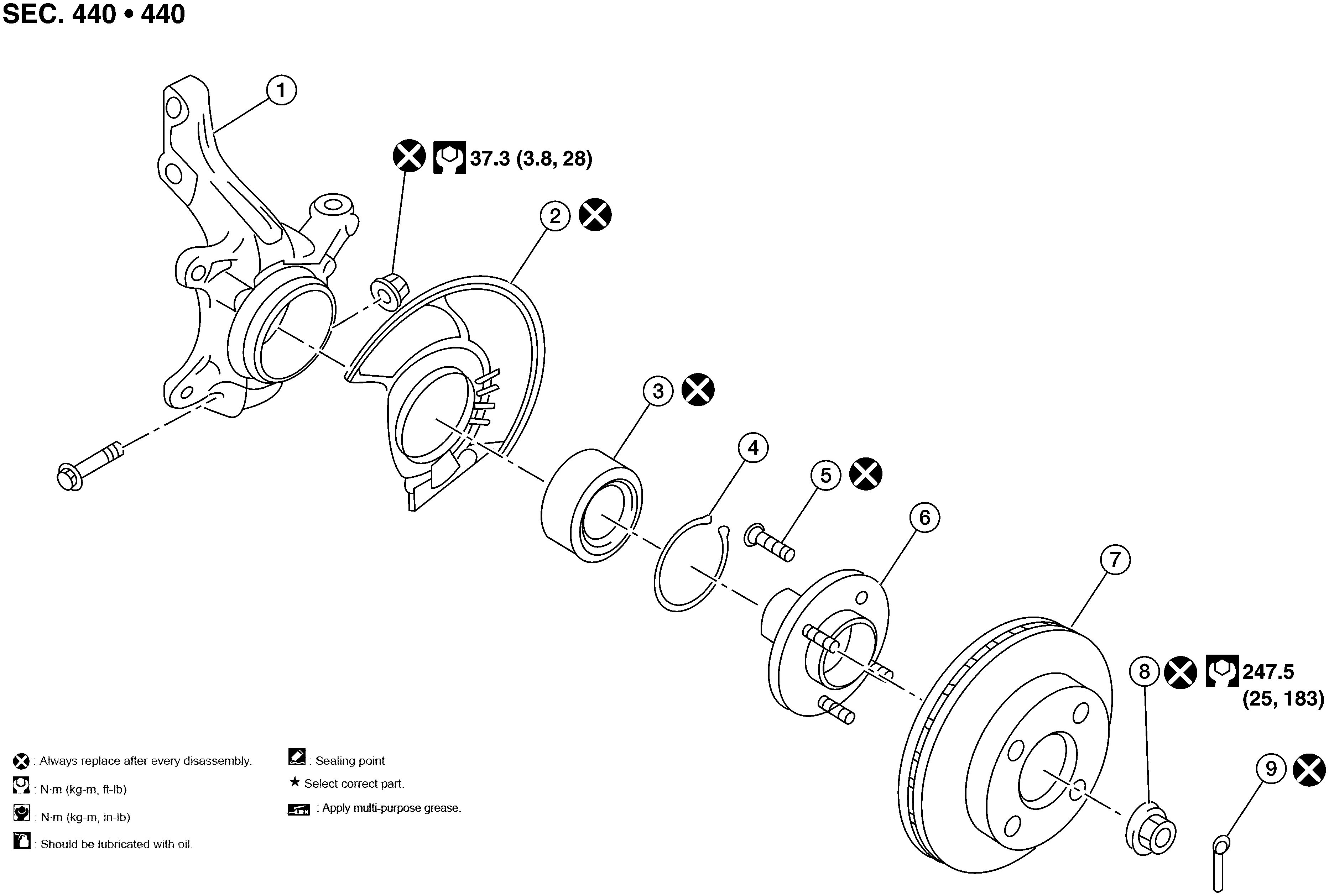

Fig 1: Exploded View Of Front Wheel Hub And Knuckle With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering knuckle	2.	Splash guard	3.	Wheel bearing
4.	Snap ring	5.	Wheel stud	6.	Wheel hub
7.	Disc brake rotor	8.	Wheel hub lock nut	9.	Cotter pin
