Removal And Installation: Removal

  1. Remove the glove box. Refer to REMOVAL AND INSTALLATION .
  2. Remove the remote keyless entry receiver bolt (A).

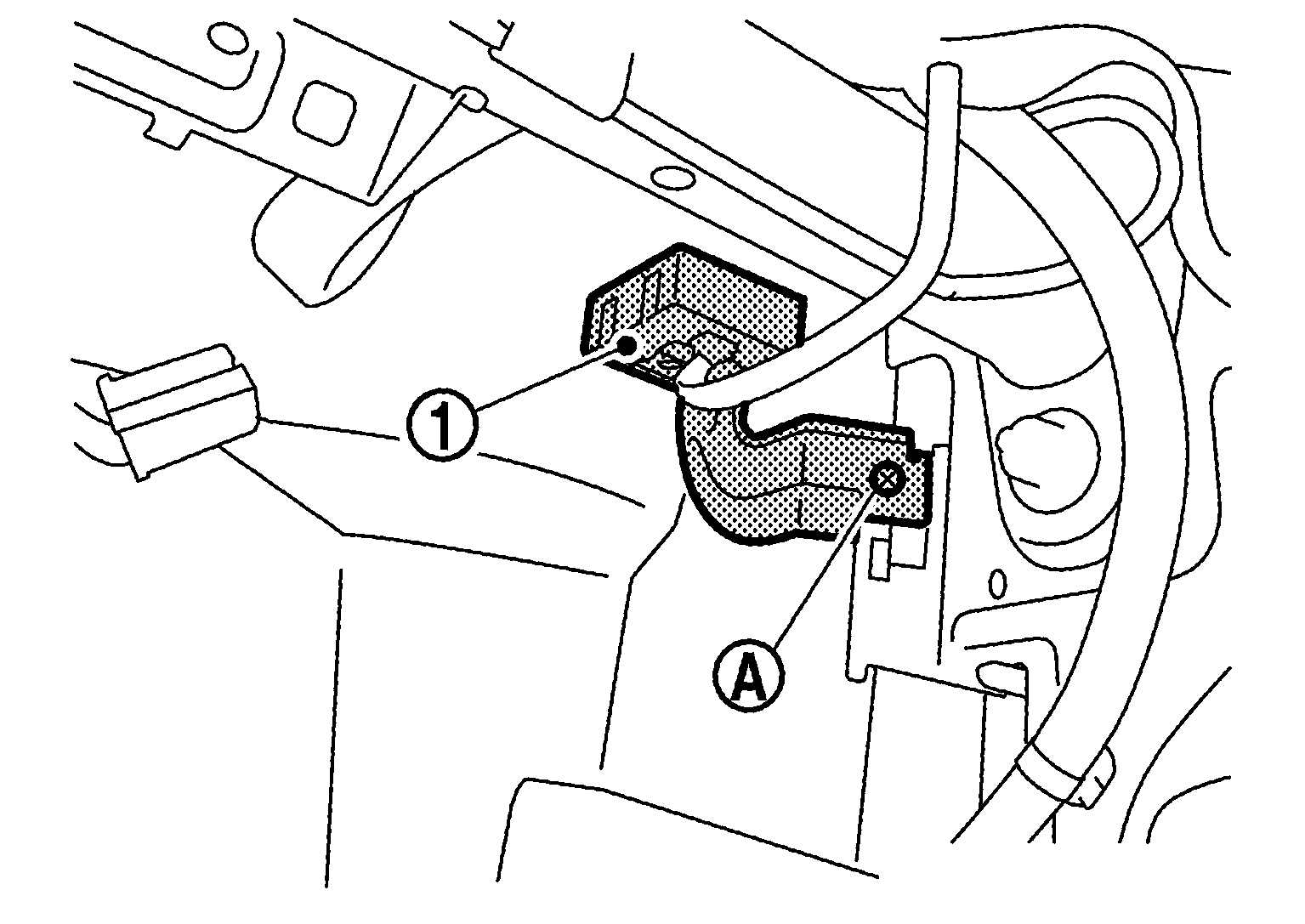

    Fig 1: Identifying Remote Keyless Entry Receiver And Bolt
    G08204132Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect the harness connector from remote keyless entry receiver and remove remote keyless entry receiver (1)
