Intelligent Key System/Engine Start Function: Wiring Diagram

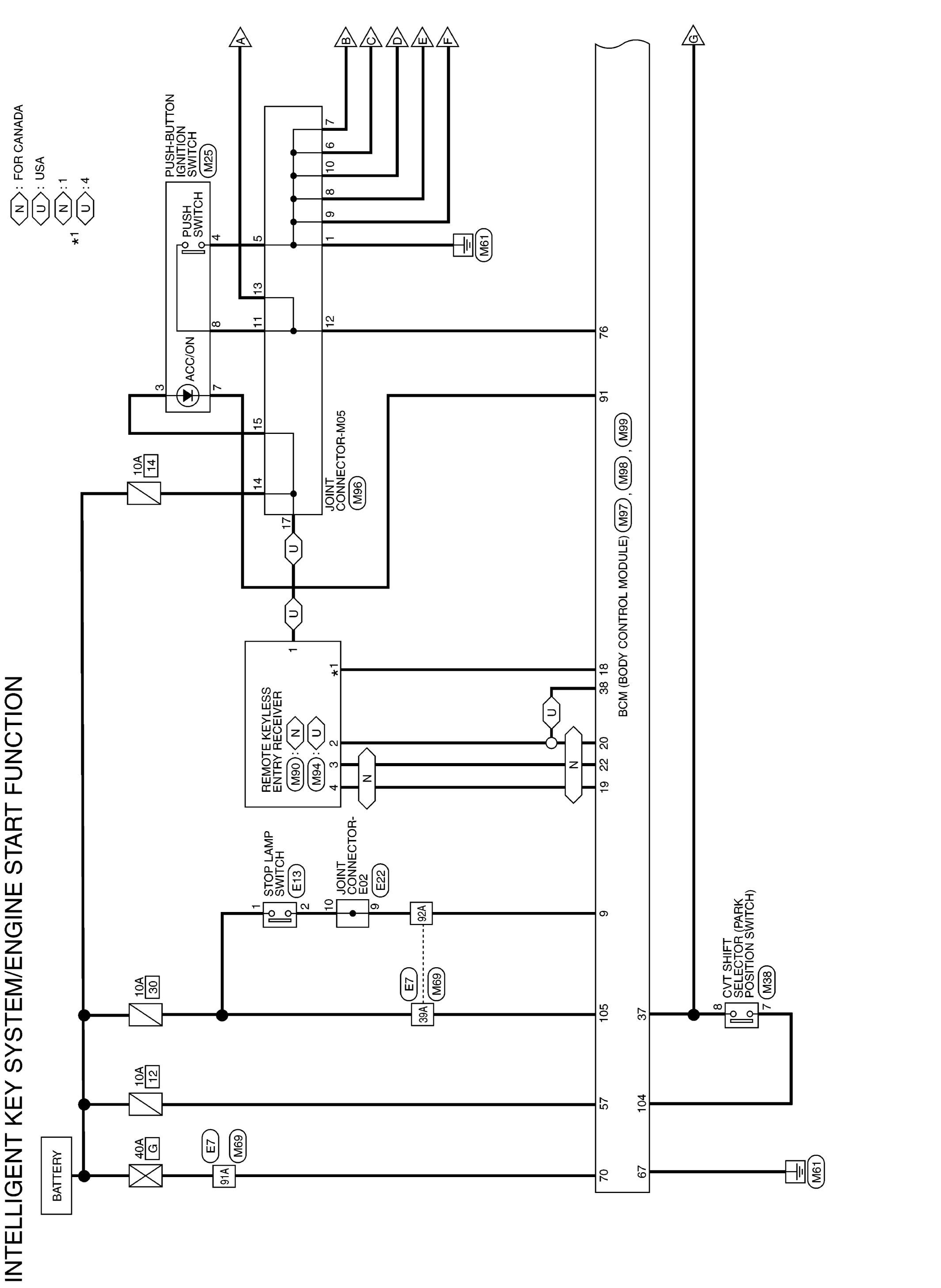

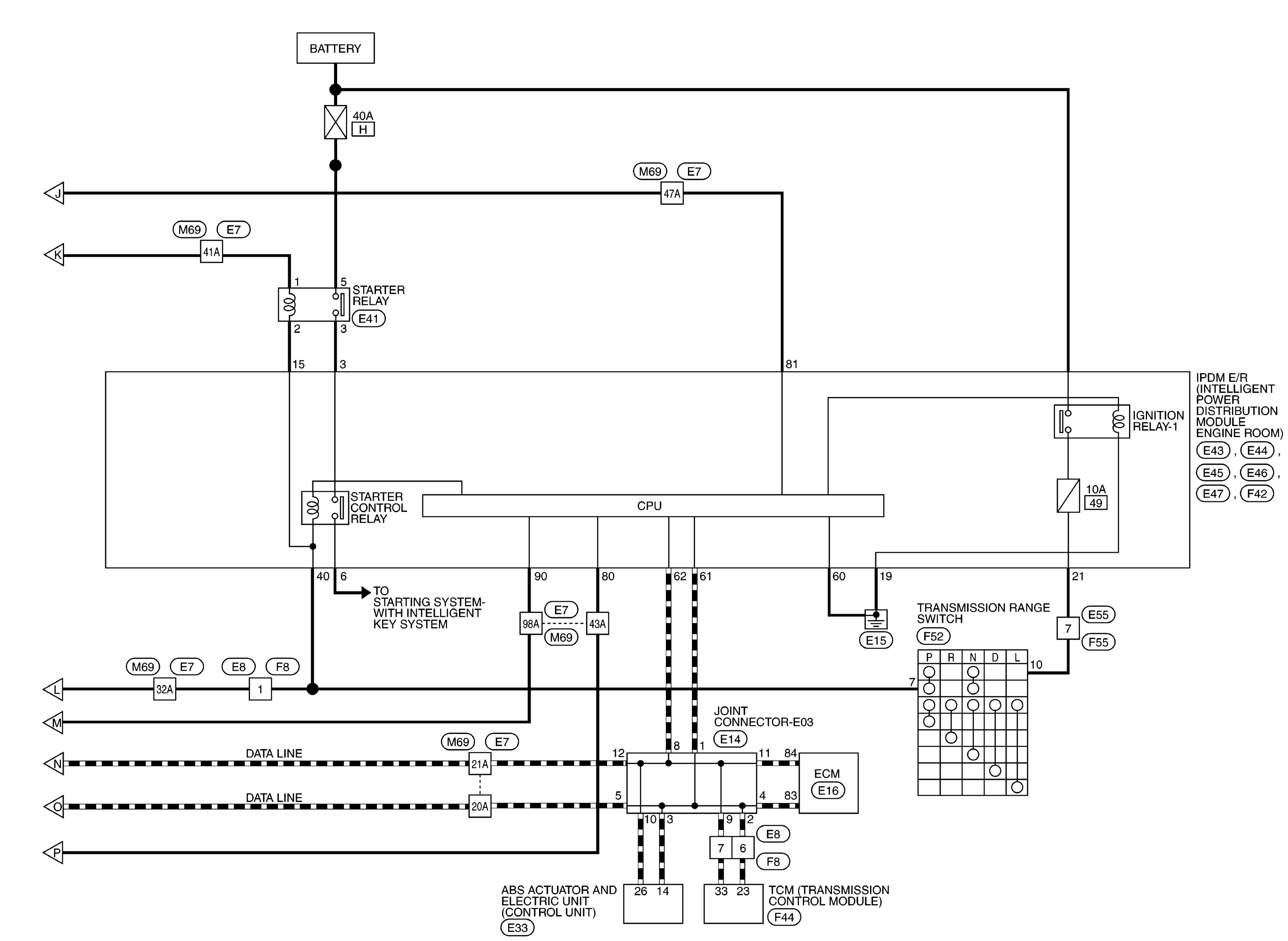

Fig 1: Intelligent Key System/Engine Start Function Wiring Diagram (1 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

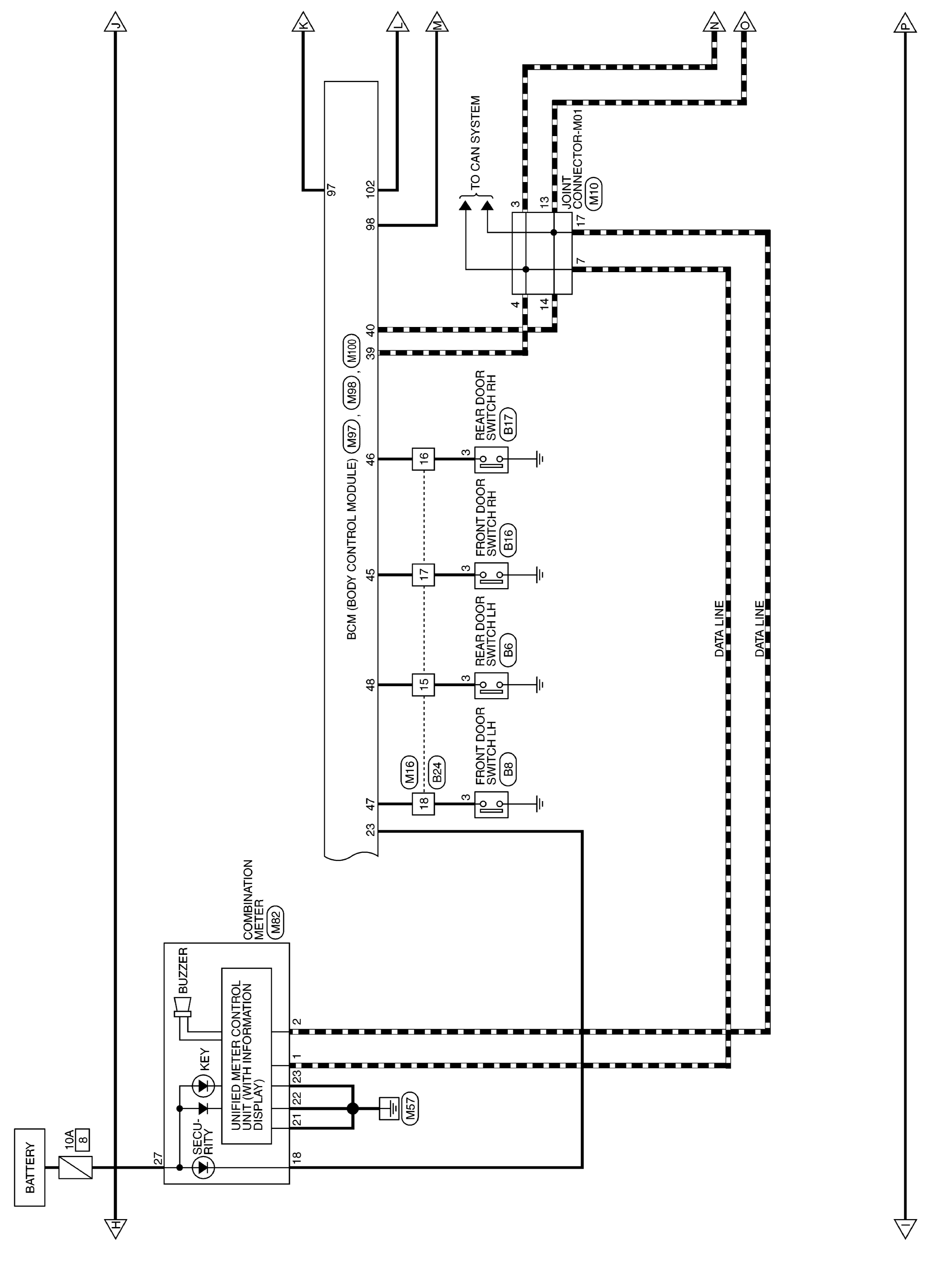

Fig 2: Intelligent Key System/Engine Start Function Wiring Diagram (2 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

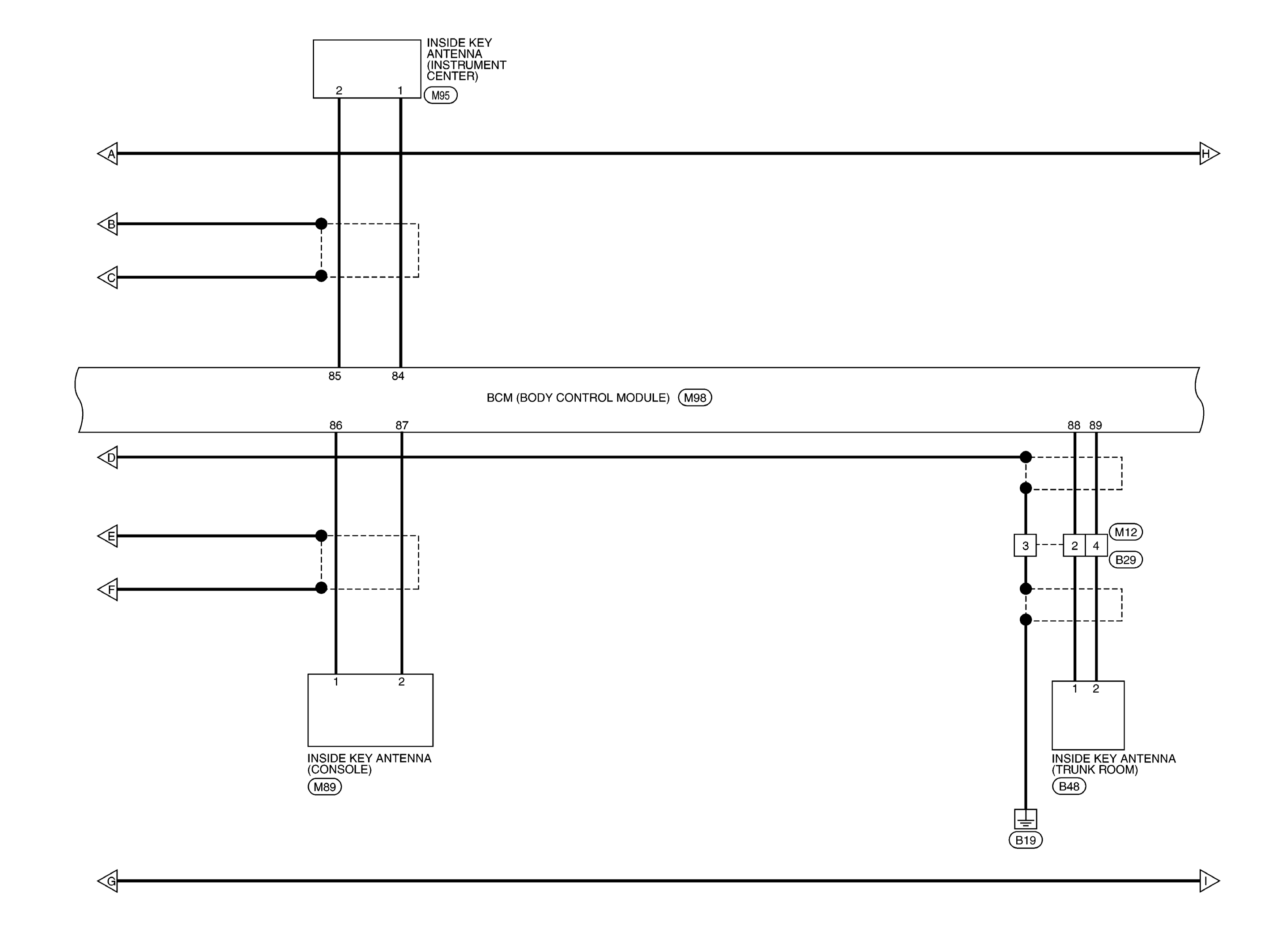

Fig 3: Intelligent Key System/Engine Start Function Wiring Diagram (3 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 4: Intelligent Key System/Engine Start Function Wiring Diagram (4 Of 4)

Courtesy of NISSAN NORTH AMERICA, INC.

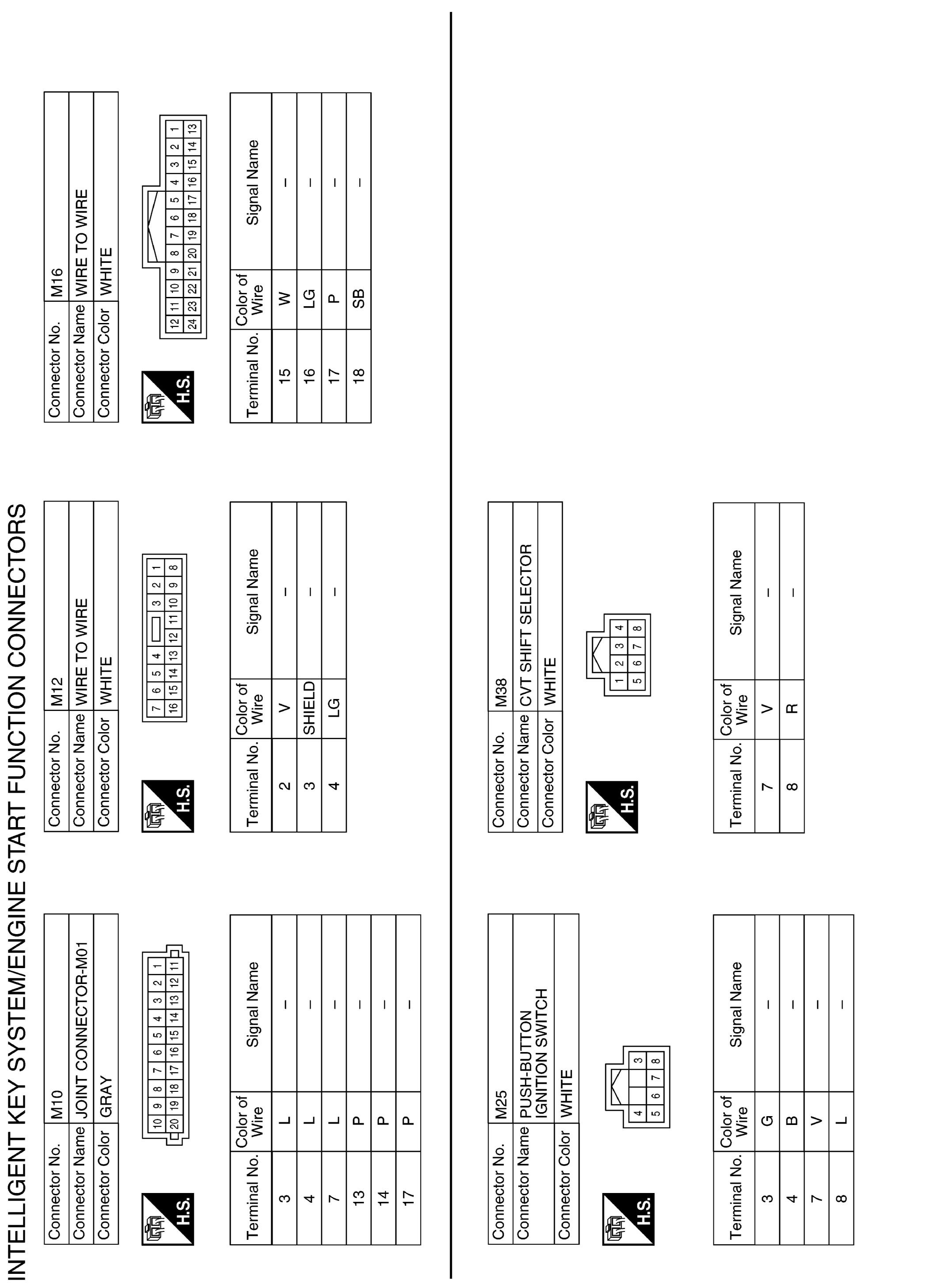

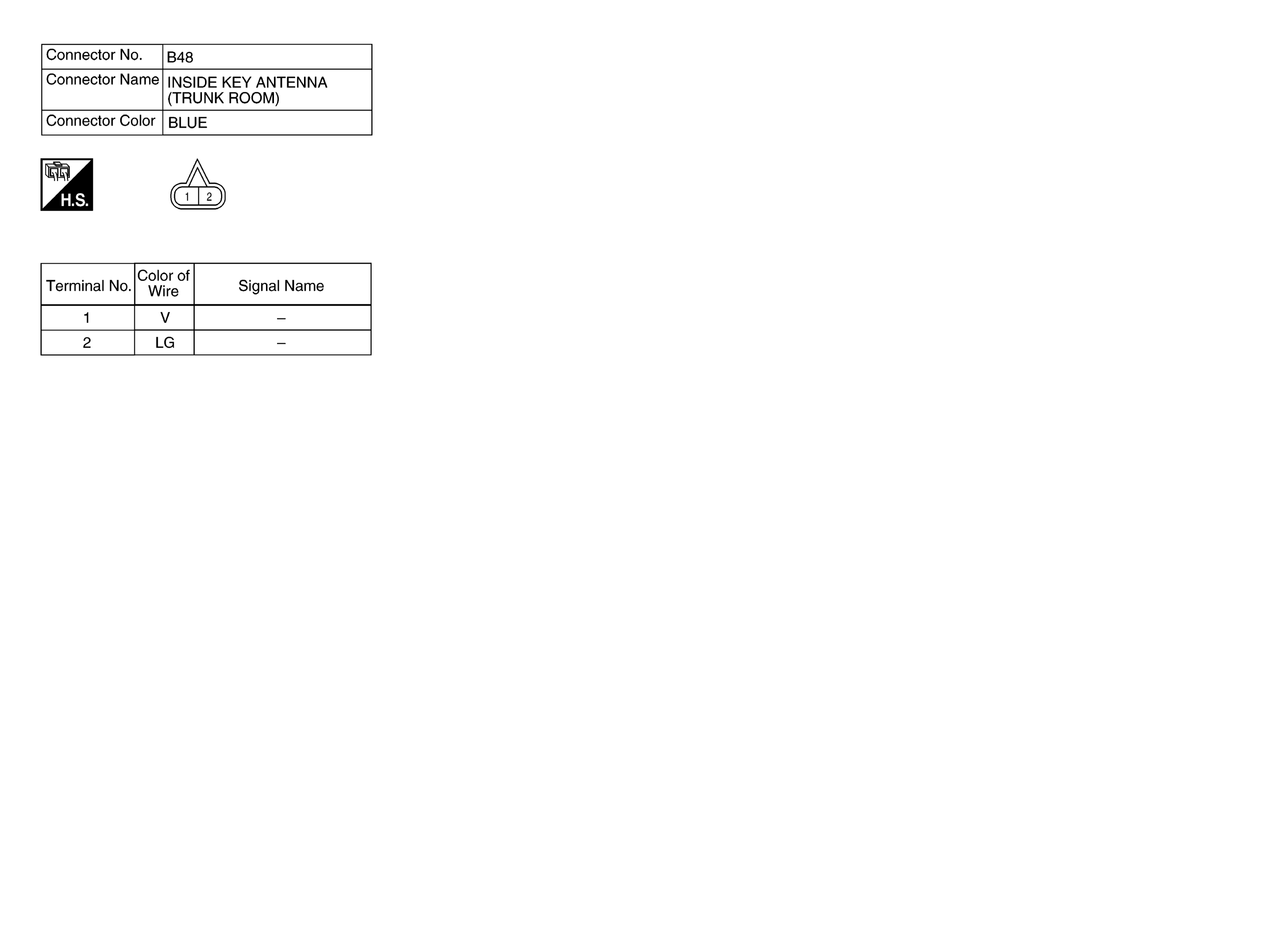

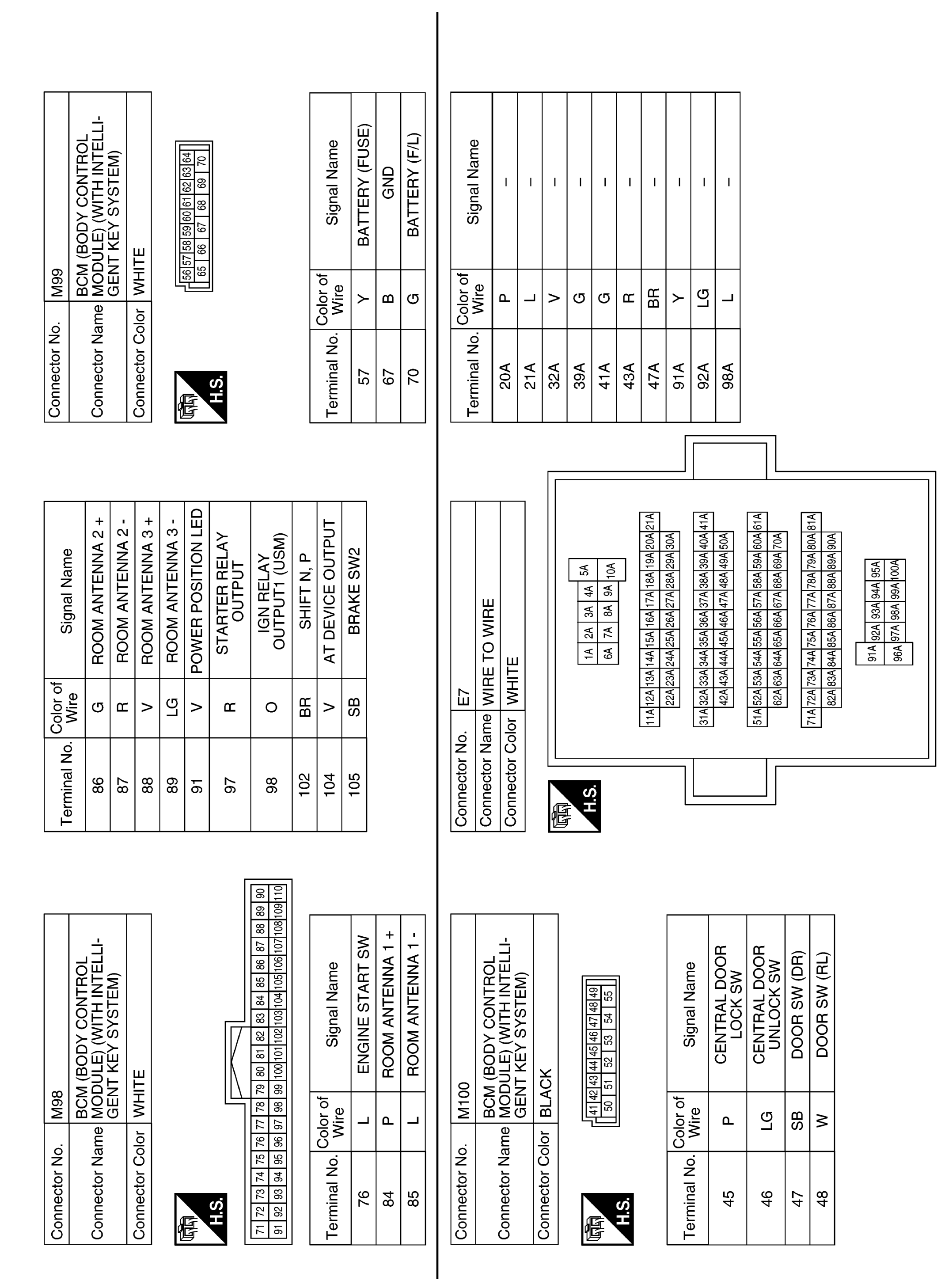

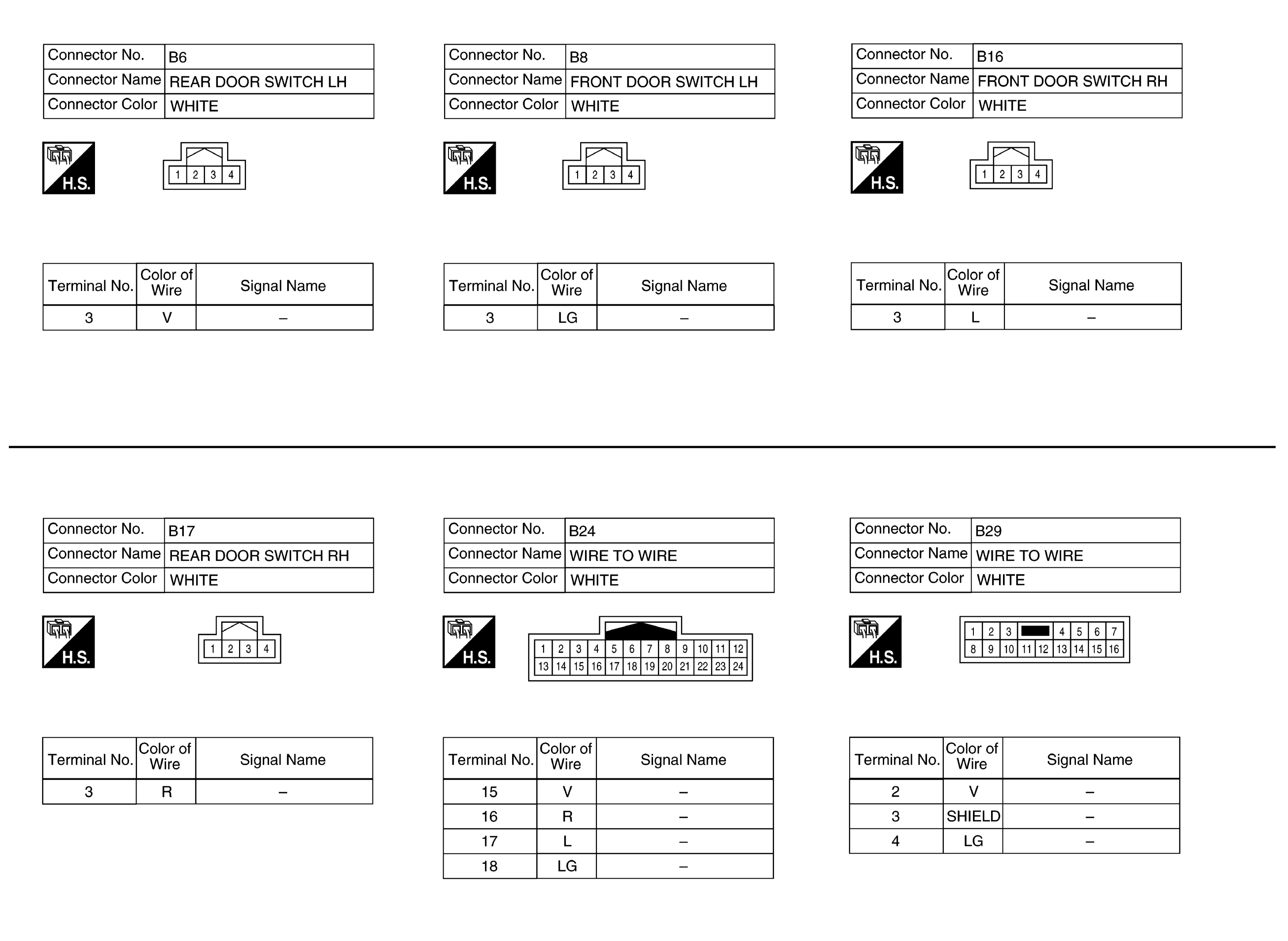

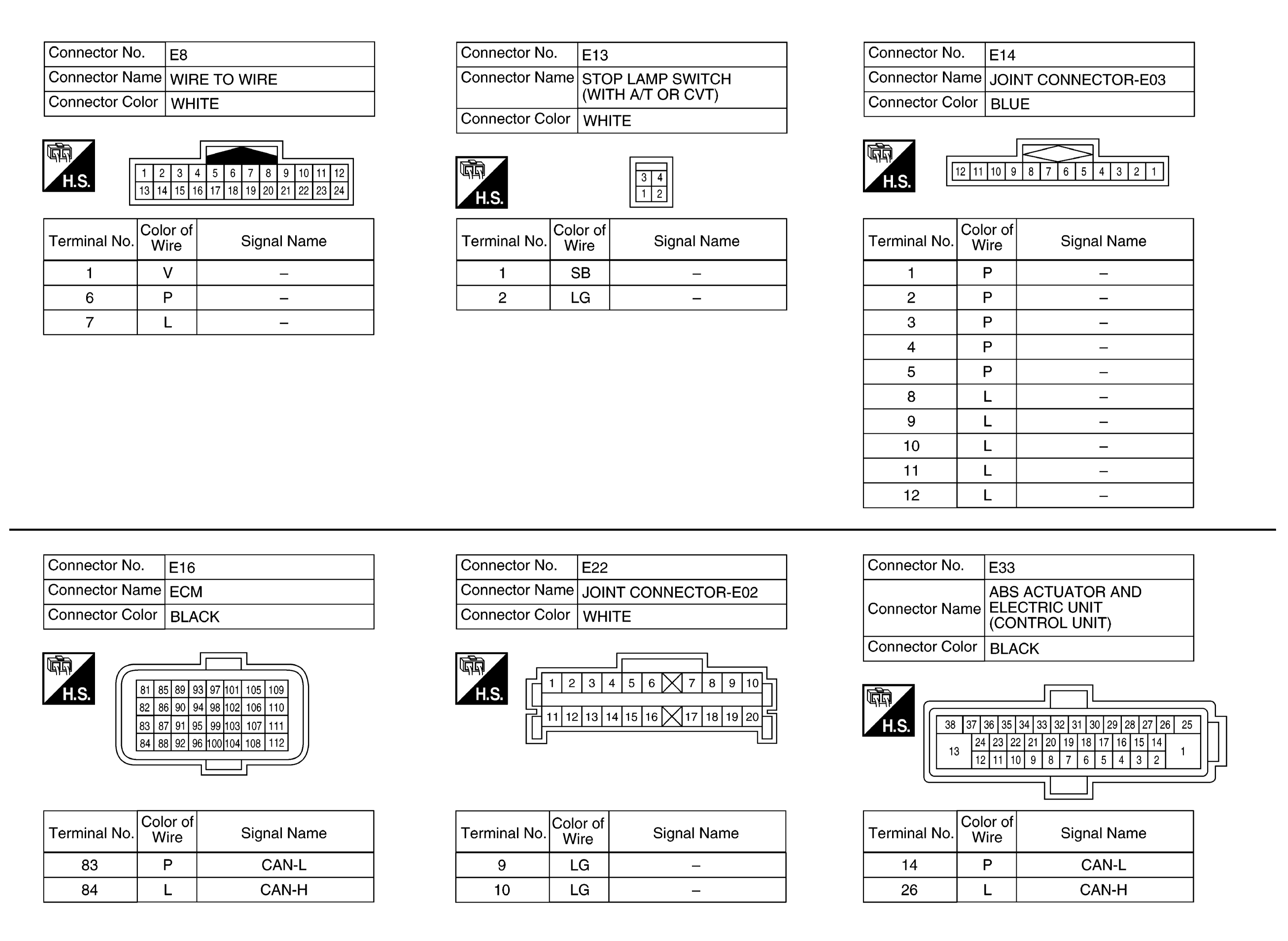

Fig 5: Intelligent Key System/Engine Start Function Connector End View (1 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

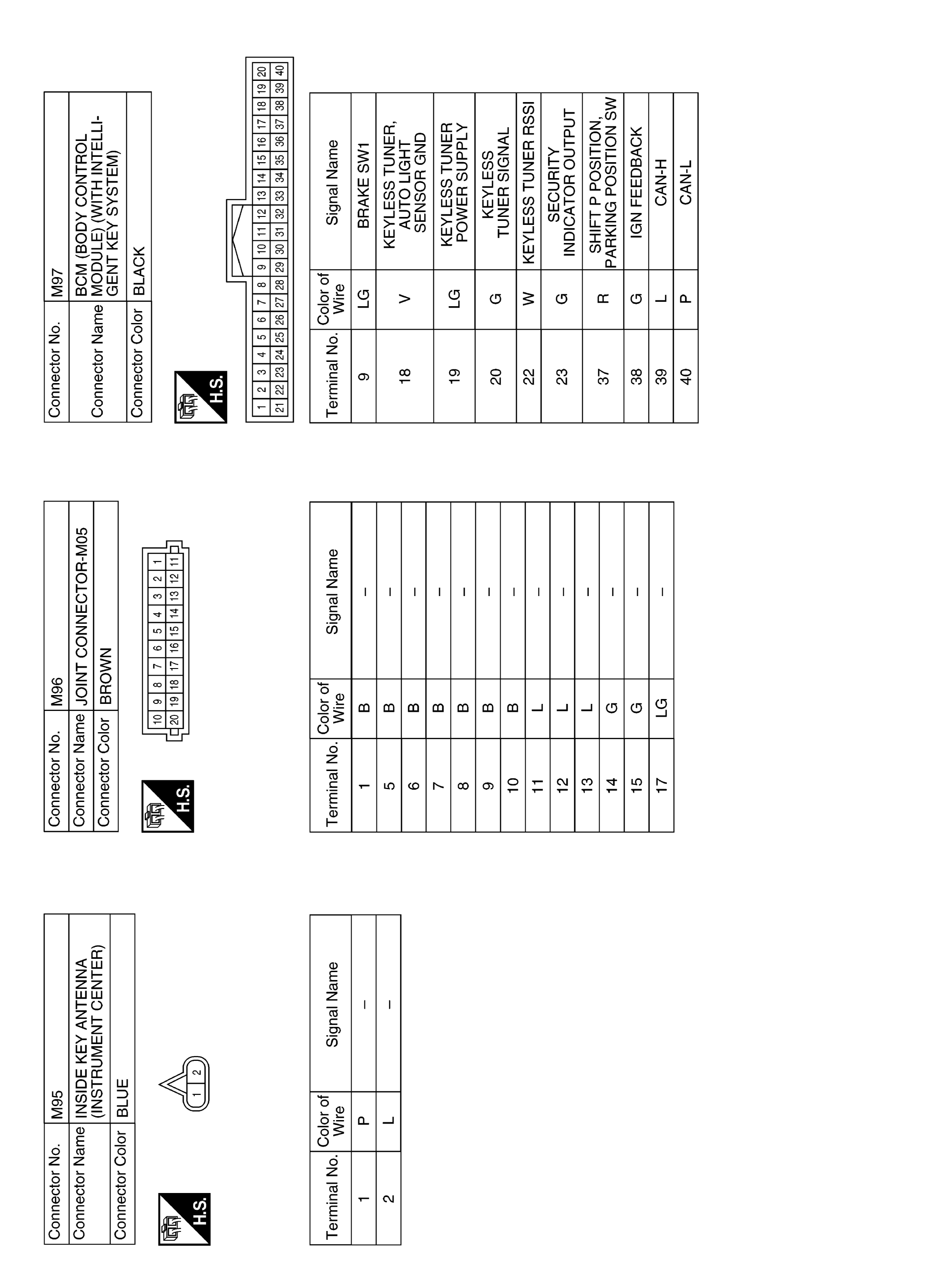

Fig 6: Intelligent Key System/Engine Start Function Connector End View (2 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

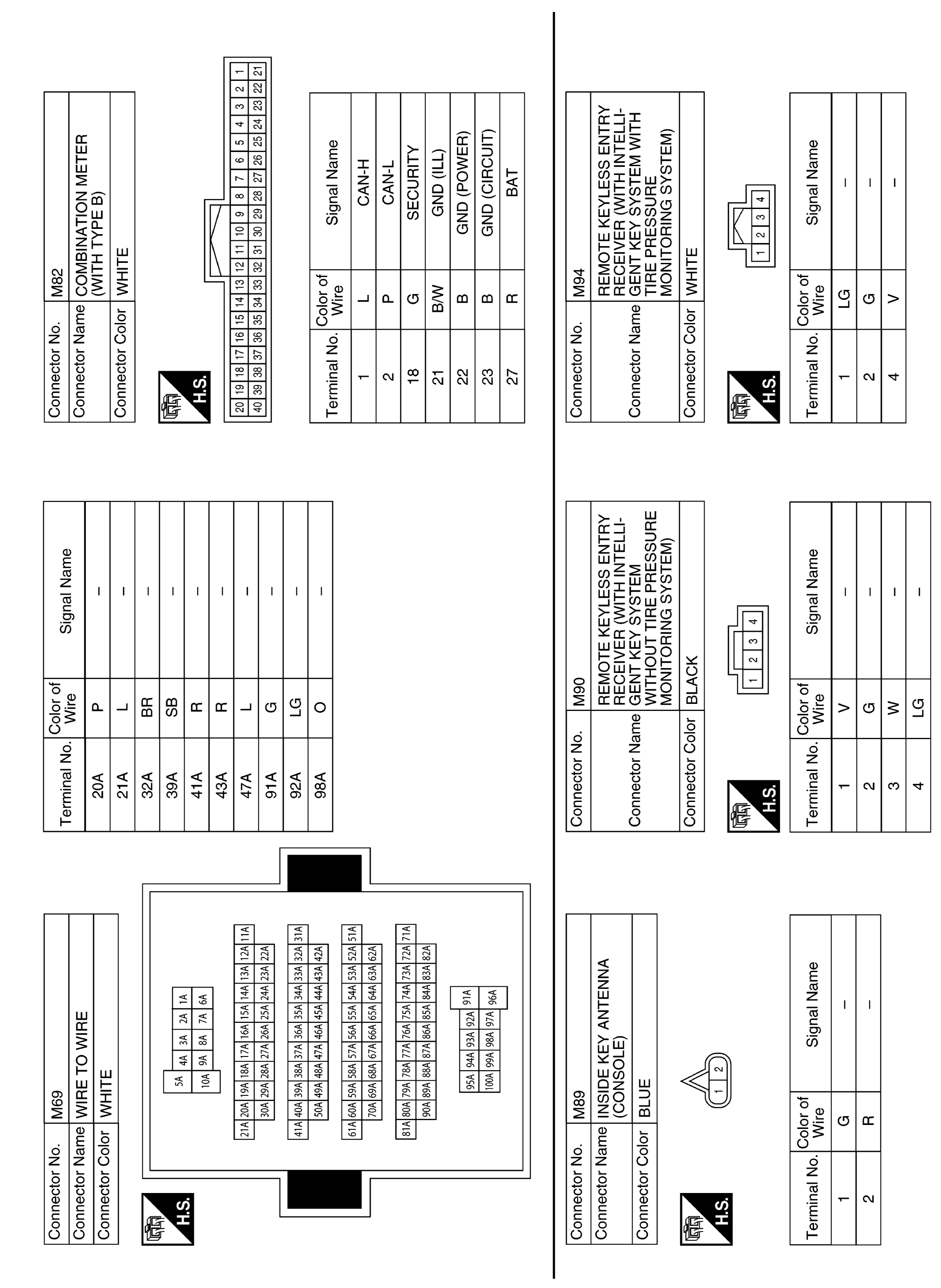

Fig 7: Intelligent Key System/Engine Start Function Connector End View (3 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

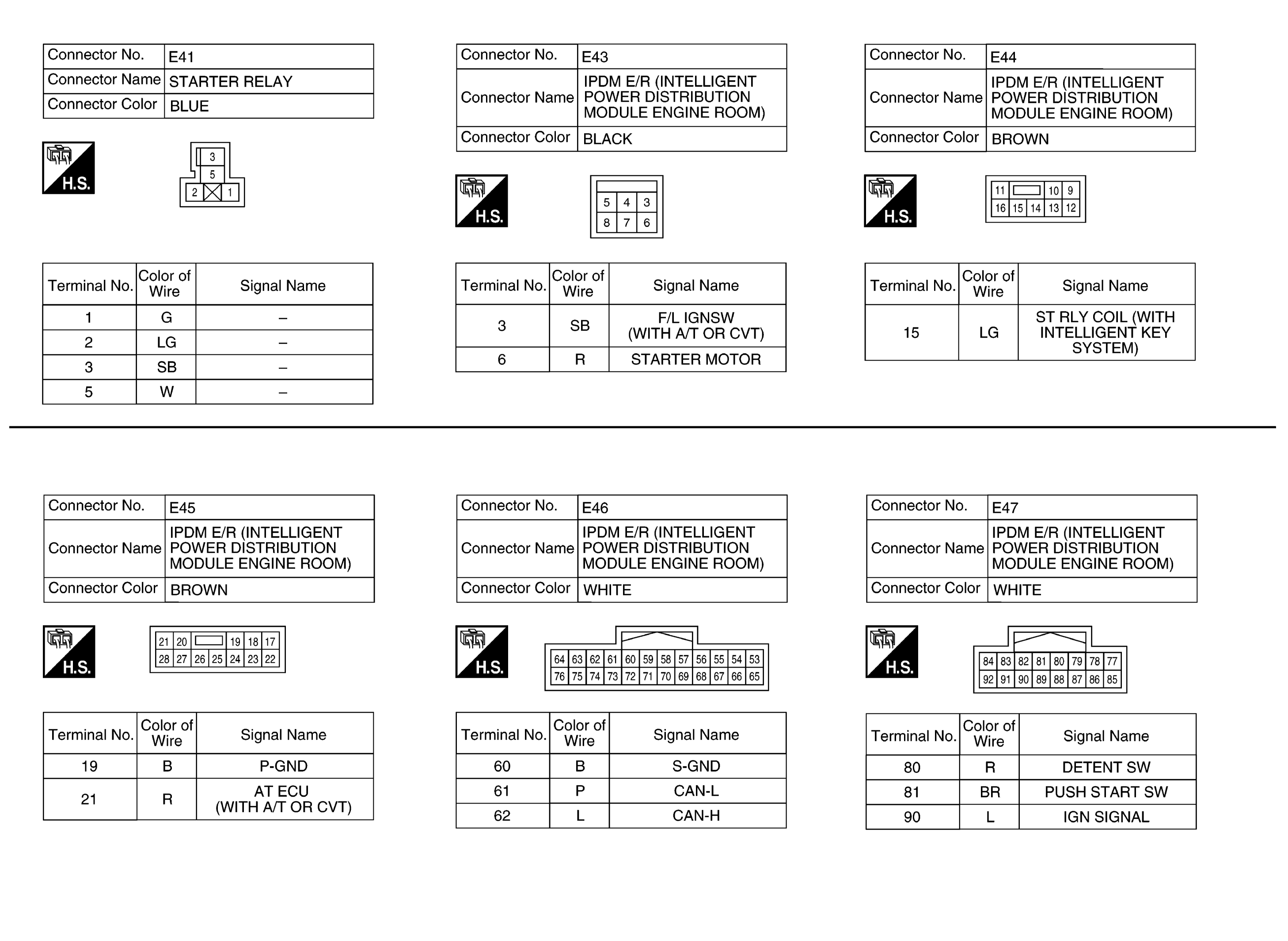

Fig 8: Intelligent Key System/Engine Start Function Connector End View (4 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

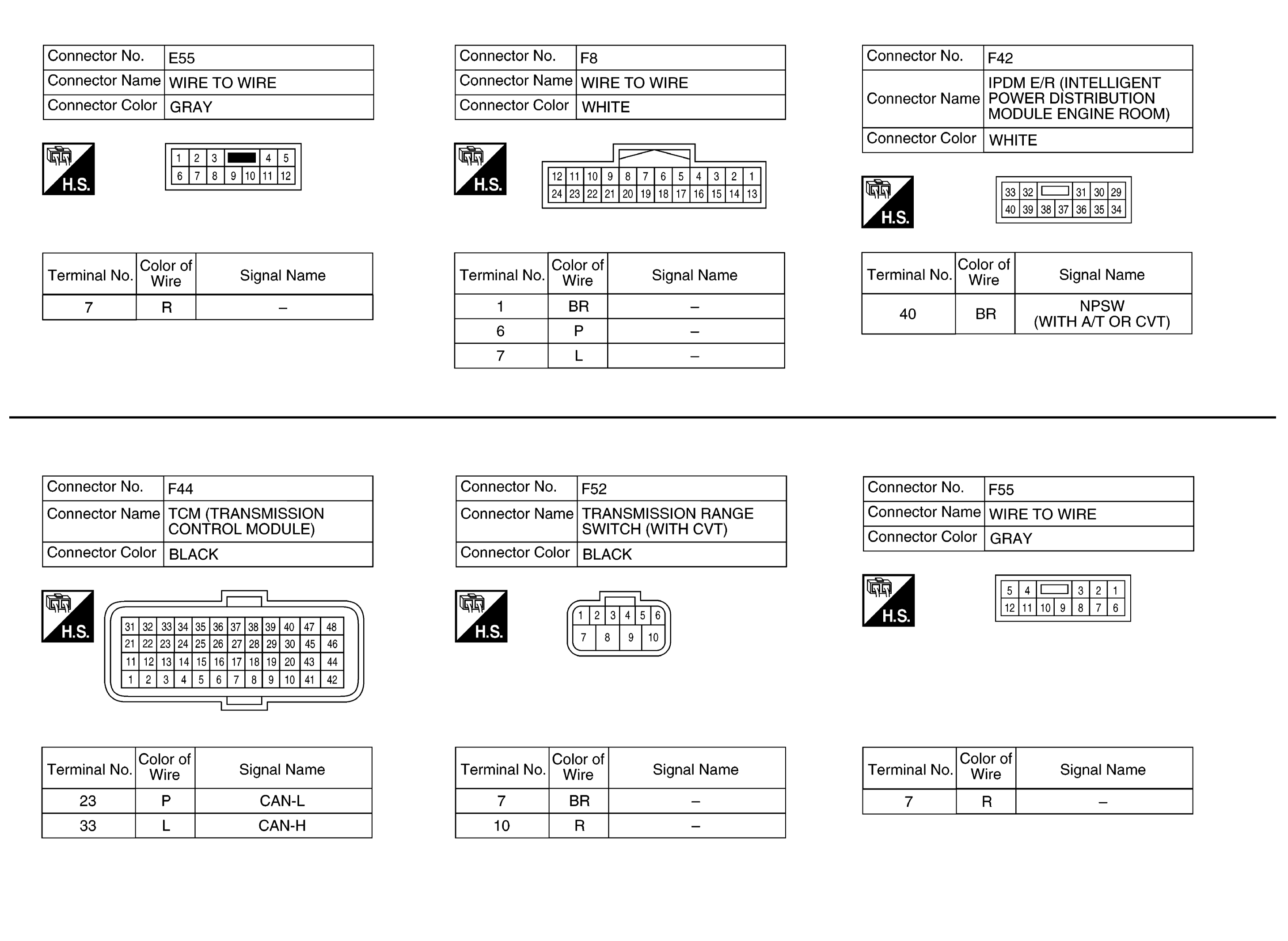

Fig 9: Intelligent Key System/Engine Start Function Connector End View (5 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 10: Intelligent Key System/Engine Start Function Connector End View (6 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 11: Intelligent Key System/Engine Start Function Connector End View (7 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 12: Intelligent Key System/Engine Start Function Connector End View (8 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 13: Intelligent Key System/Engine Start Function Connector End View (9 Of 9)

Courtesy of NISSAN NORTH AMERICA, INC.
