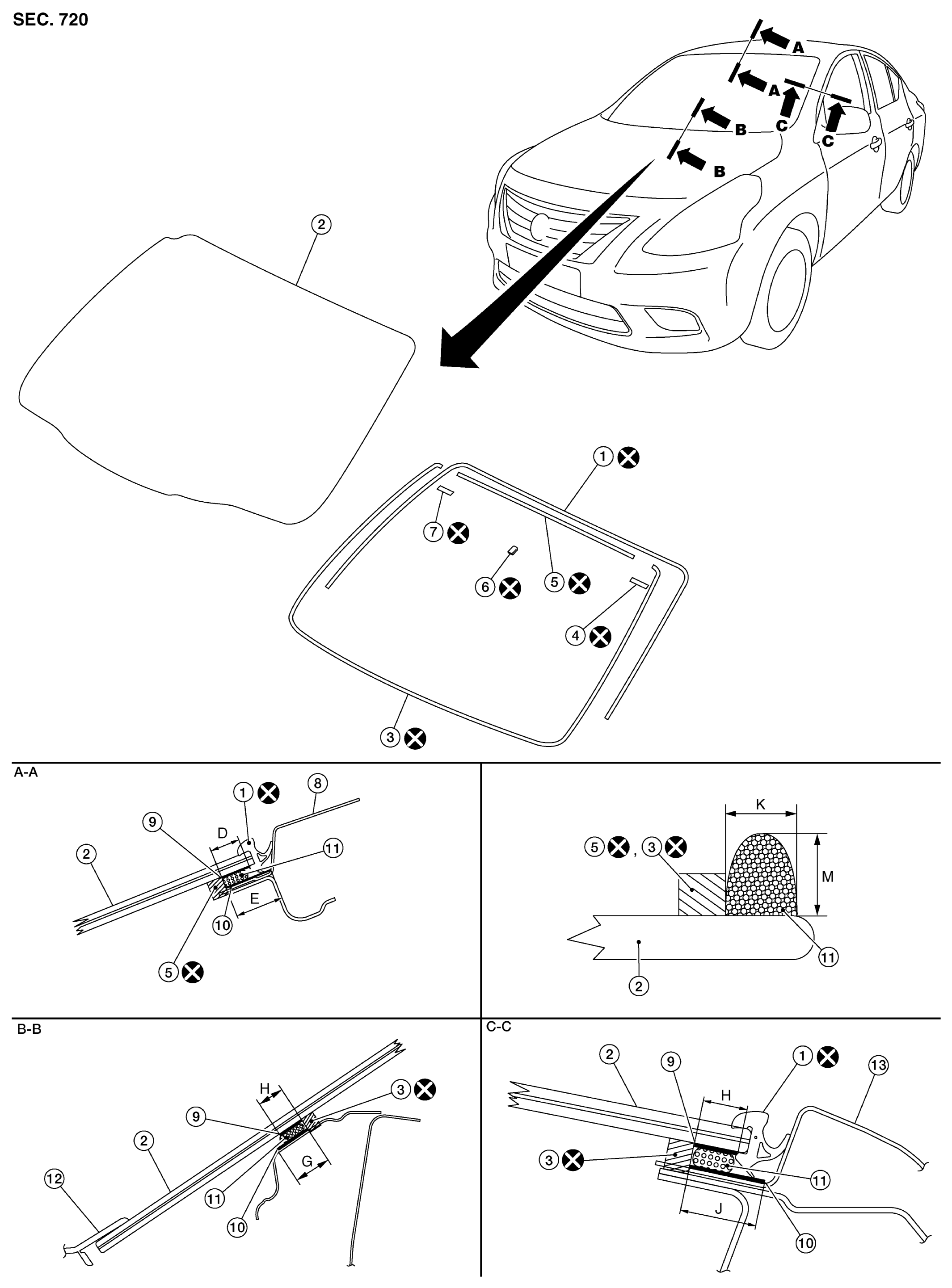

Exploded View With Torque Specifications
Unit: mm (in)
| 1. | Windshield glass molding | 2. | Windshield glass | 3. | Dam sealant rubber (lower) |
| 4. | Windshield glass holder (LH) | 5. | Dam sealant rubber (upper) | 6. | Inside mirror base |
| 7. | Windshield glass holder (RH) | 8. | Roof assembly | 9. | Glass primer |
| 10. | Body primer | 11. | Adhesive | 12. | Cowl top cover |
| 13. | Body side outer panel | D. | 10.0 (0.39) | G. | 19.5 (0.77) |
| H. | 8.0 (0.31) | J. | 19.0 (0.75) | K | 7.0 (0.28) |
| M | 12.0 (0.47) |
