System Description
›
System
›
Power Distribution System
›
System Diagram
System Diagram

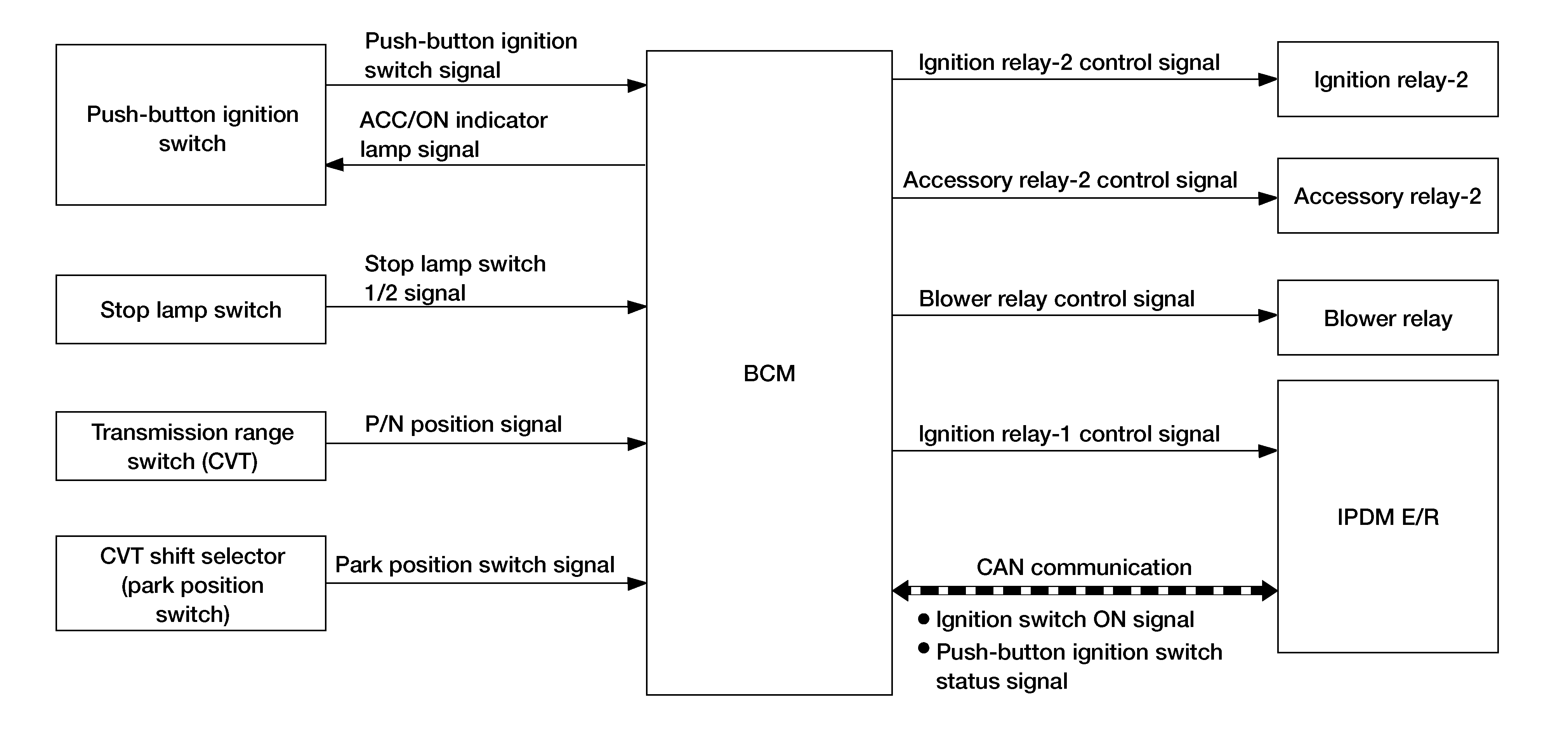

Fig 1: Power Distribution System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
