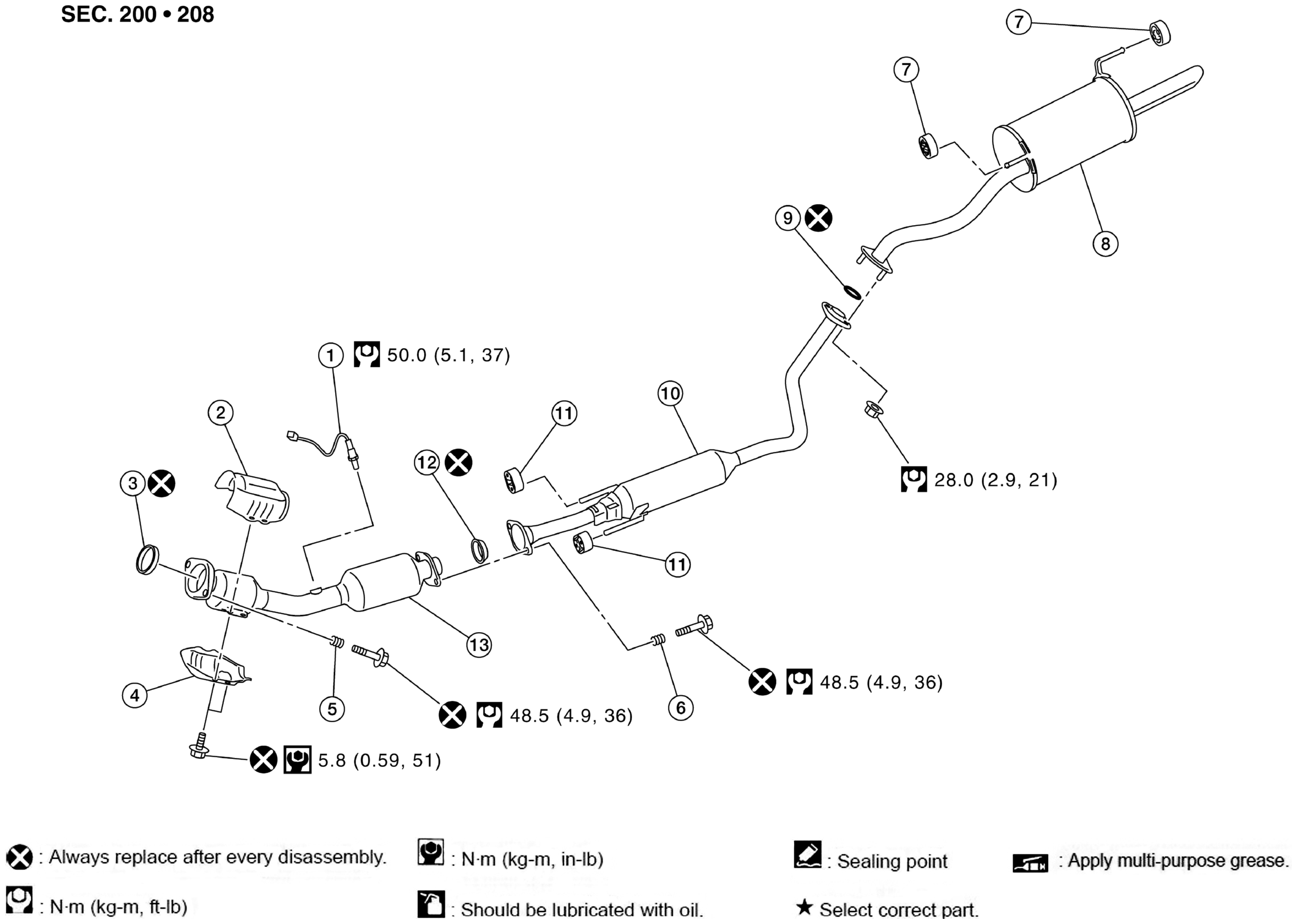

Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Heated oxygen sensor 2 |
2. |
Catalyst cover (upper) |
3. |
Seal bearing |
| 4. |
Catalyst cover (lower) |
5. |
Spring |
6. |
Spring |
| 7. |
Mounting rubber |
8. |
Main muffler |
9. |
Ring gasket |
| 10. |
Center muffler |
11. |
Mounting rubber |
12. |
Seal bearing |
| 13. |
Exhaust front tube |
|
|
|
|
