Disassembly And Assembly: Notes

Fuel Level Sender Unit

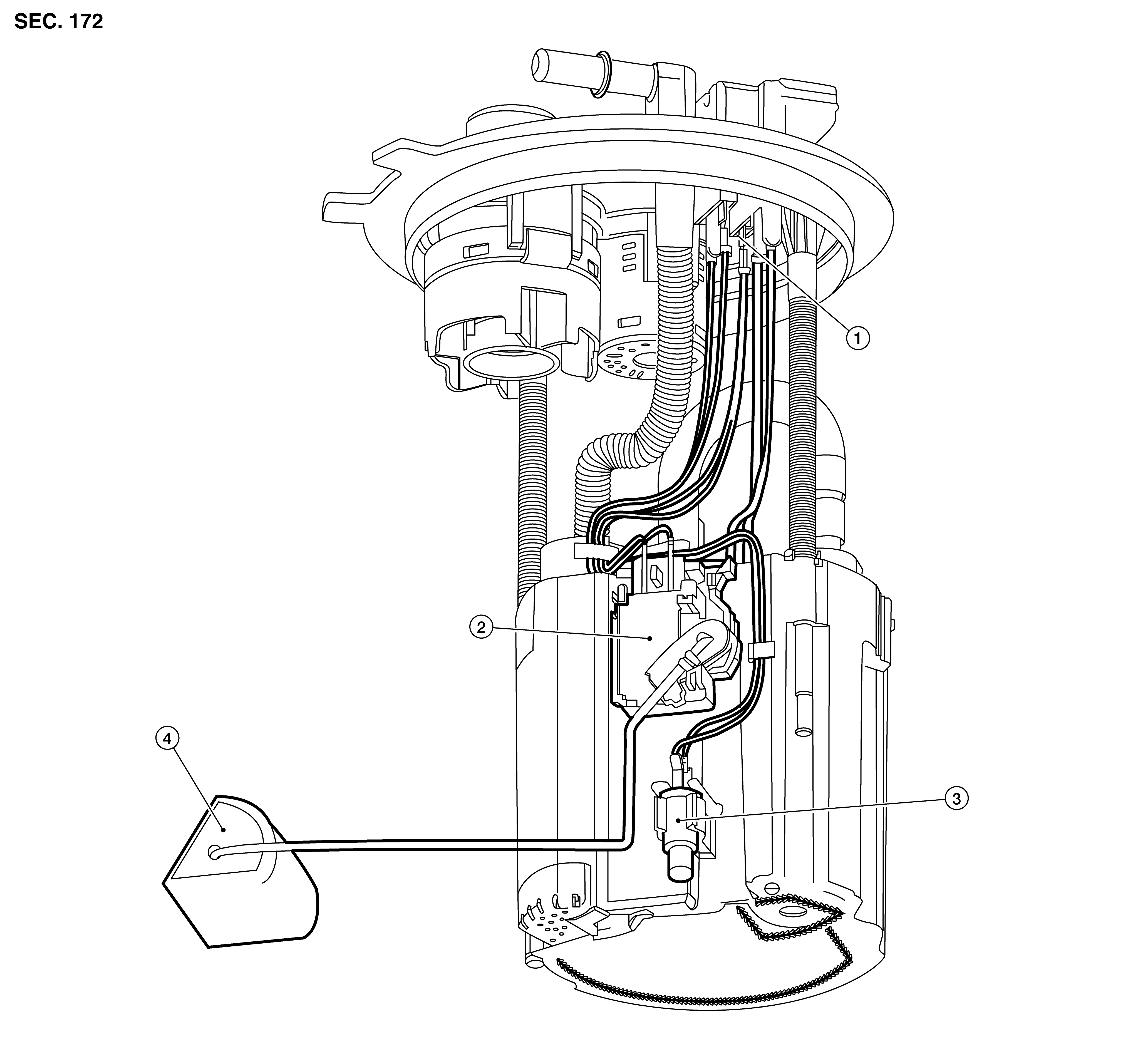

Fig 1: View Of Fuel Level Sensor Unit

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Harness connectors	2.	Level sending unit module	3.	Fuel temperature sensor
4.	Float arm assembly
