Component Parts Location

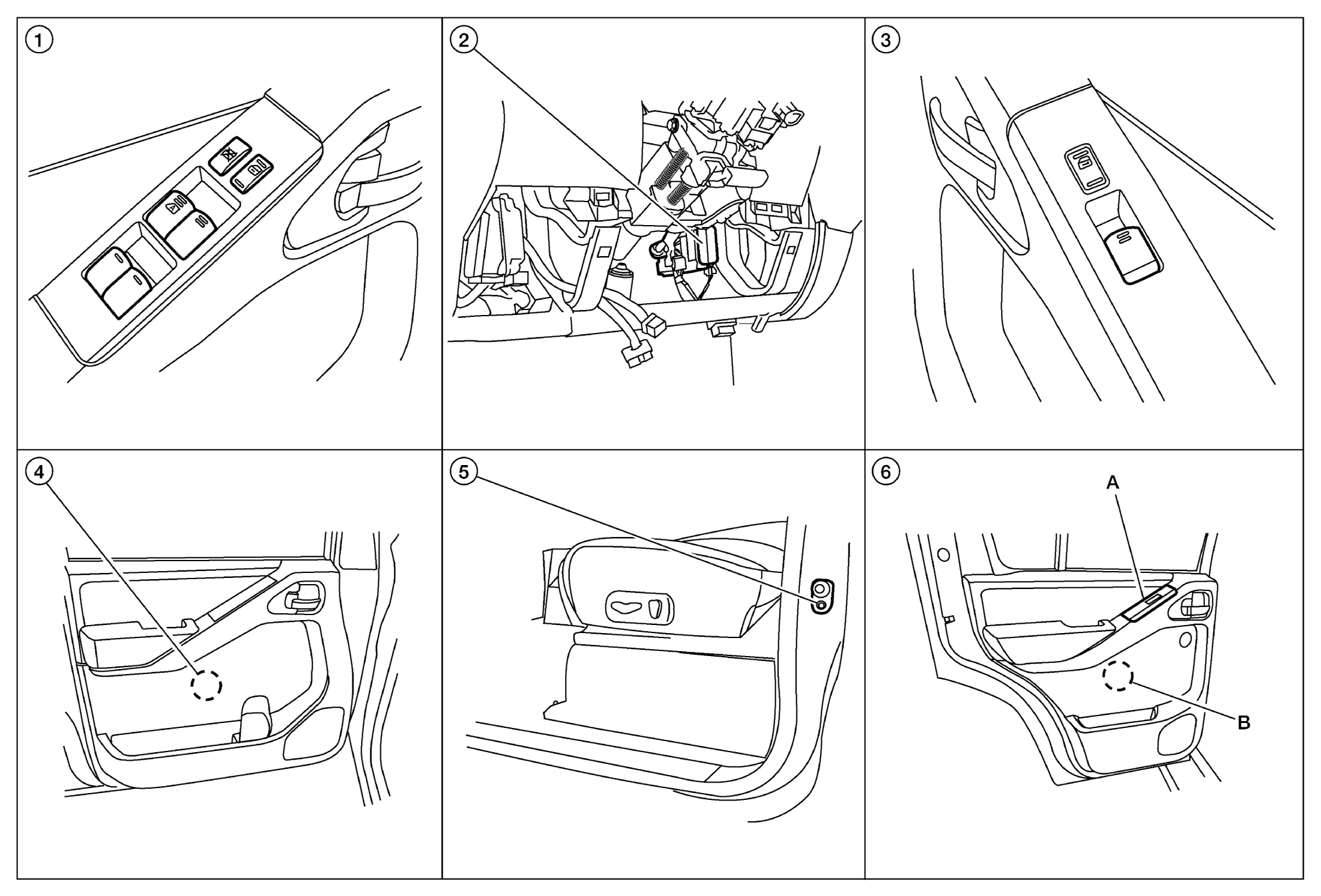

Fig 1: Power Window System Components Location

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Main Power Window And Door Lock/Unlock Switch D7	2.	BCM M18, M19, M20 (View With Lower Instrument Panel LH Removed)	3.	Power Window And Door Lock/Unlock Switch RH D105
4.	Front Power Window Motor LH D9, RH D104	5.	Front Door Switch LH B8, RH B108	6.	A. Rear Power Window Switch LH D203, RH D303 B. Rear Power Window Motor LH D204, RH D304
