System Description
›
System
›
NISSAN Vehicle Immobilizer System-NATS
›
System Diagram
System Diagram

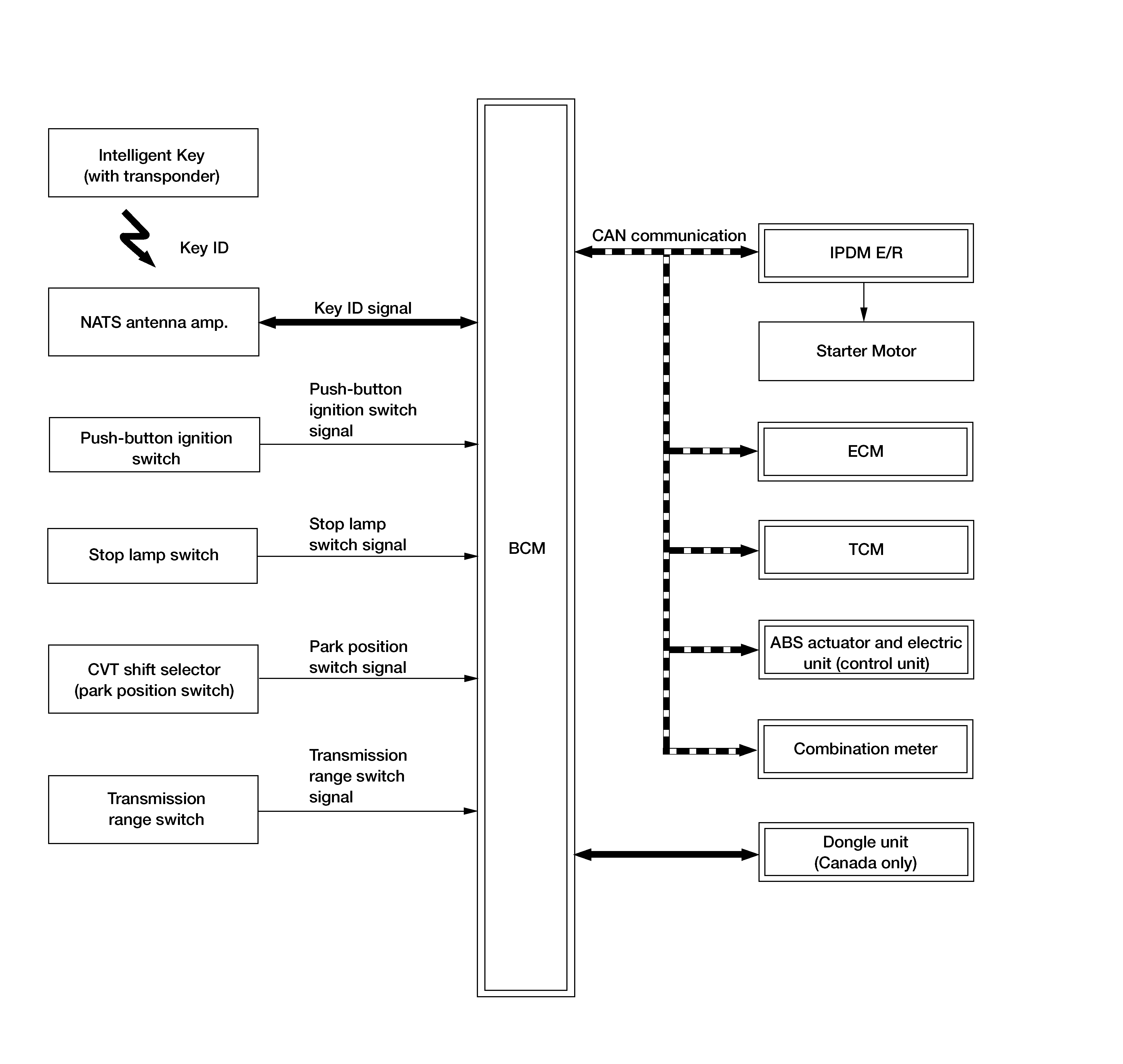

Fig 1: Nissan Vehicle Immobilizer System - NATS System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
