Exploded View - Front Wheel Sensor

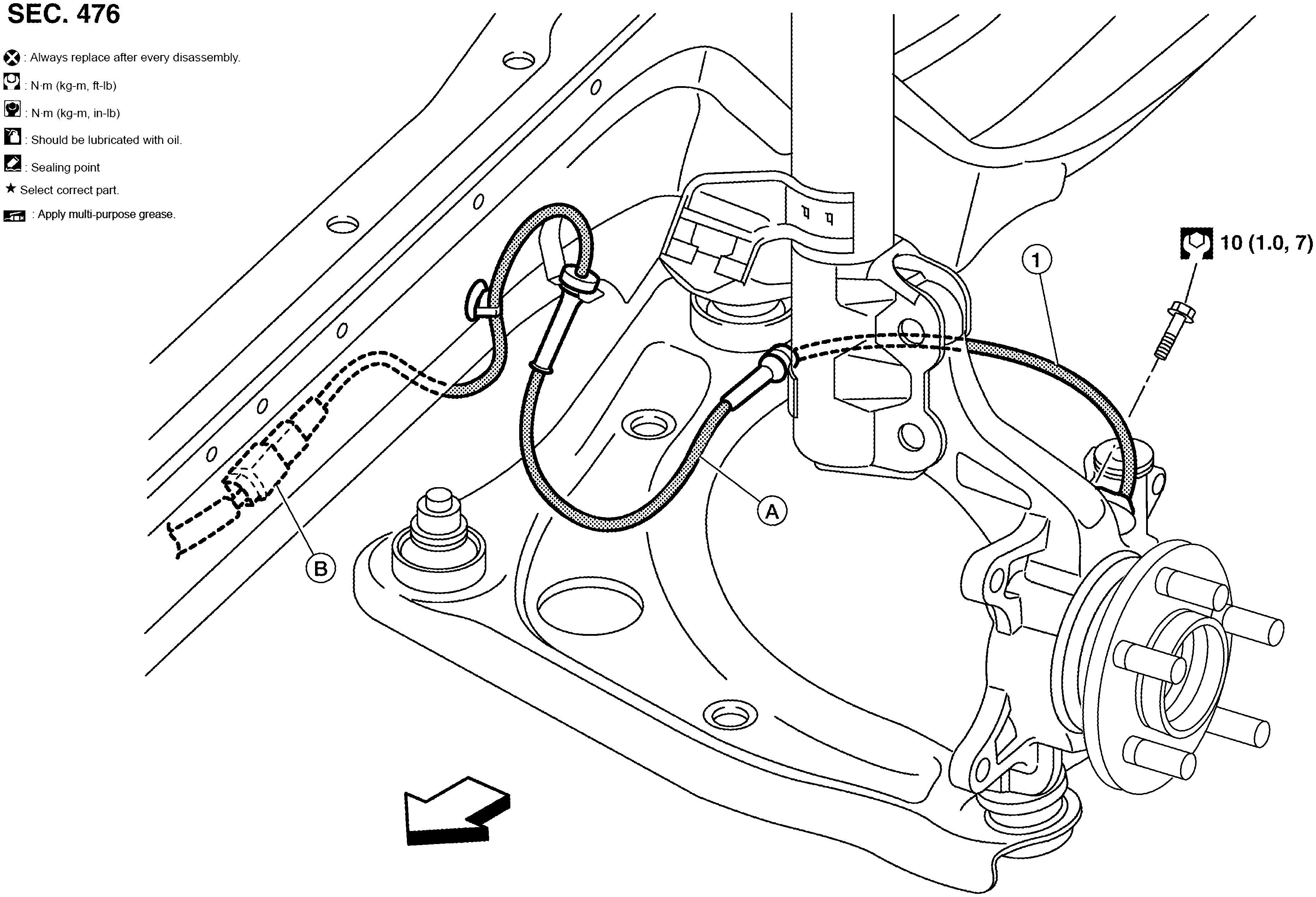

Fig 1: Front Wheel Sensor With Torque Specifications
GNSAWFIA0928ZZ-928ARROWCourtesy of NISSAN NORTH AMERICA, INC.
1. Front wheel sensor A. Color line (slant line) B. Front wheel sensor harness connector
ARROW Front
