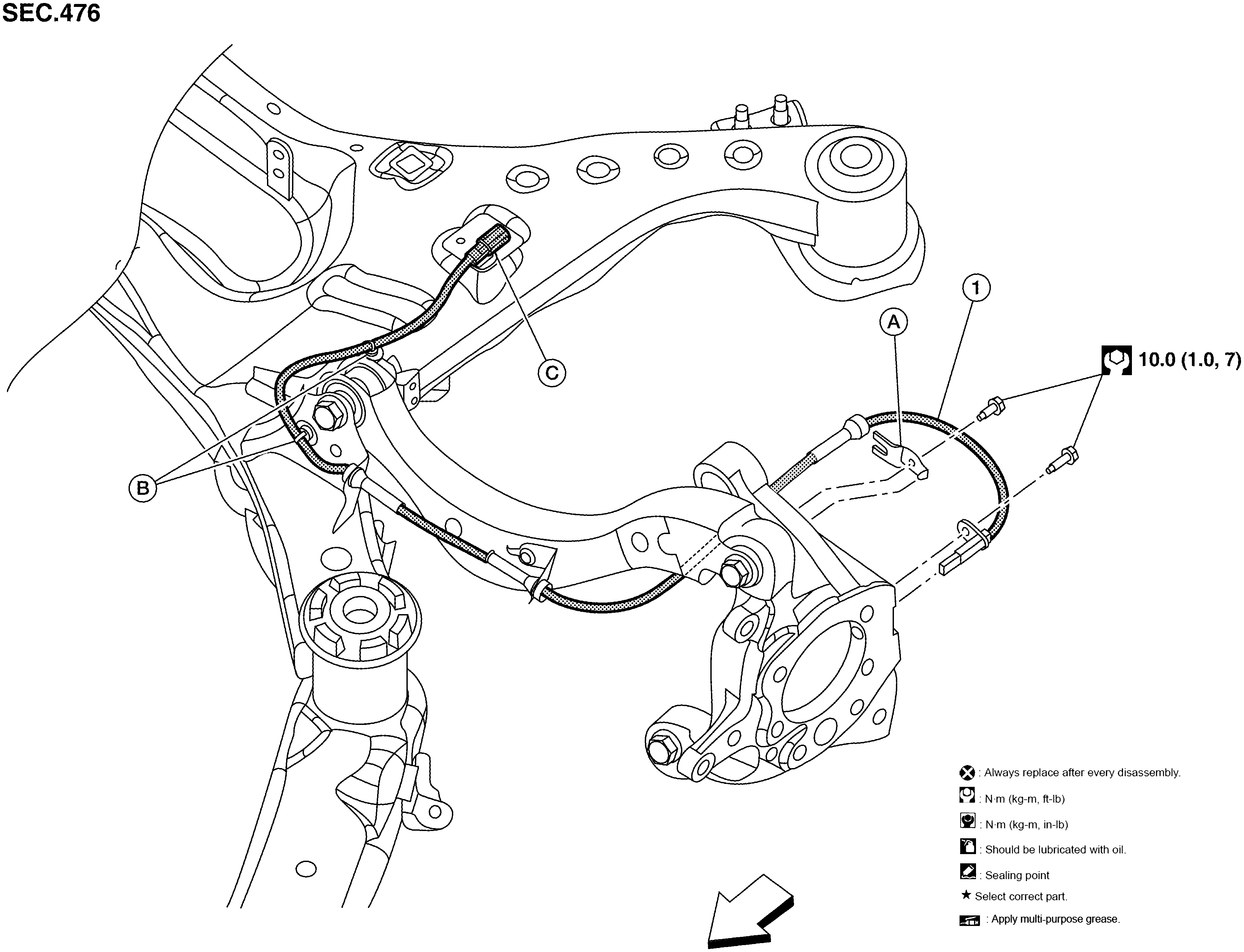

Exploded View - Rear Wheel Sensor

Fig 1: Rear Wheel Sensor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear wheel sensor	A.	Rear wheel sensor bracket	B.	Clip
C.	Rear wheel sensor harness connector		Front
