System Description
›
System
›
System Diagram
System Diagram

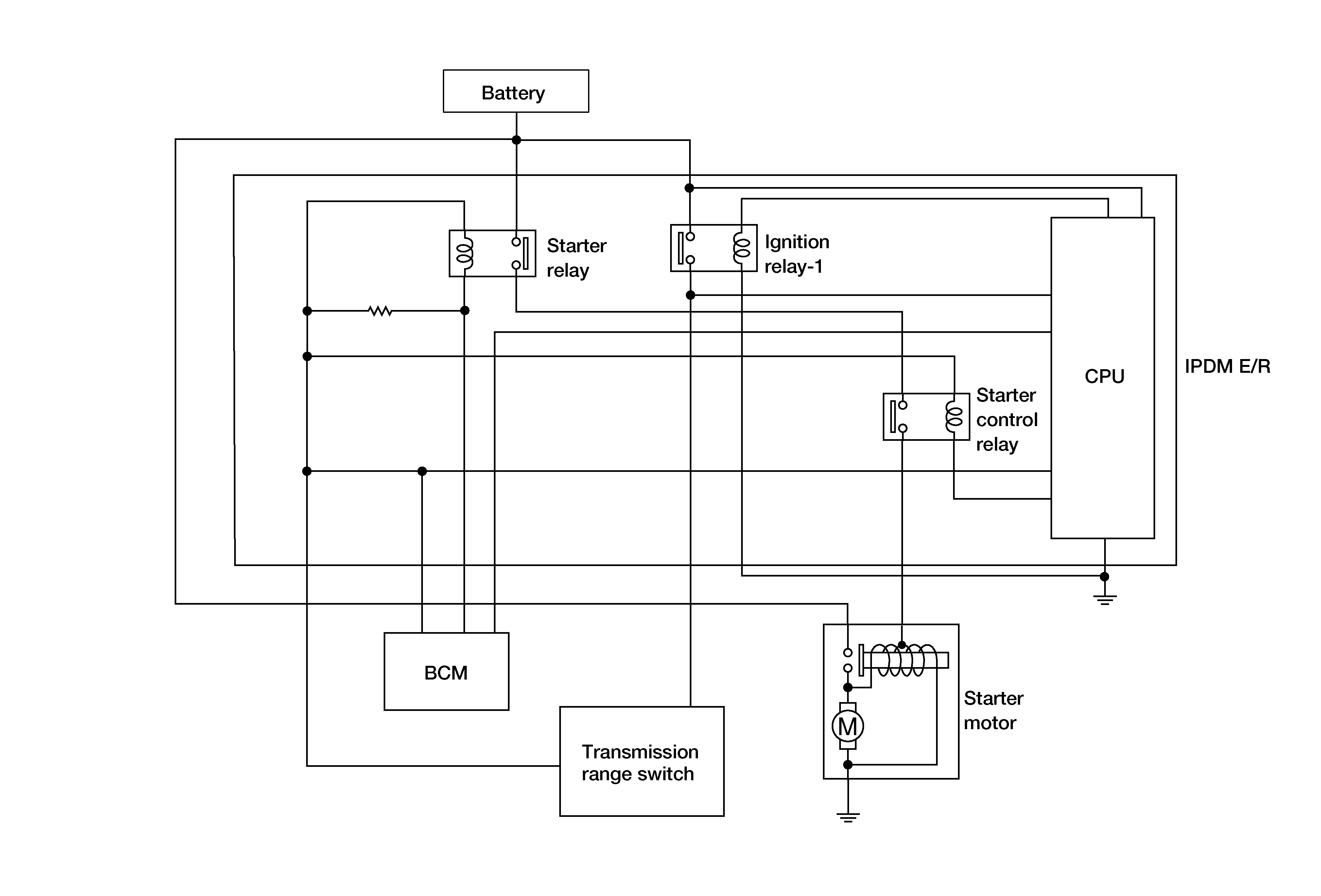

Fig 1: Starting System Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
