Fuel Level Sensor Unit
›
Disassembly And Assembly
›
Notes
Disassembly And Assembly: Notes
Fuel Level Sensor Unit

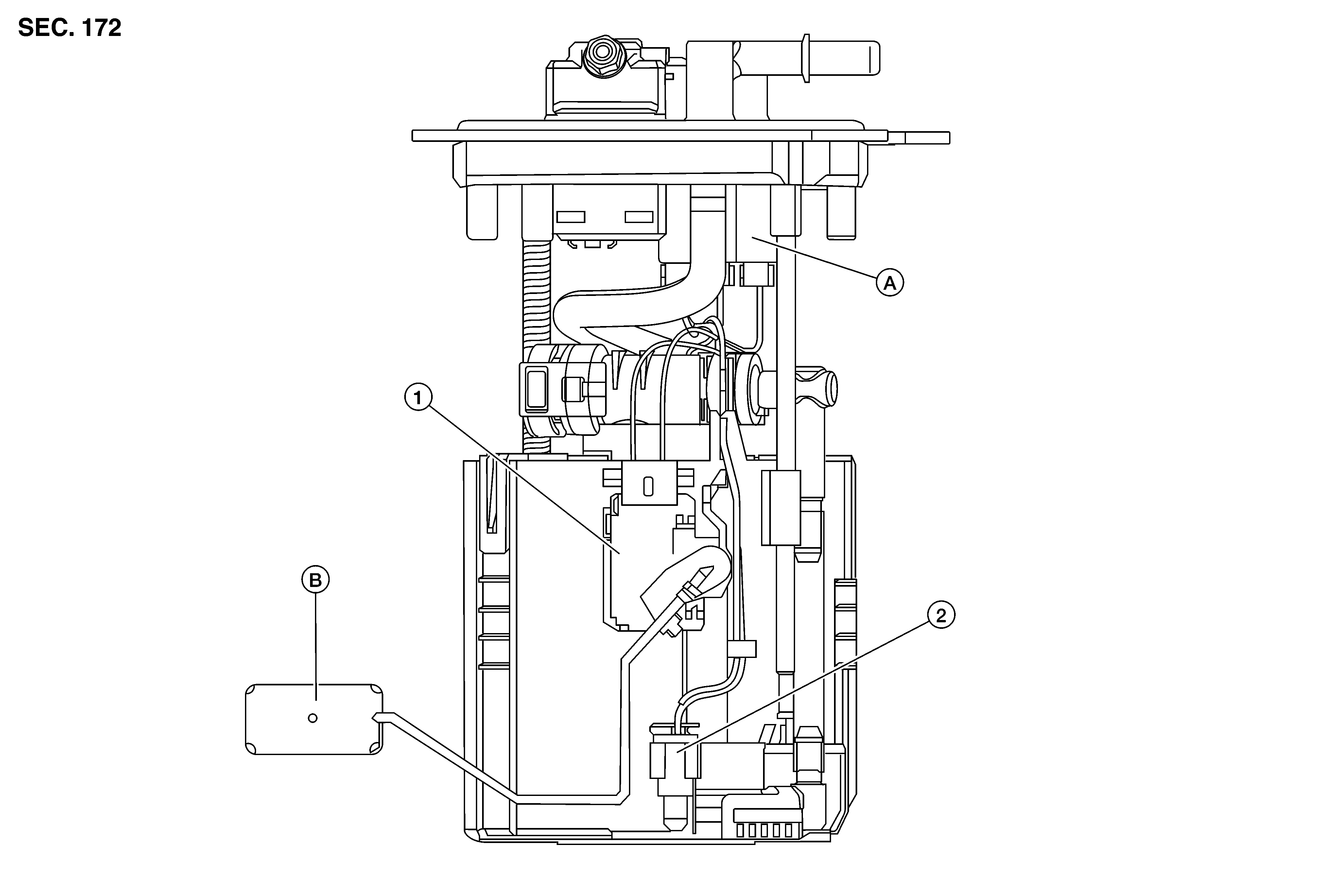

Fig 1: Fuel level Sensor Unit Components
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Level sensor unit module
2.
Fuel temperature sensor
A.
Harness connector
B.
Float arm assembly
