Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2016 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

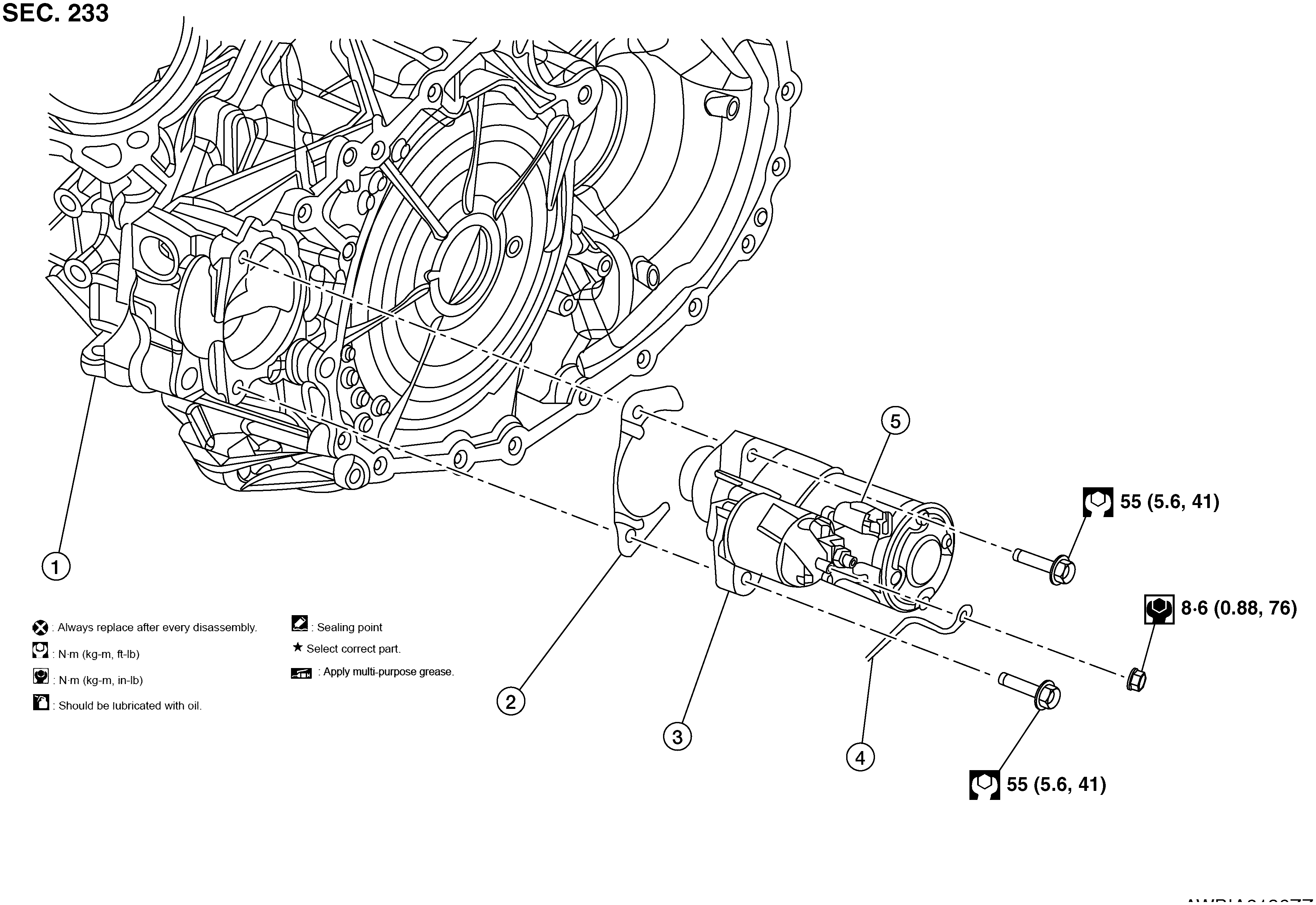

Fig 1: Starter Motor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Cylinder Block	2.	Shim	3.	Starter
4.	"B" Terminal Harness	5.	"S" Connector
