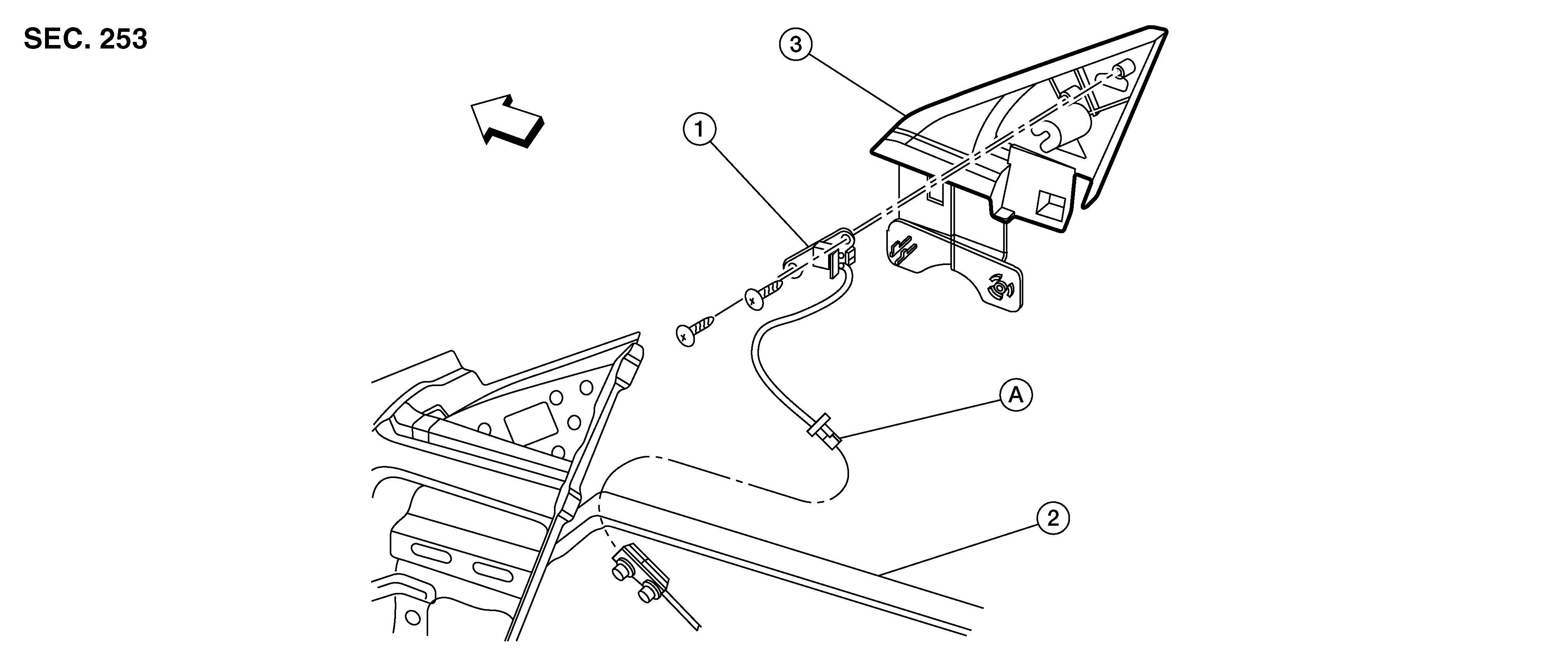

Exploded View
WARNING: This page is about a different car, the 2017 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Blind spot warning indicator |
2. |
Front door |
3. |
Door mirror corner finisher |
| A. |
Blind spot warning indicator harness connector |
 |
Front |
|
|
