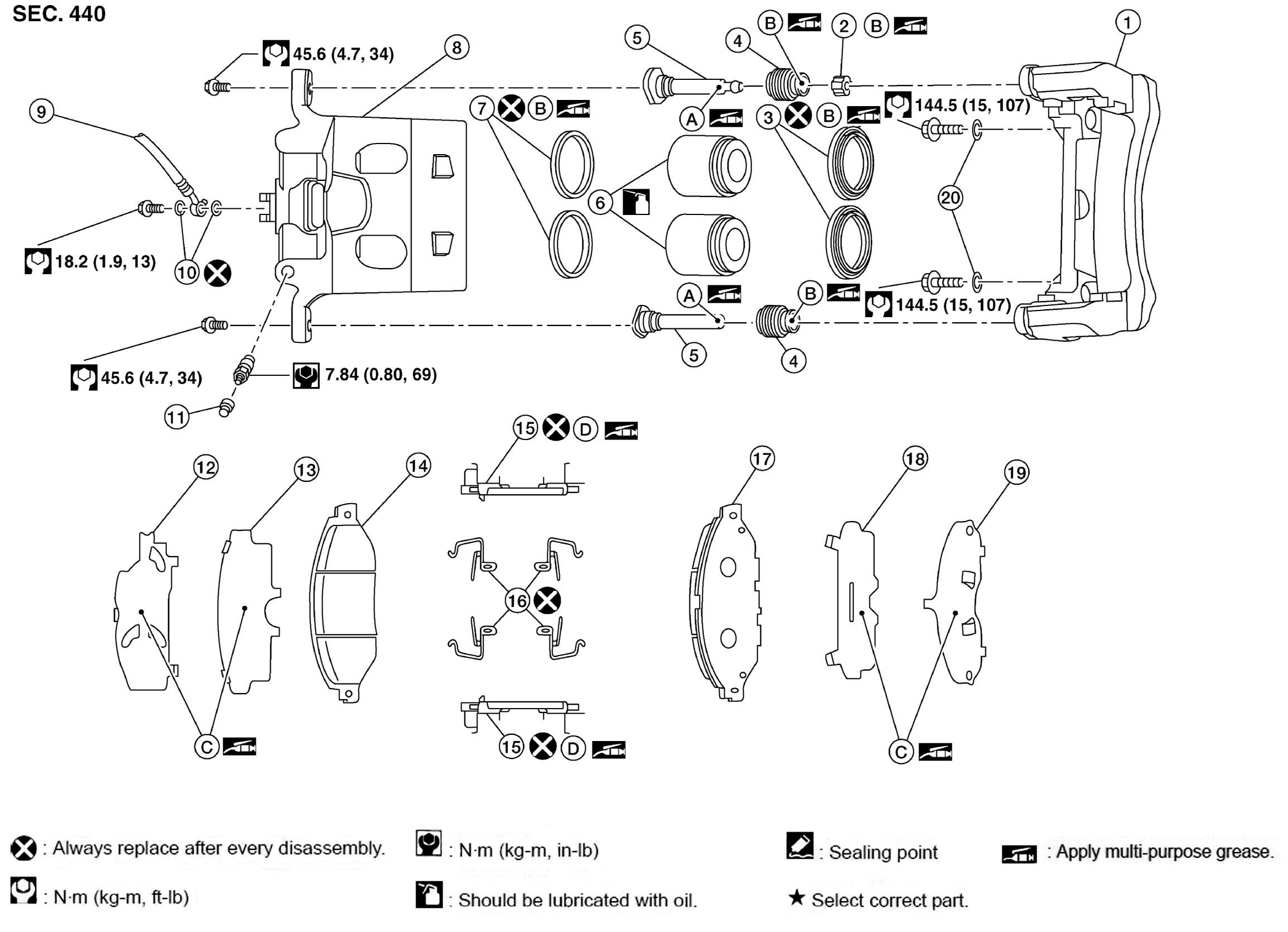

Exploded View
WARNING: This page is about a different car, the 2017 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Torque member | 2. | Bushing | 3. | Piston boot |
| 4. | Slide pin boot | 5. | Slide pin | 6. | Piston |
| 7. | Piston seal | 8. | Brake caliper body | 9. | Brake hose |
| 10. | Copper sealing washers | 11. | Bleeder cap | 12. | Inner shim cover |
| 13. | Inner shim | 14. | Inner pad | 15. | Pad retainer |
| 16. | Anti-rattle clip | 17. | Outer pad | 18. | Outer shim |
| 19. | Outer shim cover | 20. | Washers | A. | Nigrove Rx-2 |
| B. | Rubber grease | C. | Molykote AS-880N | D. | Molykote 7439 |
