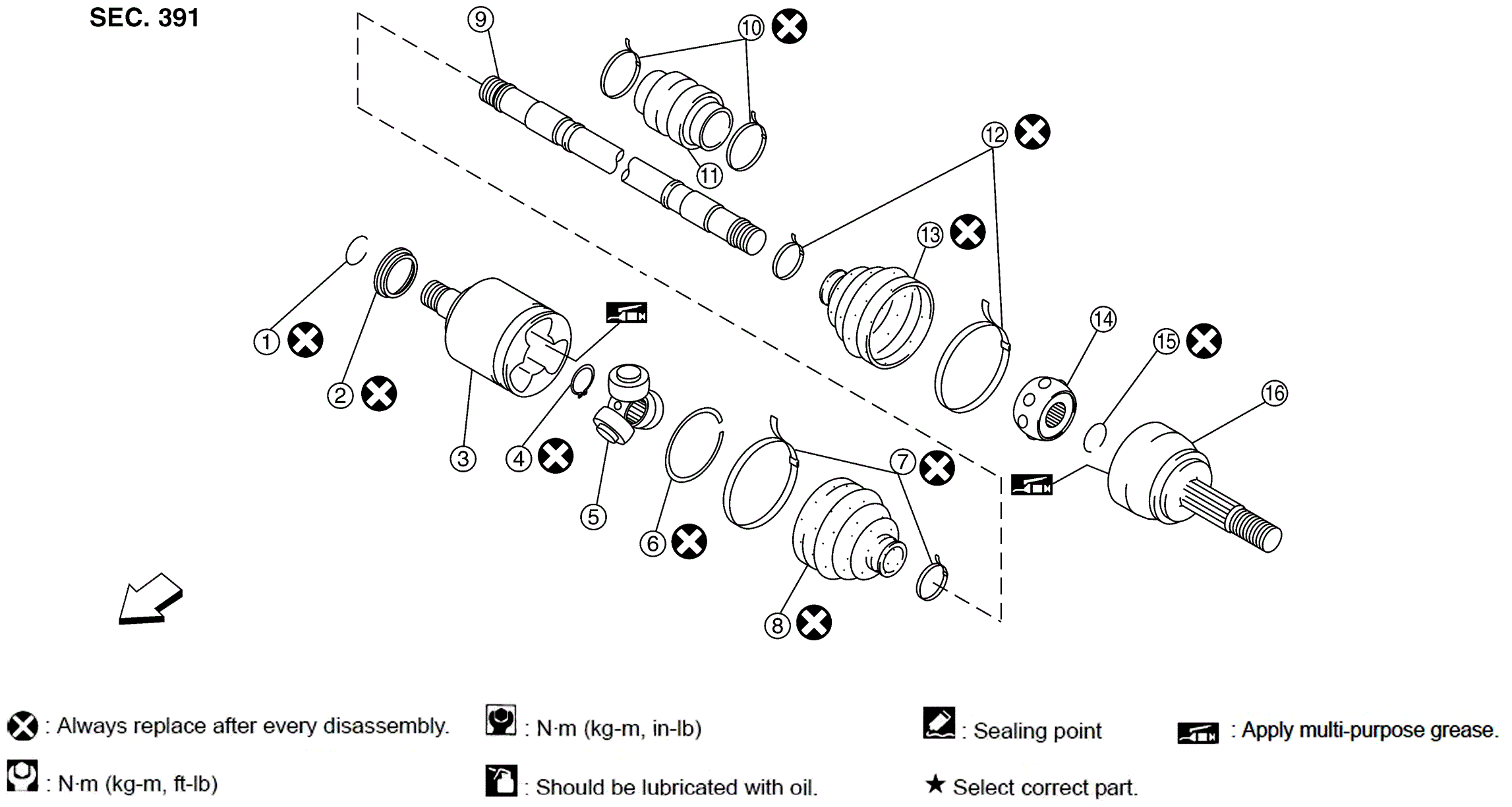

Exploded View: LH
WARNING: This page is about a different car, the 2017 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
| 1. |
Circlip |
2. |
Dust shield |
3. |
Slide joint housing |
| 4. |
Snap ring |
5. |
Spider assembly |
6. |
Stopper ring |
| 7. |
Boot band |
8. |
Boot |
9. |
Shaft |
| 10. |
Damper band |
11. |
Damper |
12. |
Boot band |
| 13. |
Boot |
14. |
Ball cage / Steel ball / Inner race assembly |
15. |
Circlip |
| 16. |
Joint sub-assembly |
 |
Front |
|
|
