Section 681 (Front Axle)
›
Removal And Installation
›
Front Wheel Hub
›
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2017 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

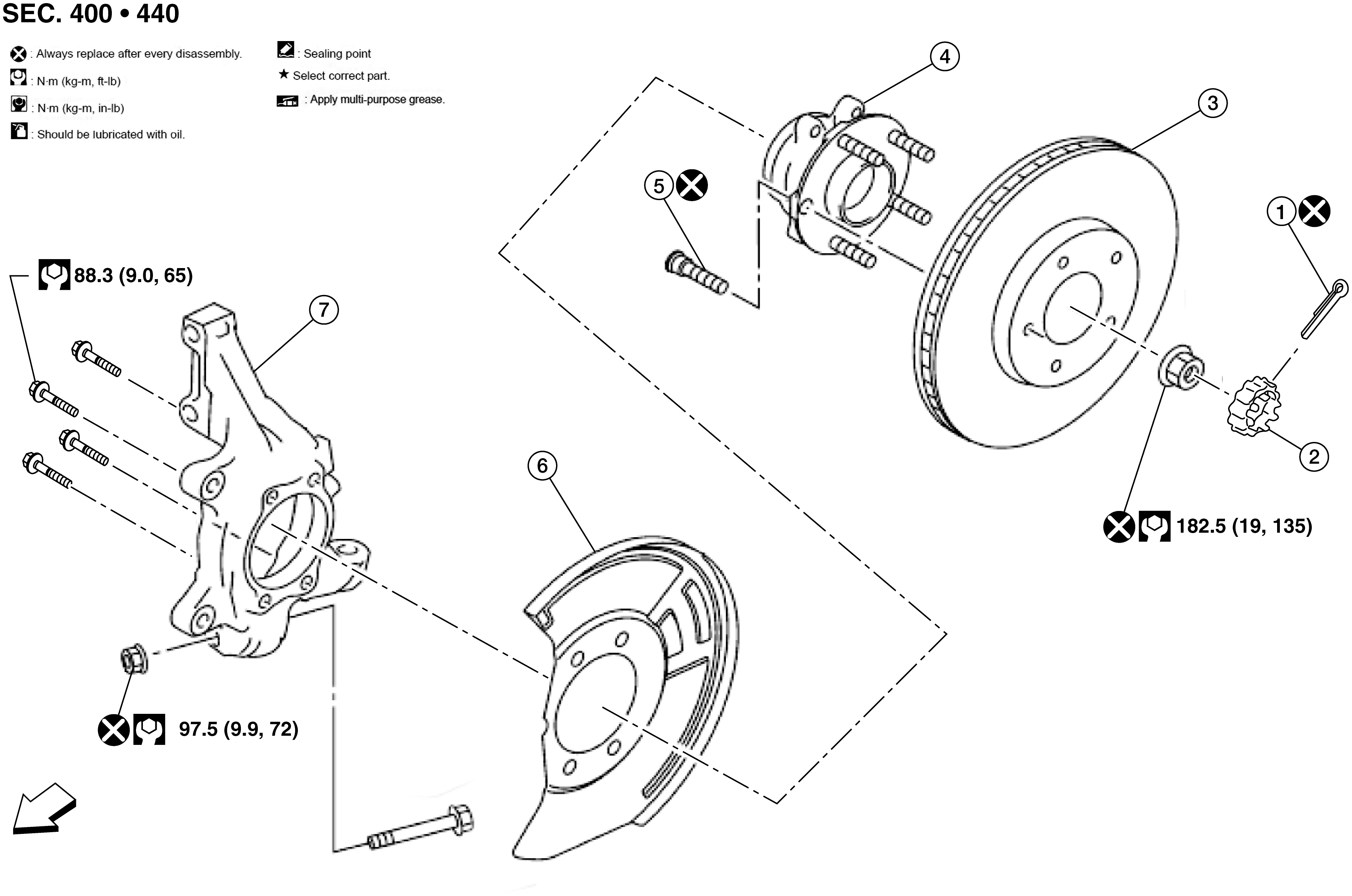

Fig 1: Front Wheel Hub With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Cotter pin
2.
Nut retainer
3.
Disc brake rotor
4.
Wheel hub and bearing
5.
Wheel stud
6.
Splash guard
7.
Steering knuckle
Front
